51 WALTER máquina utilizada para venda

longitudinal feed: X: 490 mm Vertical feed: Y: 320 mm cross travel: Z: 660 mm Swivel range: C: +/- 200 ° Control: HMC 500 WWM Walter lenght tool piece capture: A: 175 mm ISO 50 Max. rpm: A: 60 min/-1 centre height: 145 (190) mm max. workpiecediameter: 320 mm max. workpiece length: 320 (350) mm resolution: 0,0001 ° Resolution: 0,0001 mm Grinding spindle:: spindle diameter: 80 mm grinding wheel diameter: max. 200 mm Max. rpm: 0 - 7.000 min/-1 driving power - grinding spindle: 24 kW max. Torque: 6 Nm total power requirement: 35 kVA weight of the machine ca.: 4,65 t dimensions of the machine ca.: 3,6 x 2,5 x 2,95 m Documents: pallet loading station: CNC - Tool-Grinding-Machine WALTER - Helitronic Power Production - Optional for an additional charge: WALTER Heli ToolCheck (stock number 1039-9375) https://stiens.de/en/machines/offerdetails.html?m=1039-9375&s=WALTER%2 0Heli%20Toolcheck T ...

measuring range X-axis: 300 mm measuring range Y-axis: 290 mm measuring range Z-axis: 650 mm tool diameter: SK 50 mm Number of revolutions: 30 U/min max. workpiecediameter: 300 mm max. workpiece length: 500 mm max. workpiece weight: 40 kg accuracy +/-: 0,002 mm feeds:: Working speed: X/Y/Z: 80 mm/s dimensions of the machine ca.: 2,5 x 2,0 x 2,5 m weight of the machine ca.: 1,2 t total power requirement: 1 kVA Documents: Tool-Presetter WALTER - Heli Toolcheck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 500 mm table load: ? t table height: hor. 235 / Sph. vert. mm groove width: 18 mm total power requirement: - kW weight of the machine ca.: 0,270 t dimensions of the machine ca.: 800640235 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: - mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 400 mm table load: . t table height: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The technical data is provided by the manufacturer or operator and is therefore not binding for us. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, crane capacity 70 t More than 10,000 items of accessories for your workshop If you want to sell machines, production lines, or your business, then get in touch with us. You can find more offers on our website. Viewings are possible by arrangement. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: . mm grinding width: . mm workpiece height: . mm Table: 870x130 mm total power requirement: 2,5 kW weight of the machine ca.: 0,8 t dimensions of the machine ca.: 2x1x2 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: 100 mm weight of the machine ca.: 30 kg dimensions: 300 x 250 x 400 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

1 peça de cabeça de faca de plano 210 mm 12 Corte 1 peça de canto fraeser WALTER 200 mm, F2010 12 corte Further: Diverse crankshaft fraeser GFM

2 feridas de disco WALTER 125 mm, F2052 1 stueck prism fraeser Walter F2052-460 170,6 / 171,2 2 peça discfreser WALTER 142 mm, F252-925

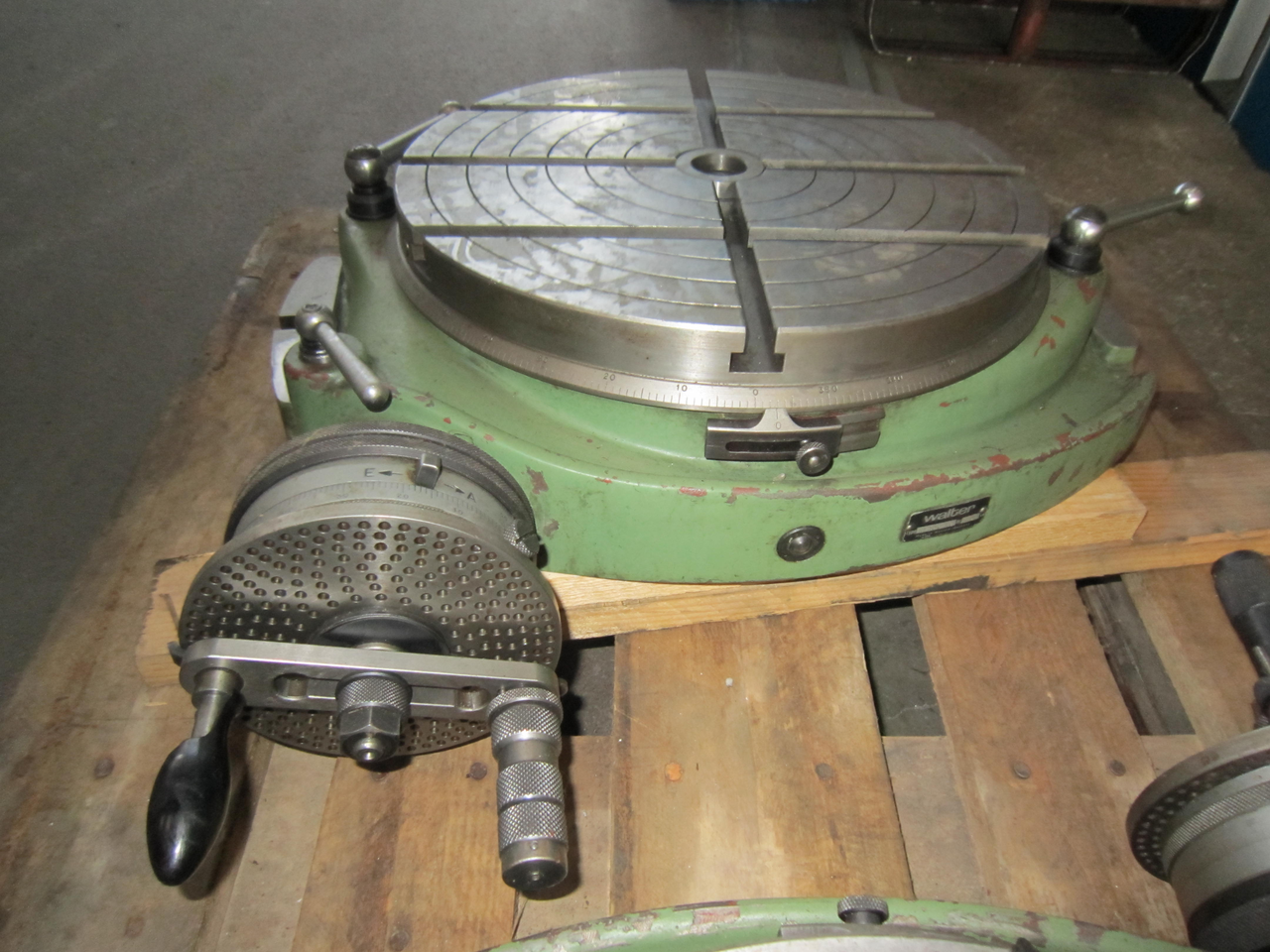

WALTER RI 400 TG ist ein Rundtisch, ausgelegt für präzise Bearbeitung mit hoher Genauigkeit und zuverlässiger Ausführung. Wichtige Arbeitskapazität: Durchmesser 400 mm. Weitere technische Spezifikationen sind in den vorliegenden Daten nicht angegeben. Er ermöglicht enge Toleranzen und eignet sich für Anwendungen in der Automobilindustrie, Uhrmacherei, Werkzeugmaschinen, Luft- und Raumfahrt sowie Medizintechnik. Technische Daten ohne Gewähr

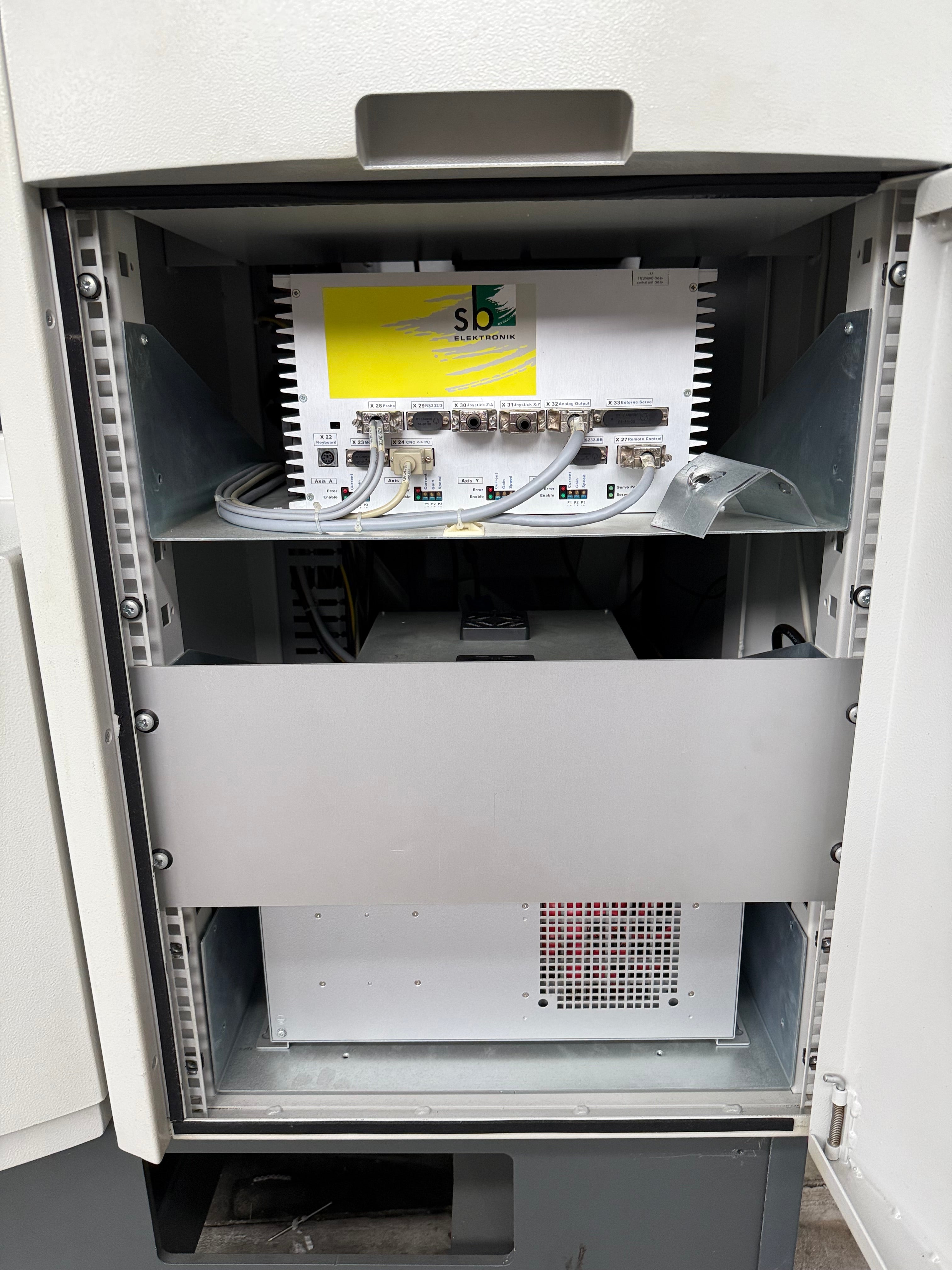

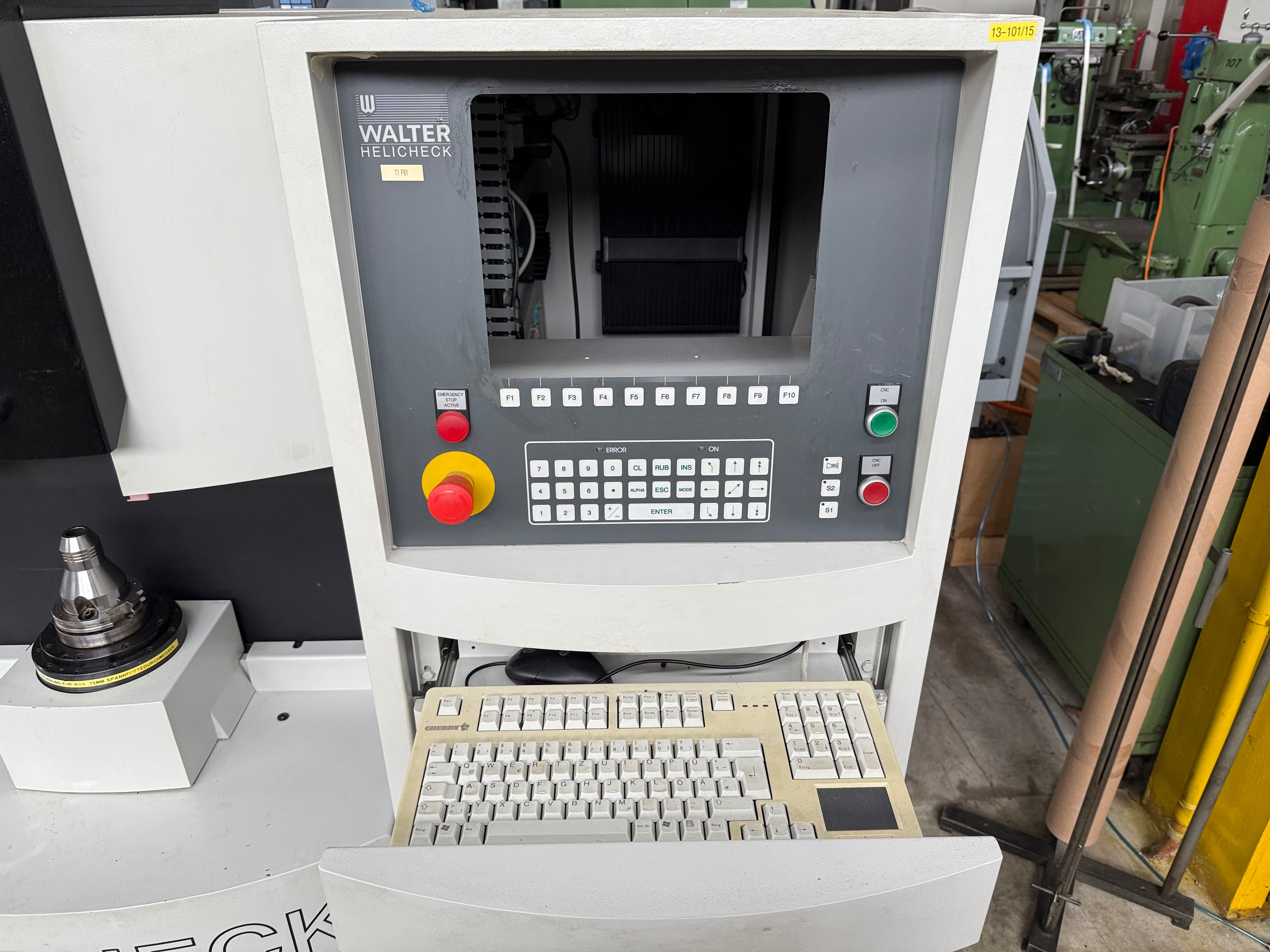

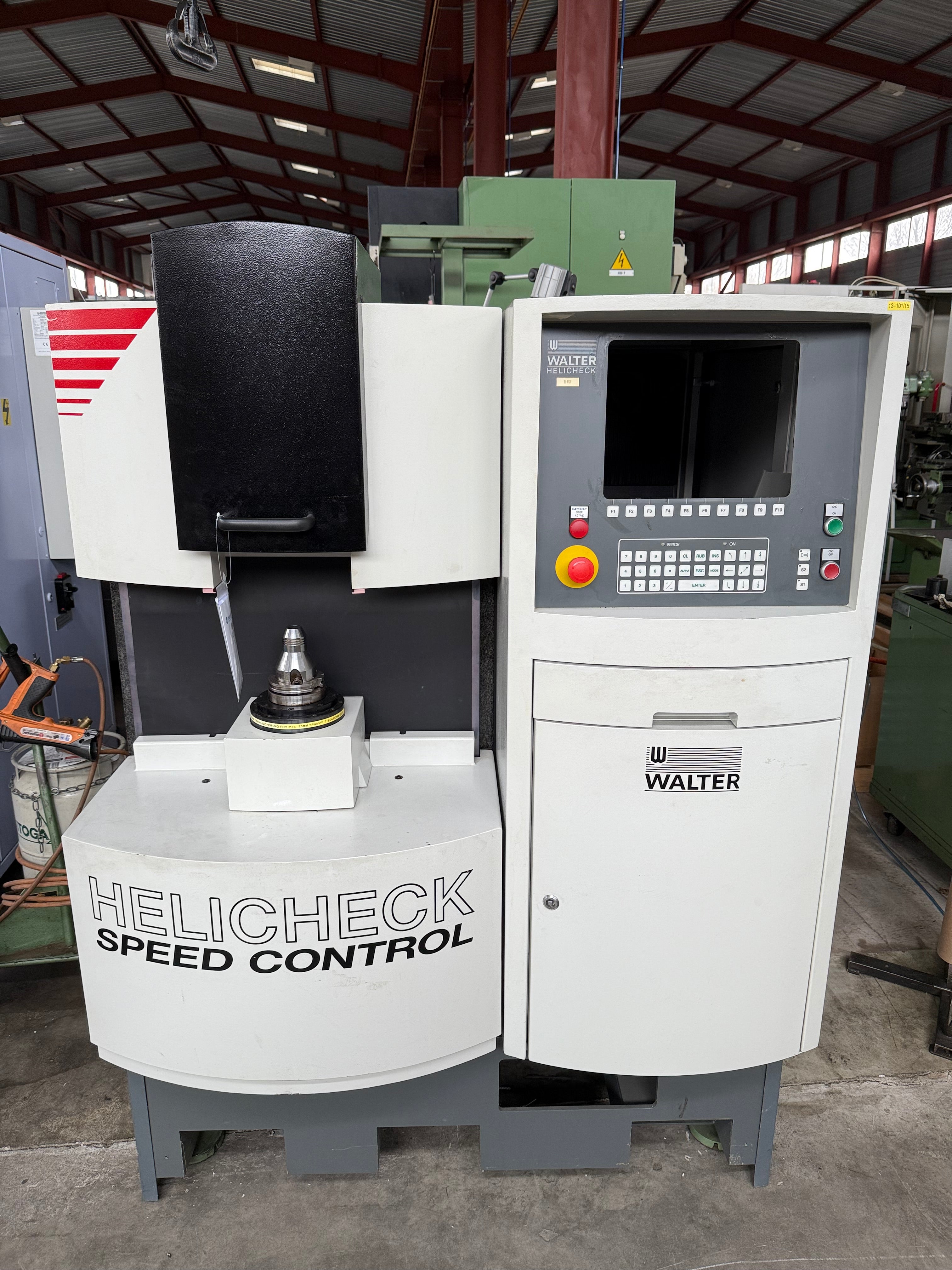

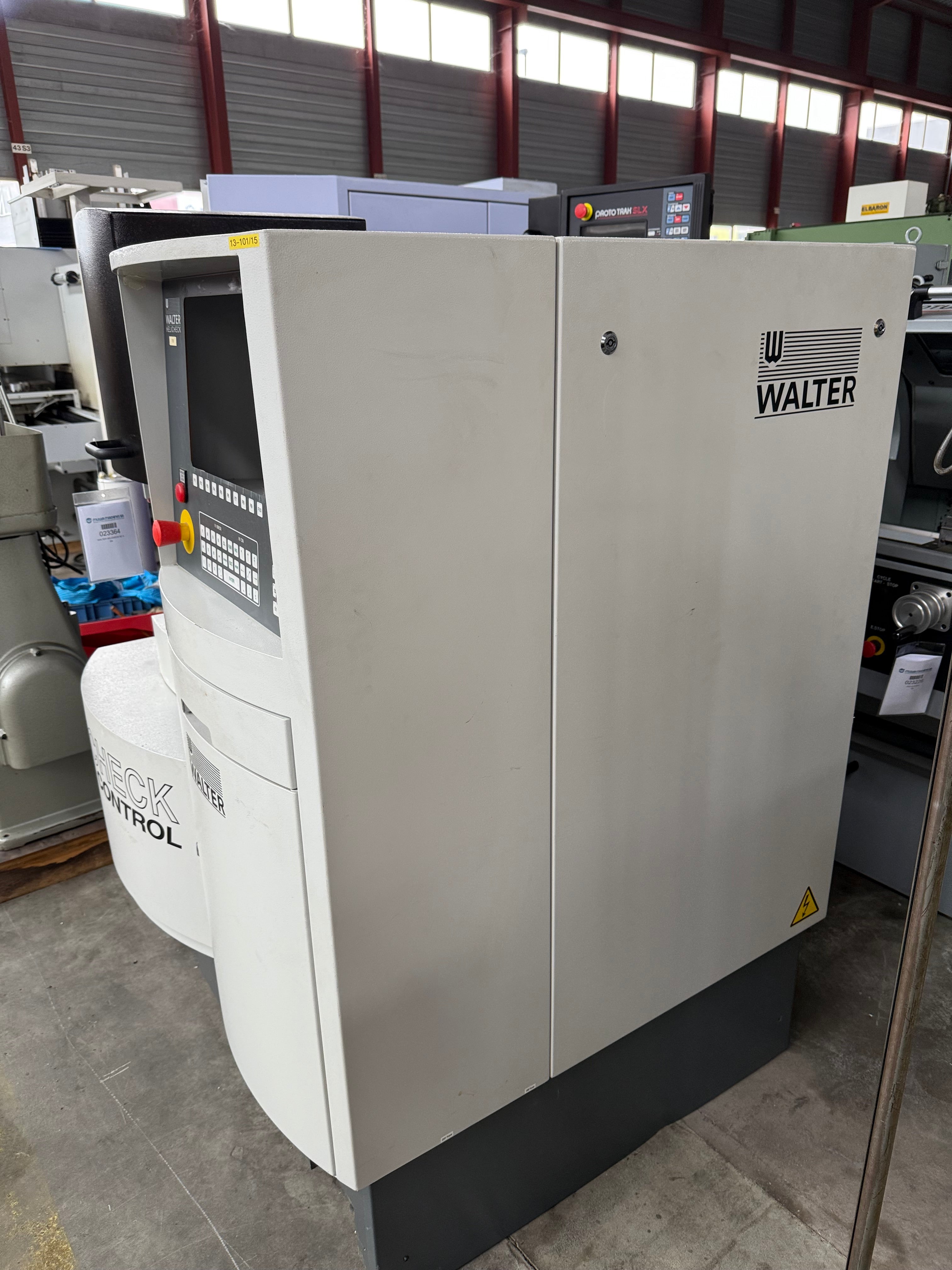

WALTER HELICKECK NC 4 ist eine CNC Messmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Verfahrwege: X 150 mm, Y 350 mm, Z 250 mm. Hauptdaten: Verfahrgeschwindigkeit 50 mm/s; Anschluss 50 Hz 3x 230 V; Gewicht ca. 3300 kg; Abmessungen L1350 x B1200 x H1750 mm. Erreicht enge Toleranzen; typische Einsatzbereiche: Automotive, Uhren/Feinmechanik, Werkzeugmaschinen, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

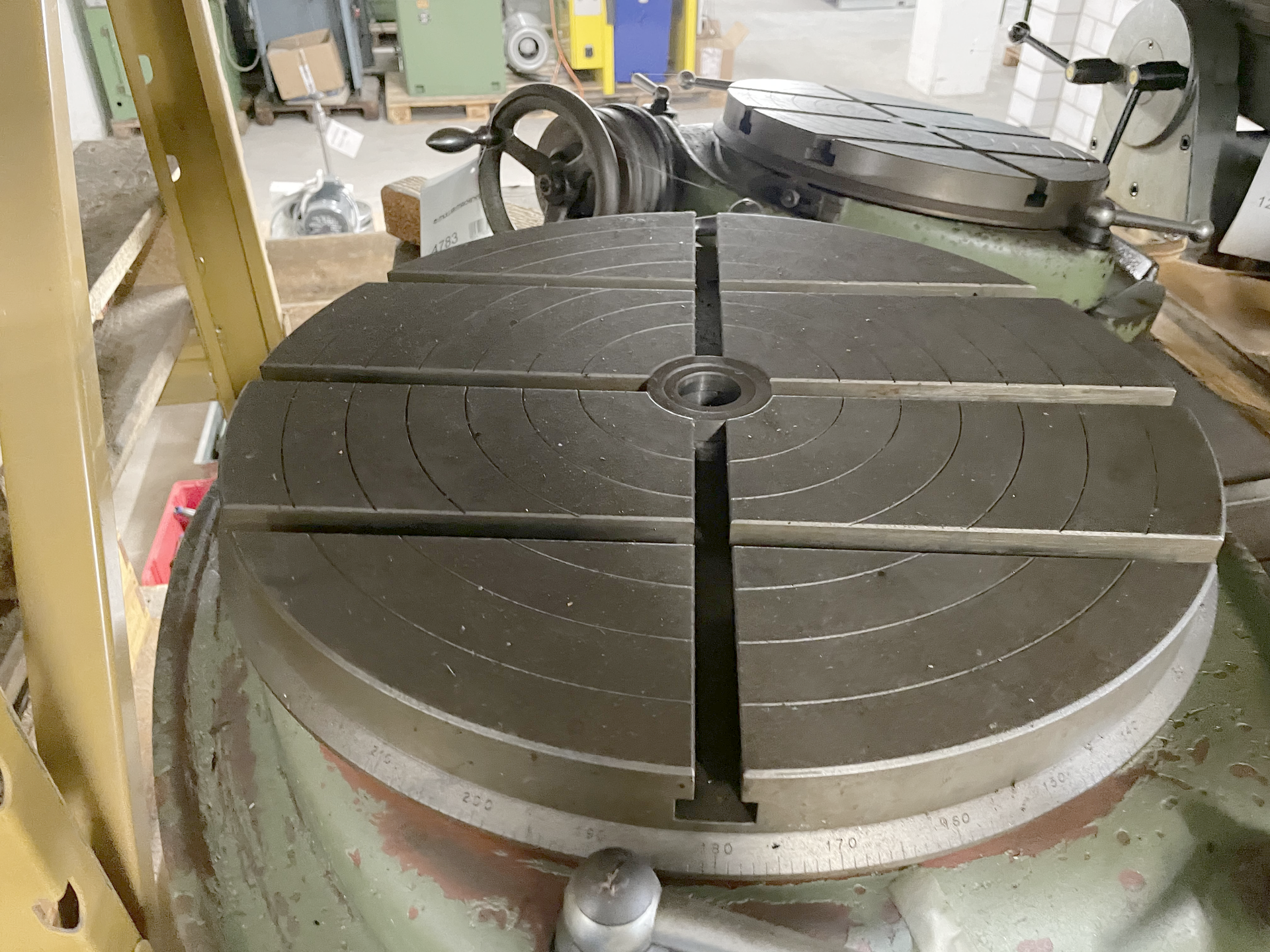

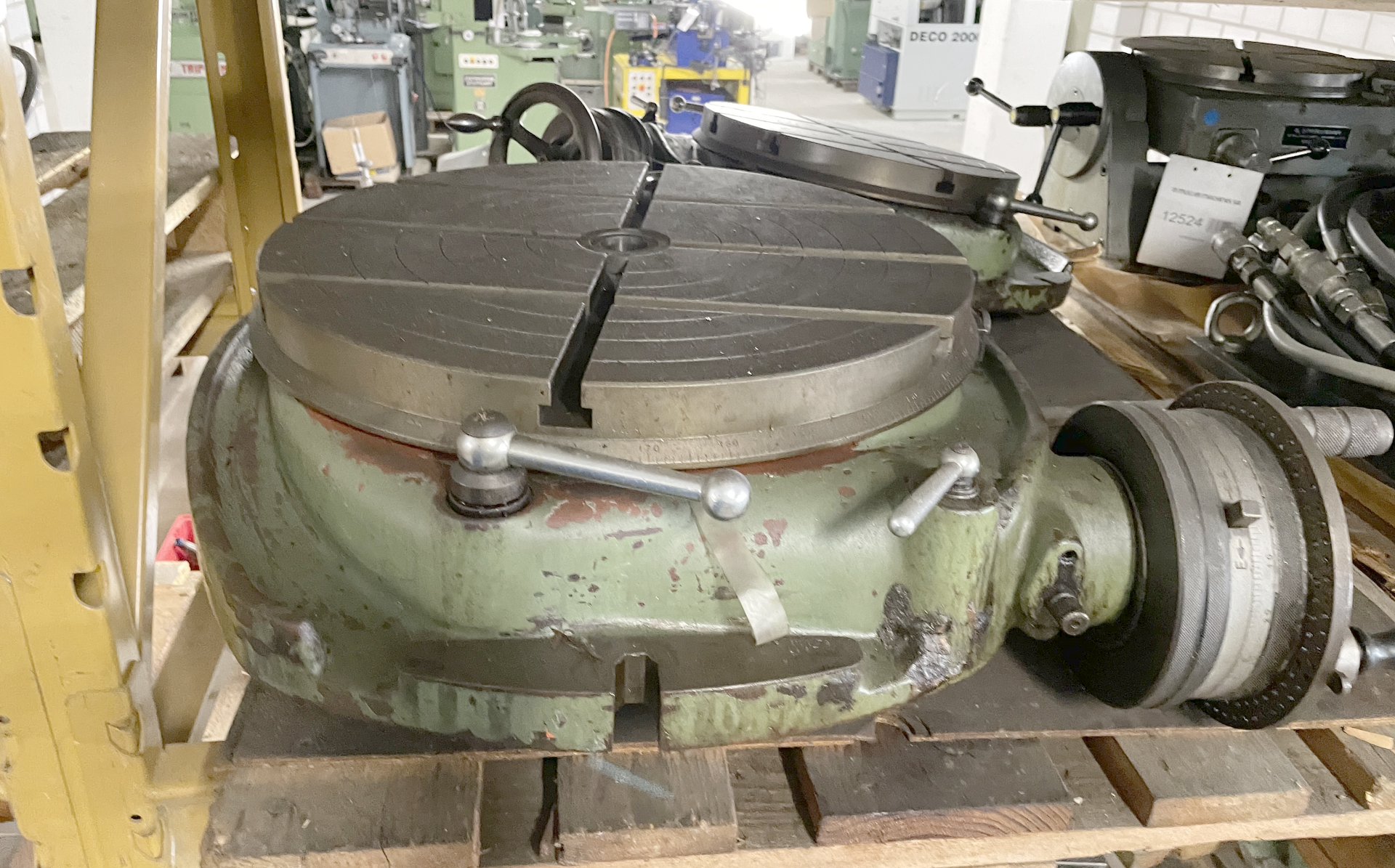

WALTER 480 ist ein Rundtisch, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitsdaten: Durchmesser 480 mm, 6 T-Nuten, T-Nutenbreite 16H7 mm. Technische Daten: Länge 800 mm, Breite 600 mm, Höhe 160 mm. Ermöglicht enge Toleranzen; typische Anwendungsbereiche: Automobil, Uhrenindustrie, Werkzeugmaschinen, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

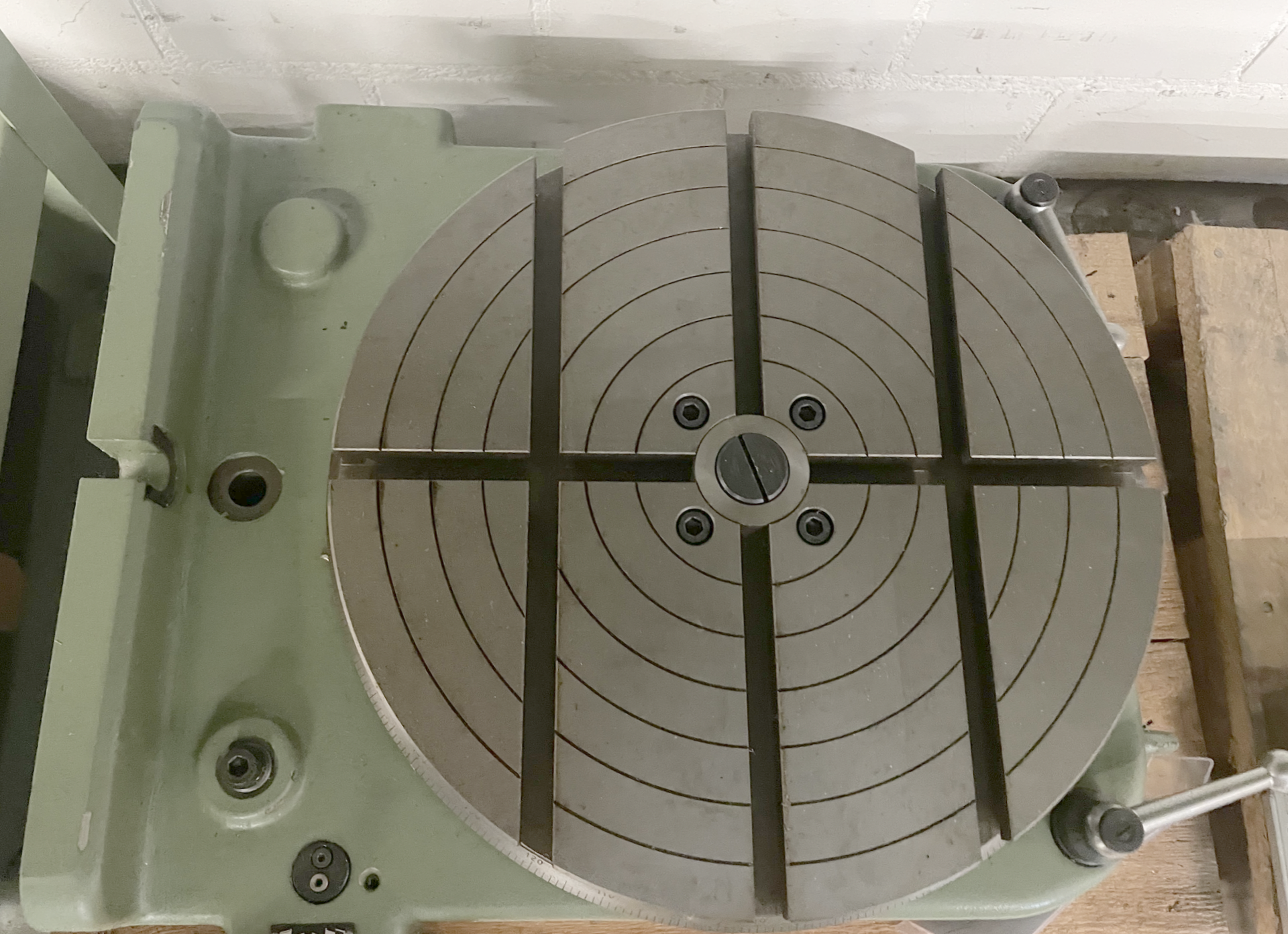

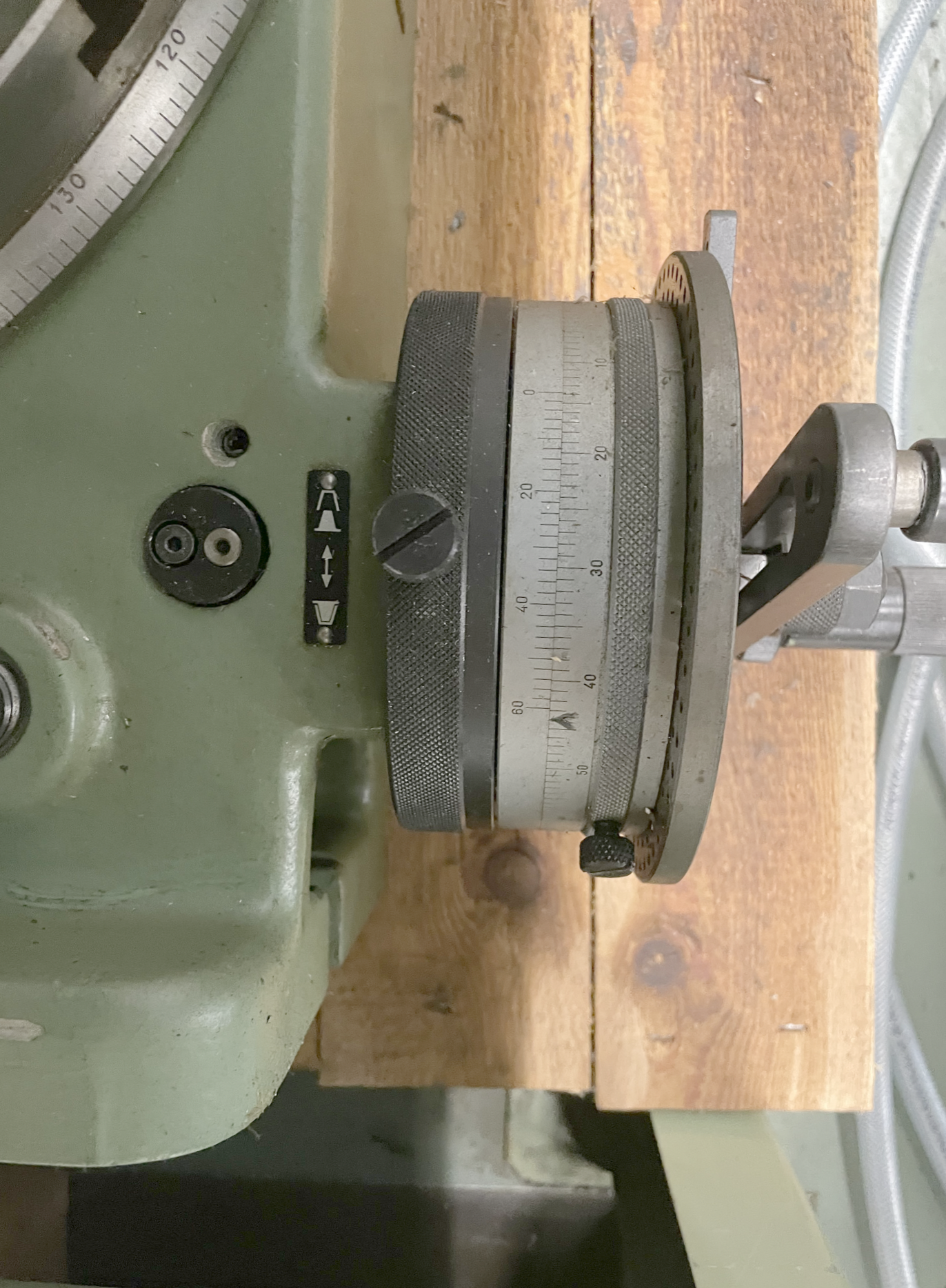

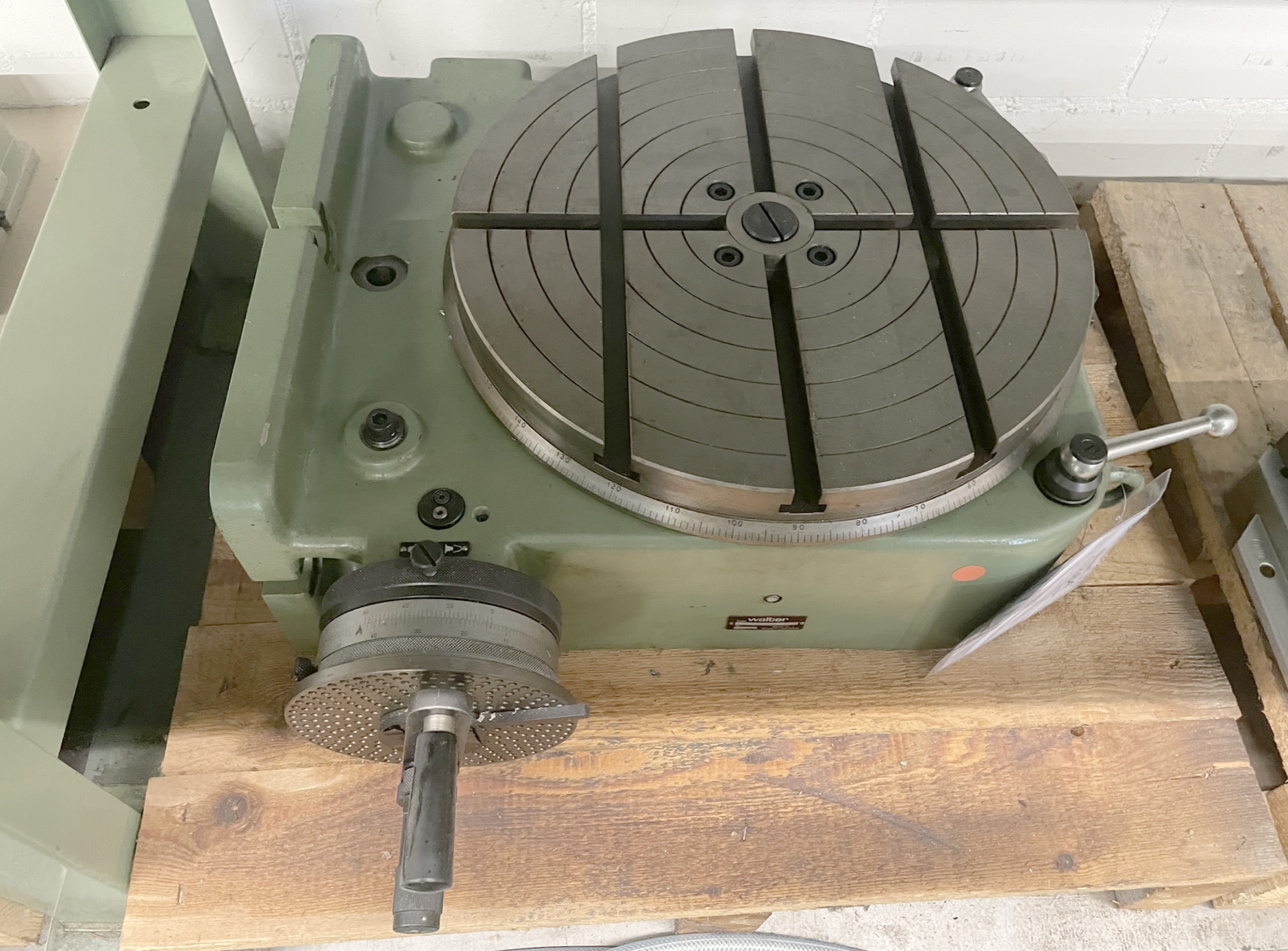

WALTER RTW 400 TGA ist ein Rundtisch mit hoher Präzision, Genauigkeit und Zuverlässigkeit. Aufspannfläche Durchmesser 400 mm; 6 T-Nuten, T-Nutenbreite 14H7 mm. Technische Daten: Maschinengewicht ca. 154 kg; Abmessungen L514×B550×H310 mm. Entwickelt für enge Toleranzen, geeignet für Automotive, Luftfahrt, Werkzeugmaschinen, Medizintechnik und Uhrenindustrie. Technische Daten ohne Gewähr

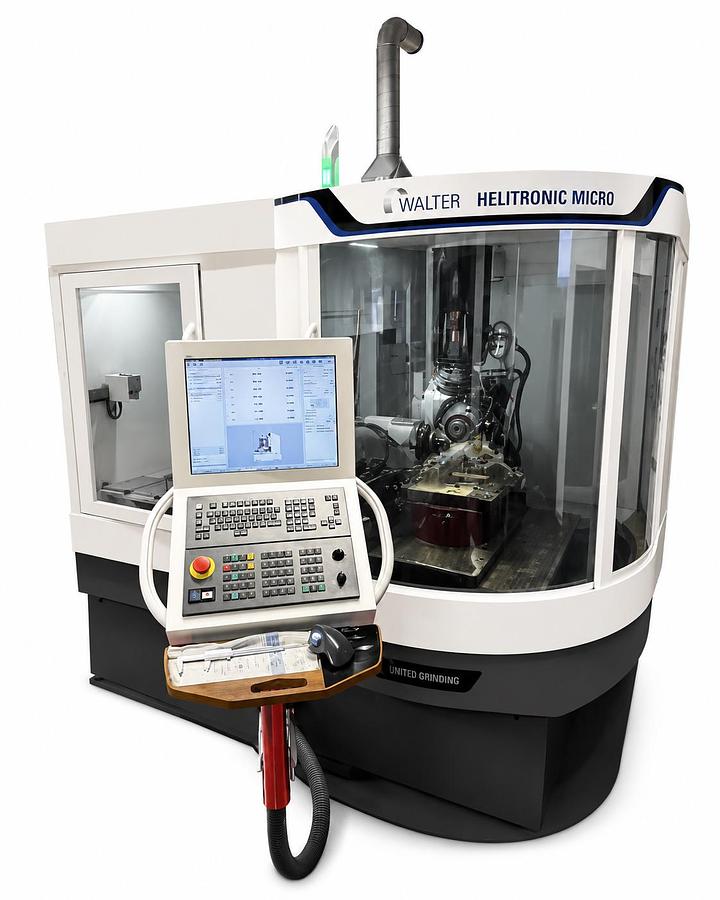

Offered is a WALTER 5-axis CNC tool grinding machine for the production and resharpening of rotationally symmetrical cutting tools such as drills, milling cutters, reamers and special tools. Travels X/Y/Z: 400mm/250mm/580mm, C-axis swivel range: +/-200°, A axis: 360°, rapid traverse X/Y/Z: max. 15m/min, linear axis resolution: 0.0001mm, center height range: 130mm-165mm, max. workpiece diameter: 190mm, workpiece mounting: ISO 50, spindle motor power: 4.4kW, grinding spindle speed: 6000rpm, spindle diameter: 70mm, max. grinding wheel diameter: 200mm, control: WALTER HMC 400. Overall dimensions X/Y/Z: approx. 1420mm/2010mm/2150mm, weight: approx. 3100kg. An on-site inspection is possible.

table diameter: 400 mm table load: 0,2 t table height: hor. 200 / vert. Sph. 310 mm total power requirement: 0 kW weight of the machine ca.: 0,155 t dimensions of the machine ca.: 0,60,530,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Suitable for regrinding and production of wood and metalworking tools of all kinds., Accessories:, Total enclosure, Fanuc robot loader with 6 controlled axes and camera system, Software Toolstudio Standard & Advanced Version 3, Software Helitronic Toolstudio Option Step Tools/Drills, Automatic fire extinguishing system, Drive chiller for all drives, Measuring probe, Oil drip tray, Glass scales on the linear axes, Electrostatic mist collector, Pneumatic workpiece clamping, Automatic, hydraulically actuated steady rest, Measuring mandrel ISO 50, 3 grinding wheel adaptors, Longitudinal movement (X-axis): 400 mm, autom. X‘-axis for moving the workpiece carrier: 110 mm, Vertical movement (Y-axis): 320 mm, Transverse movement (Z-axis): 320 mm, Rotary table swivel range (C-axis): - 110 ° - + / 160 °, Swivel range B-axis (grinding head): +/- 20 °, Workpiece carrier (A-axis): ISO 40, Speed  ...

Tool holder, milling holder, milling tool, adapter, clamping unit -Manufacturer: Walter, 41 pieces holder/clamping units SK50 -Various types: see photos, more pictures can be sent -Price/sale: complete -Total dimensions: 700/600/260 mm -Weight: 129 kg

Rotary table, rotary dividing table, dividing attachment, dividing head -Manufacturer: Walter, rotary table type Rts 400 G -Clamping surface: Ø 400 mm -Center bore: Ø 31 mm -Groove width: 14 mm -Dimensions: 700/510/H260 mm -Weight: 294 kg

Wood milling cutter, milling head, milling tool, wood milling cutter, profile milling cutter -Outer: Ø 125 mm -Height: 30 mm -Socket: Ø 30 mm -Number: 1 cutter -Price: complete -Weight: 2.2 kg

Cutter head, milling cutter holder, carbide cutter, indexable insert cutter, face milling head, milling head, cutter head shell milling cutter, face milling cutter -Manufacturer: Walter, face milling cutter head -Type: WA ER 06 Ø315 mm -Hole: Ø 60 mm -Dimensions: Ø 335 x 110 mm -Weight: 33.7 kg

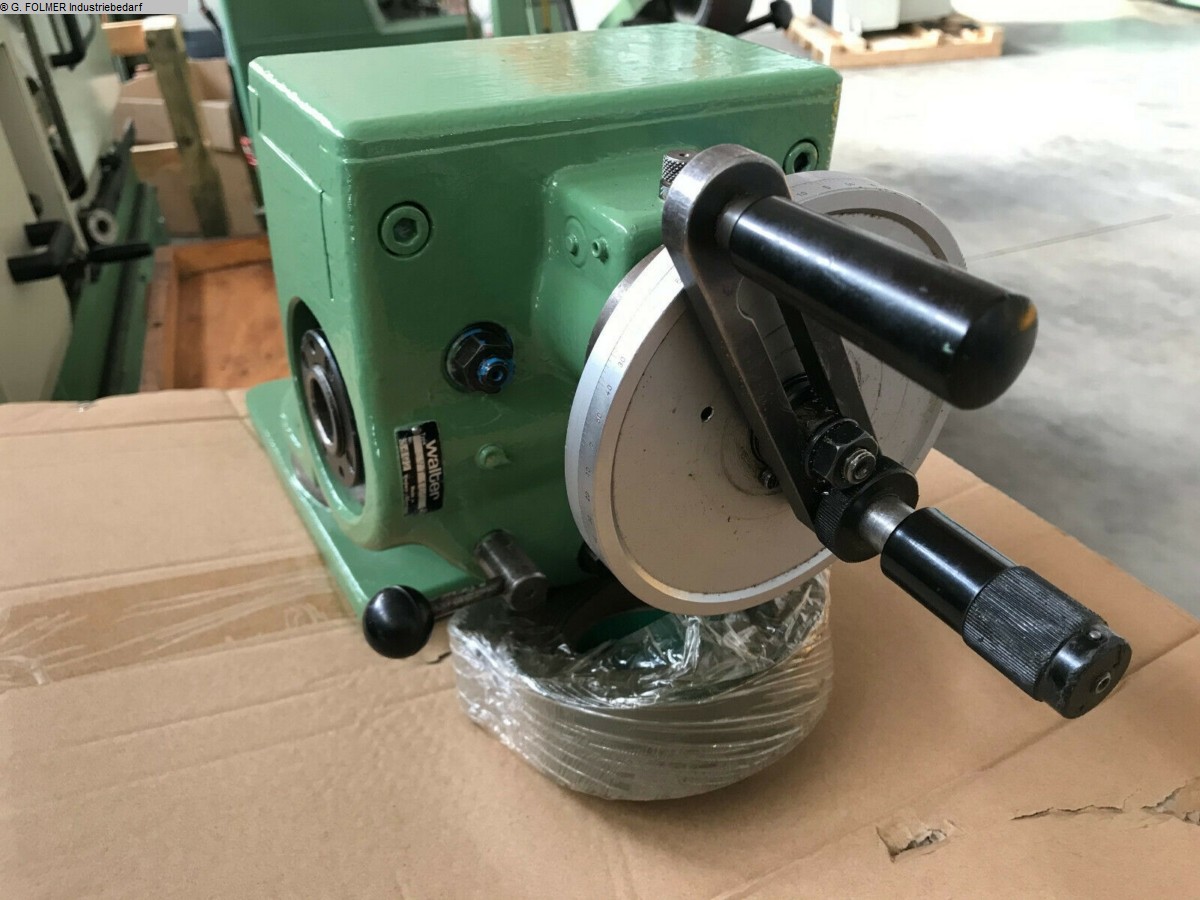

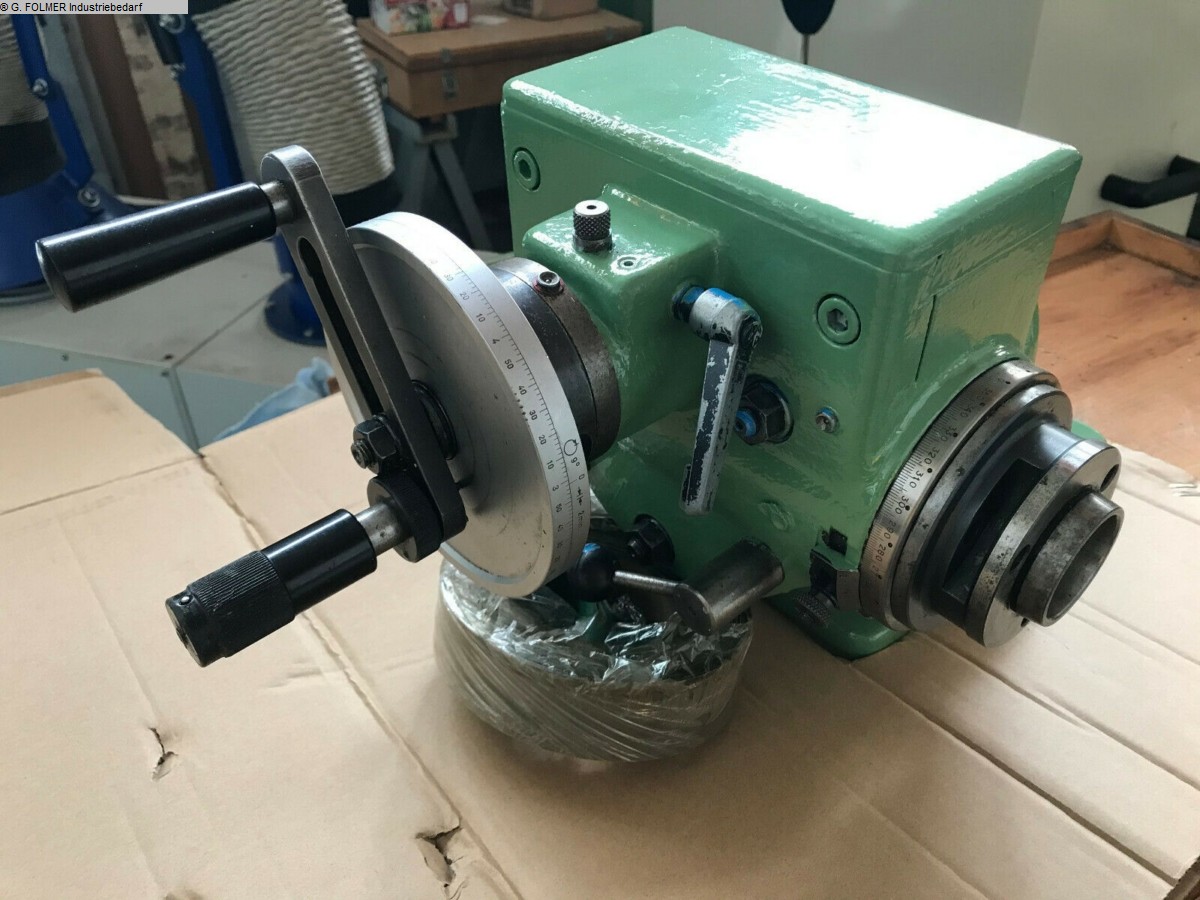

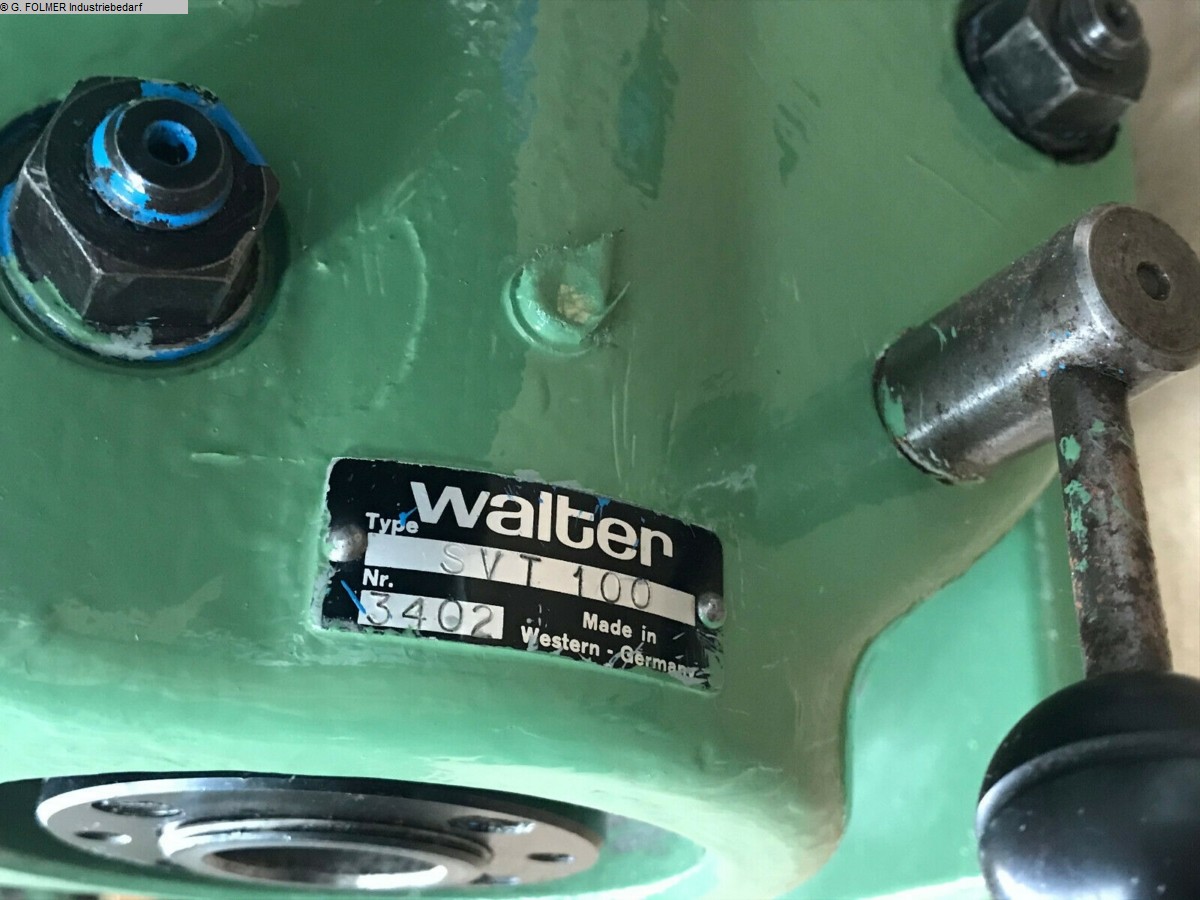

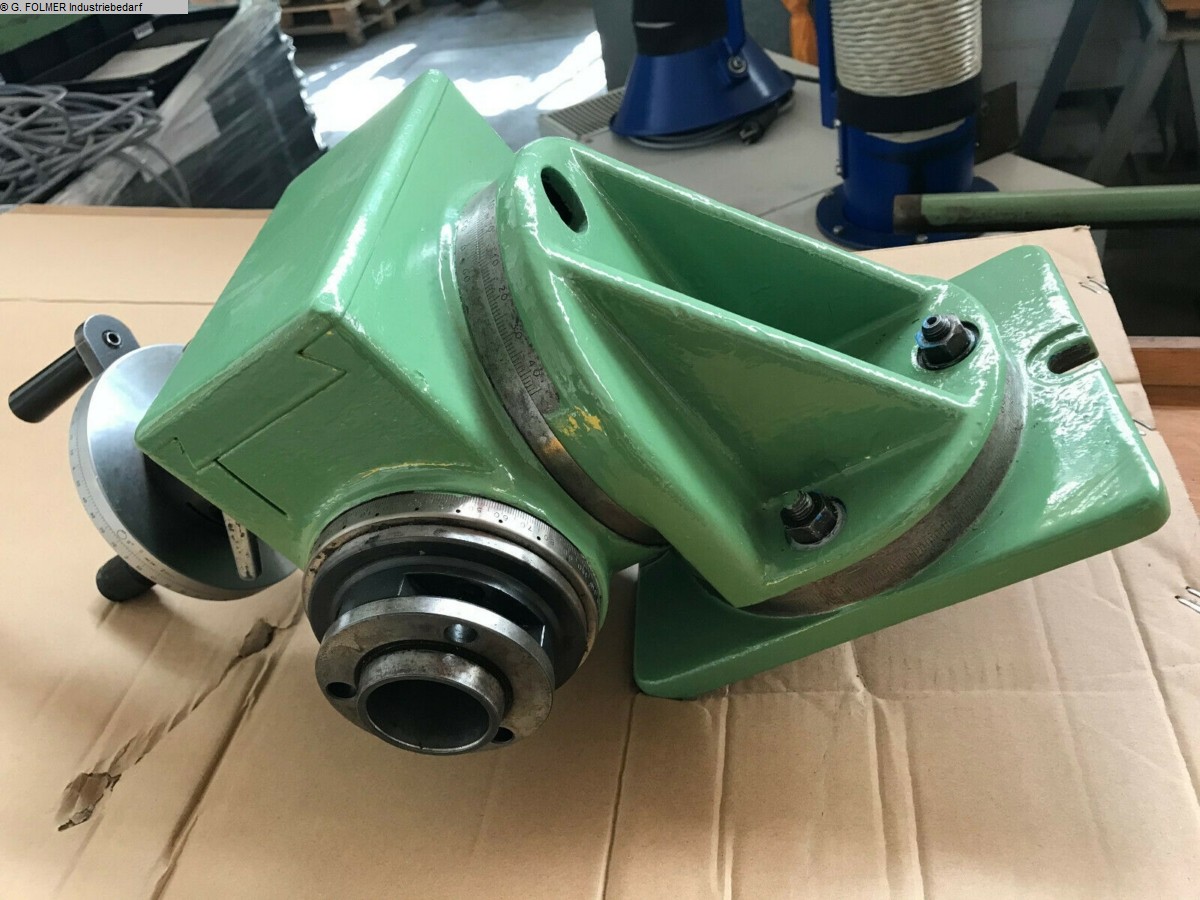

Dividing head, dividing head, tool holder for grinding, drill grinding machine, milling cutter grinding machine, drill grinding holder, milling cutter holder -Accessories for: tool grinding machine -Recording: MK5 -Tip height: 145 mm -Part head: swiveling -Dimensions: 250/230/H300 mm -Weight: 23 kg
