184 WEINIG máquina utilizada para venda

N.º : 8663 Tipo: Opticontrol Produtor: Weinig Gerado: Parâmetros: Diâmetro máximo da ferramenta: 300 mm Comprimento máximo da ferramenta: 330 mm

Número : 8662 Tipo: Rondamat 960 Produtor: Weinig Gerado: 2000 Parâmetros: Velocidade máxima: 1500-3000 1/min Diâmetro da roda de moagem: 150/225 mm Perfuração de roda de moagem: 60 mm

N.º : 8653 Tipo: Hydromat 23 Produtor: Weinig Gerado: 2000 Parâmetros: Velocidade máxima do eixo vertical: 6000 1/min Número de fusos: 8 Diâmetro do eixo: 50 mm Altura da máquina: 1740 mm Comprimento da máquina: 3900 mm Largura da máquina: 1900 mm Peso da máquina: 4600 kg

Weinig OptiCut 260 optimisation cross-cut saw for cutting timber to length and removing sections with defects (marked with fluorescent chalk). The separate measuring station records the lengths and marked defects. Technical data: Cutting height: 260 mm Saw blade diameter: 500 mm Input length: 400 – 6,300 mm Input thickness: 12 – 80 mm Feed rate: max. 250 m/min Cycle time: approx. 1 sec Saw motor: 7.5 kW Marking station: 5,000 mm Outfeed conveyor: 7.5 m with 3 pneumatic ejectors Control system: OptiCom Pro Condition: Gebraucht Location: Tauberbischofsheim, Germany

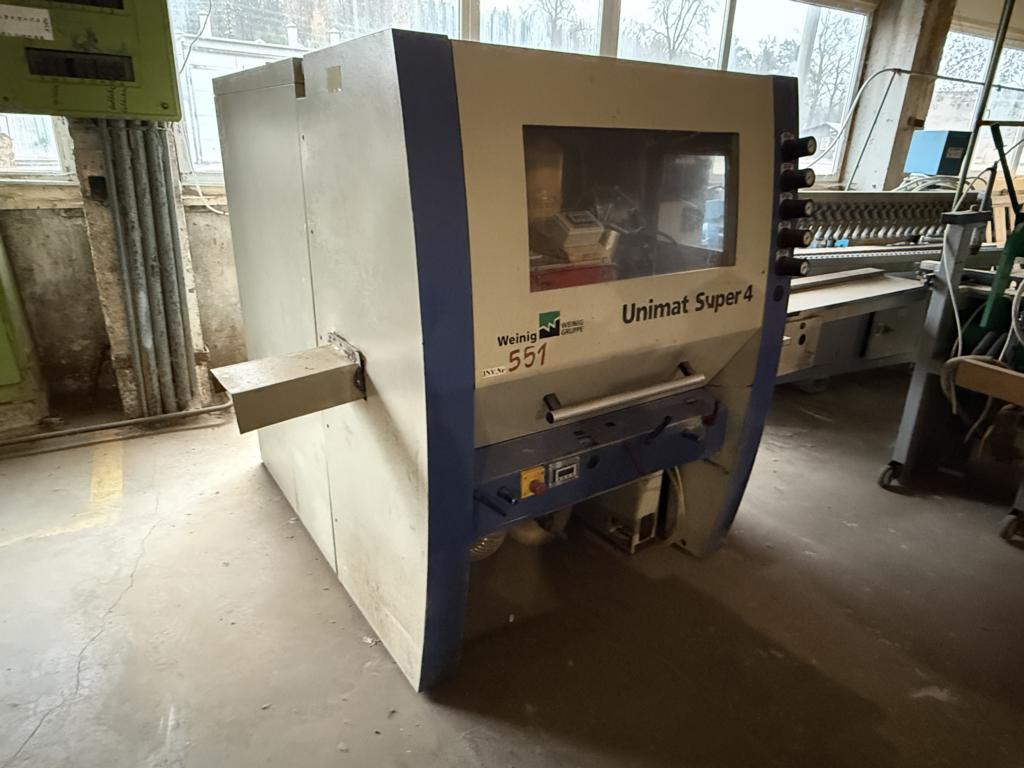

Technical data: - Manufacturer: Weinig - Type: Unimat Super 4 - Year of manufacture: 2003 - Working width: 25 - 150 mm - Working height: 15 - 50 mm - Shaft arrangement: Spindle 1 below: Planing and milling the guide groove 125x40x40 mm, Z=2 125x120x40 mm, Z=2 Spindle 2 above: Combination tool consisting of special planing head with guide groove and 2 flat milling cutters. Precise thickness planing and flat milling of the gluing surfaces on the right and left. Face milling cutter on the right: 240x17x40mm, Z=8 Special planing head: 125x240x40mm, Z=4 Face milling cutter on the left: 240x80x122mm, Z=8 Tool flight circles 125 and 250mm Spindle 3 below: Removing the guide groove and finish planing. 125x170x40mm, Z=4 - Spindle 1: 11 KW - Spindle 2: 18.5 KW - Spindle 3: 5.5 KW - Feed engine: 2.2 KW - Feedspeed: 5 -20 m/min. - Speed spindle 1 and 3: 6.000 rpm. - Speed ...

Key data: 4 , 230 mm, 150 mm

Plaina de quatro lados Weinig Tipo: Q 22 Quattromat Ano de Fabricação: 1990 Largura de plaina 230 mm Altura de planeamento 150 mm Comprimento da penteadeira: 1960 mm 4 eixos: 1 4 kW inferiores 2 à direita e 3 à esquerda acionados por 1 motor 5,5 kW 4 acima de 5,5 kW Velocidade de avanço 6 - 22 m/min. Cardão de alimentação, motor de alimentação 2,2 kW Manual da bomba de lubrificante Com capuz insonorizado Incluindo as cabeças de plaina 2 peças de comprimento 230 mm 2 peças de comprimento 150 mm Peso com subestrutura 1.620 kg Dimensões 3350 mm x 1450 mm x H 1600 mm

Weinig Unimat 23 SP automatic planing and splitting machine for the precise planing (or pre-planing) and splitting of solid timber in a single operation. The machine delivers a high standard of finish and is ideal for efficient mass production in the timber industry. Technical data: Spindles: 4 Working width: 230 mm Working height: 120 mm Spindle 1: Bottom (5.5 kW) Spindle 2: Top (5.5 kW) Spindle 3: Right (11 kW) Spindle 4: Left (11 kW) Feed: 5.5 kW Condition: Gebraucht Location: Tauberbischofsheim, Germany

Weinig Unimat 23E automatic planing and profiling machine for four-sided planing and profiling of timber, featuring a mobile spindle for automatic adjustment and a grooving bed (optionally available without the grooving bed) for short and curved workpieces, as well as a long dressing table. Technical data: Optional: Conversion to a conventional smooth table, on request. Spindles: 5 Spindle 1: Bottom / 40 mm / 5.5 kW Spindle 2: Right / 40 mm / 7.5 kW Spindle 3: Left / 40 mm / Shared motor with spindle 2 Spindle 4: Top / 40 mm / 7.5 kW Spindle 5: Bottom / 40 mm / 5.5 kW Working width: 230 mm Working height: 160 mm Feed: 4 kW / 5–24 m/min Condition: Gebraucht Location: Tauberbischofsheim, Germany

Key data: 7 , 170 mm, 140 mm

Plaina de quatro lados Weinig Tipo: U 17 A Ano de fabricação: 1979 Largura de plaina 170 mm Altura de plaina 140 mm Penteadeira com 1960 mm de comprimento 7 Ondas: 1. 4kw inferiores 2. Direita 3 kW 3. Esquerda 4 kW 4. Direita 4 kW 5. Topo de 5,5kw 6. 4kw inferiores 7. Universal 4 kW Velocidade máxima de avanço: 18,5 m/min. com bomba Waxilit manual condição de bom funcionamento

For profiling and edge-milling windows doors individual components and similar items with all-round profiles, including return feed Units: Technical data: 1. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4×80, hydraulic, 3. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4×80, hydraulic, Condition: Gebraucht Location: Tauberbischofsheim, Germany

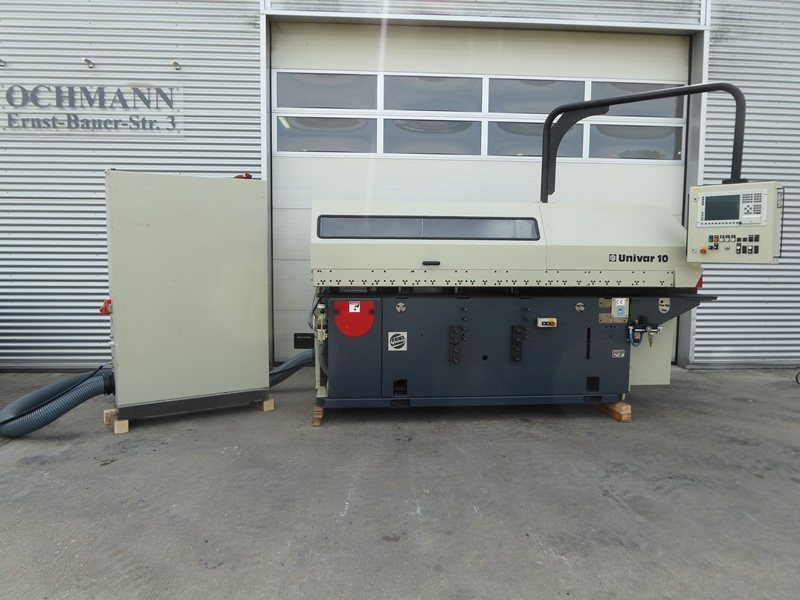

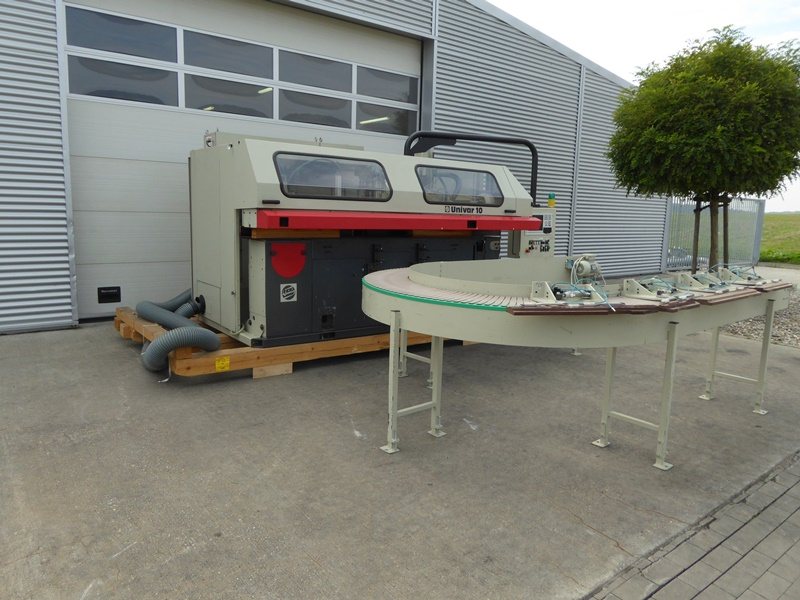

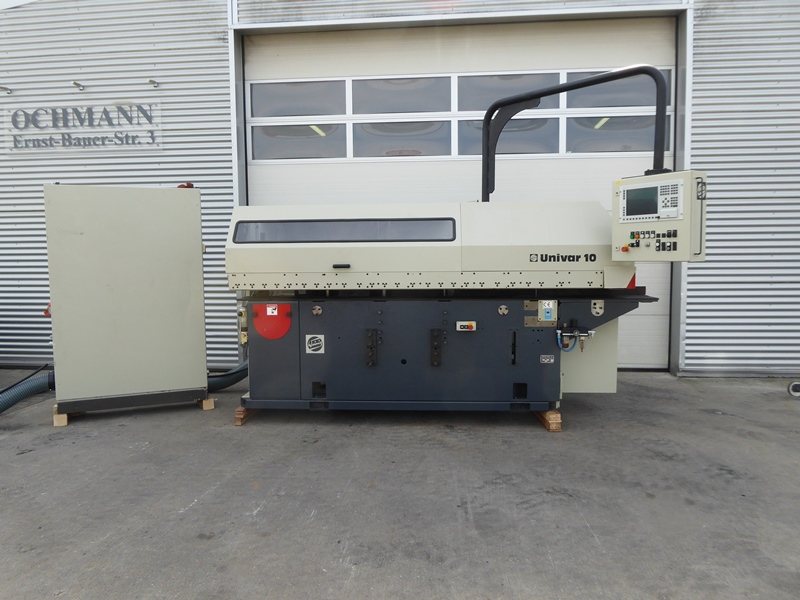

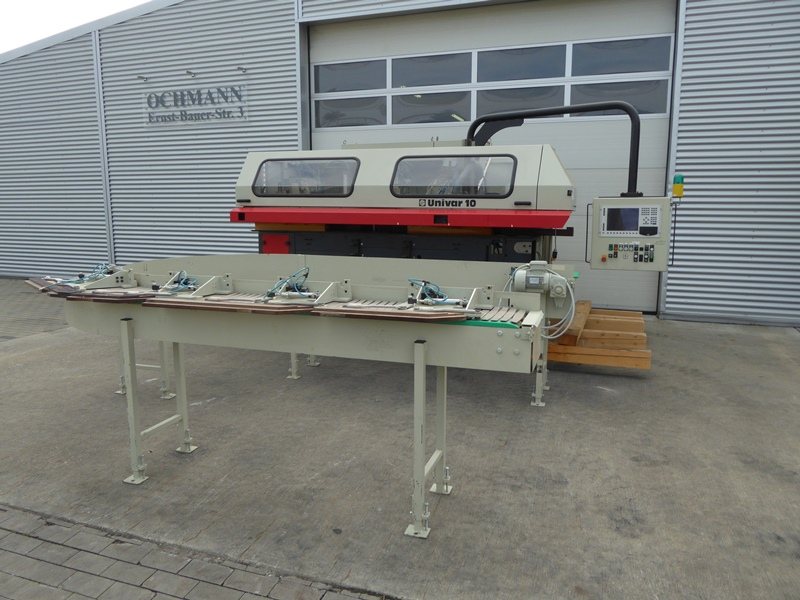

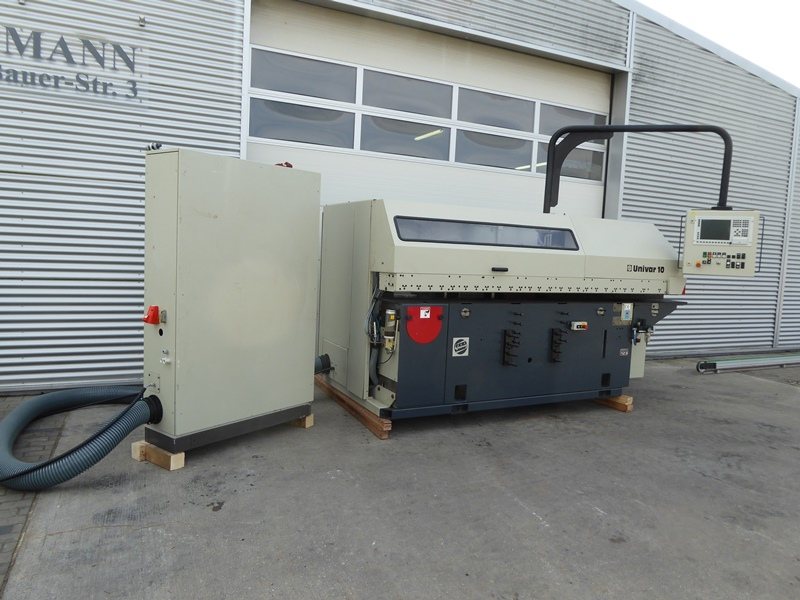

WEINIG UNIVAR 10 automatic rebating machine from a UC-Matic window production line, not in working order. Technical data: Year of manufacture: 1997 Condition: Gebraucht Location: Tauberbischofsheim, Germany

Weinig Unicontrol 10 (UC 10) mitre saw system for the manufacture of windows, components and doors. Suitable for frame-by-frame, batch or individual part production, with 2 tenoning and slotting spindles, including an Oertli tool set Units: 1. Cross-cut saw, NC axis, 3 kW, ø 40 mm, 2,800 rpm 2. First tenoning and slotting spindle, NC axis, ø 50 mm, 15 kW, Technical data: Clamping length: 640 mm (8 x 80) mm Condition: Gebraucht Location: Tauberbischofsheim, Germany

For profiling and edge-milling windows, doors, individual components and similar items with all-round profiles Units: Technical data: 1. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4×80, hydraulic, synchronisation device 2. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4×80, hydraulic, Condition: Gebraucht Location: Tauberbischofsheim, Germany

Return transport / mechanisation compatible with Weinig Univar for transporting entire window sashes, panels or similar large workpieces. Technical data: Technical specifications: On request Condition: Gebraucht Location: Tauberbischofsheim, Germany

A wide range of second-hand spare parts, as well as complete units, control systems and switchboards for Weinig Univar (and other brands) are always in stock. Please contact us. Sample images. Condition: Gebraucht Location: Tauberbischofsheim, Germany
