outras máquinas para trabalhar o metal usadas para venda (11,329)

Pipe bending machine Type: Gigalus 130 S Producer: Mewag Year: 2014 bending and shaping of 3D pipes with a diameter of min. 40mm and wall thickness min. 4mm. Based on CAD drawings, it converts the exact shaping of pipes into the final form, including the simulation of bending angles. Engine power: 40kW max.radius: 450mm bending accuracy: +/- 0.2 degree length accuracy: +/- 0.5 mm Machine in good condition, under power. Find more here - / Contact us at -

Manufacturer: SPINNER Model: SERVO - LOAD 80 - 1200 Year of Manufacture: 2011 Voltage (U): 3/PE ~ 400 V Frequency (f): 50/60 Hz Input Current (Iᵍ): 5 A Fuse Rating (Iₙ): 10 A Find more here - / Contact us at -

2012 KRAUSS MAFFEI 850-1400-1000 MX Z Injection moldin machine missing electrical and mechanical parts Find more here - / Contact us at -

2008 SAR/KUKA R/SCHS/GR/ETI/UST/MED/FB/HBG/BAS Injection robot Machine was functional before conservation, obsolete robot version, retrofit could not be done. Find more here - / Contact us at -

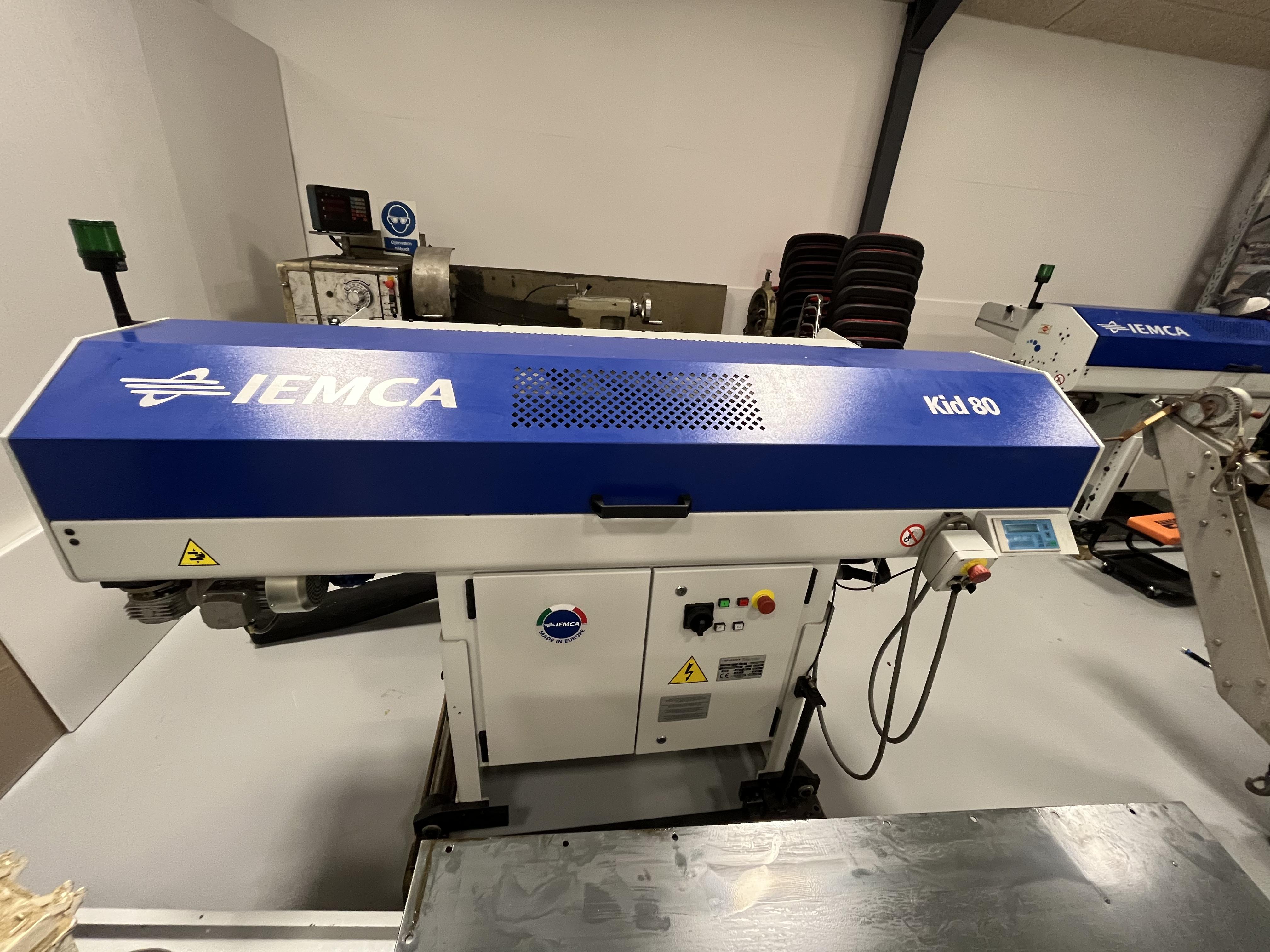

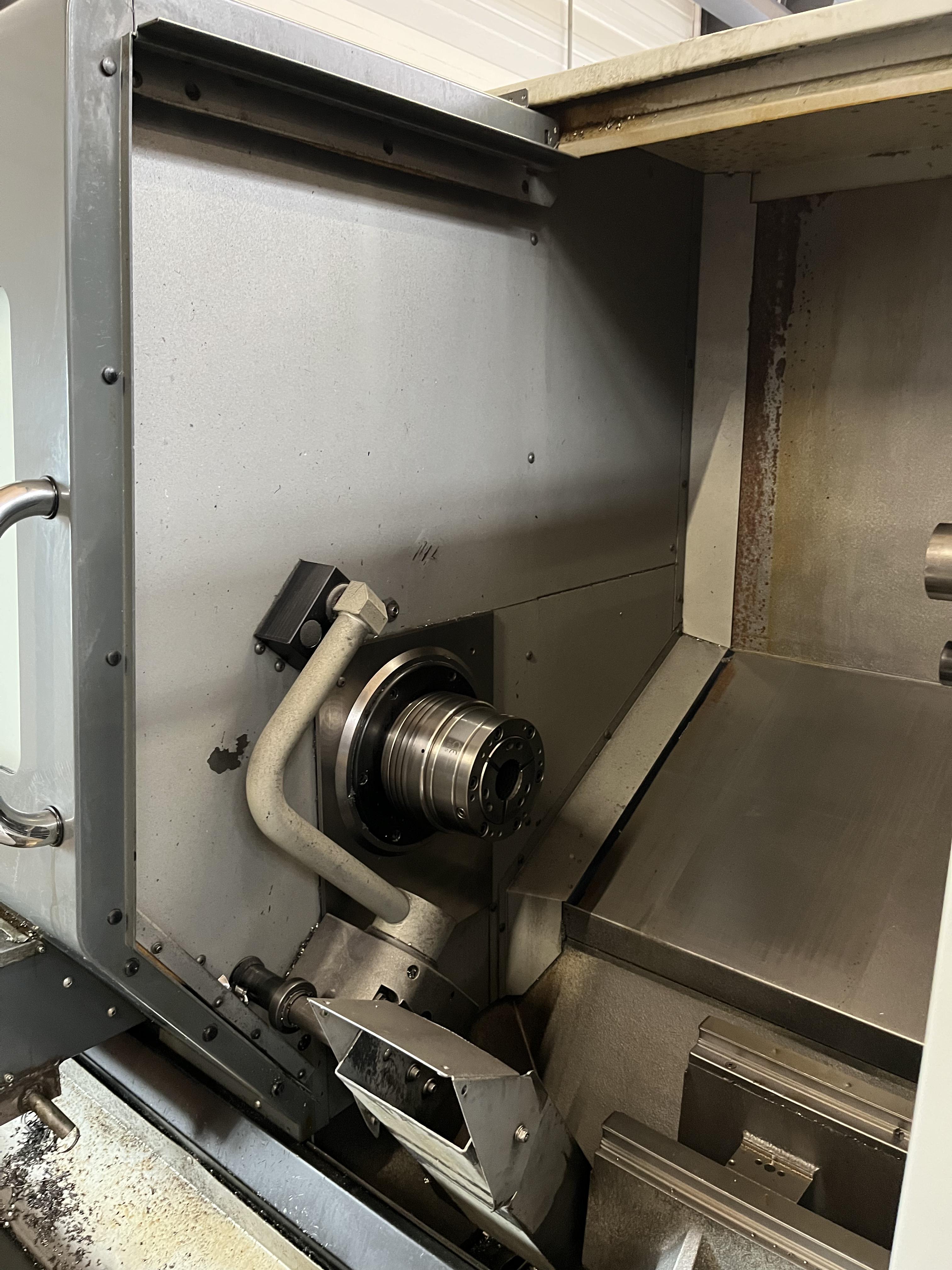

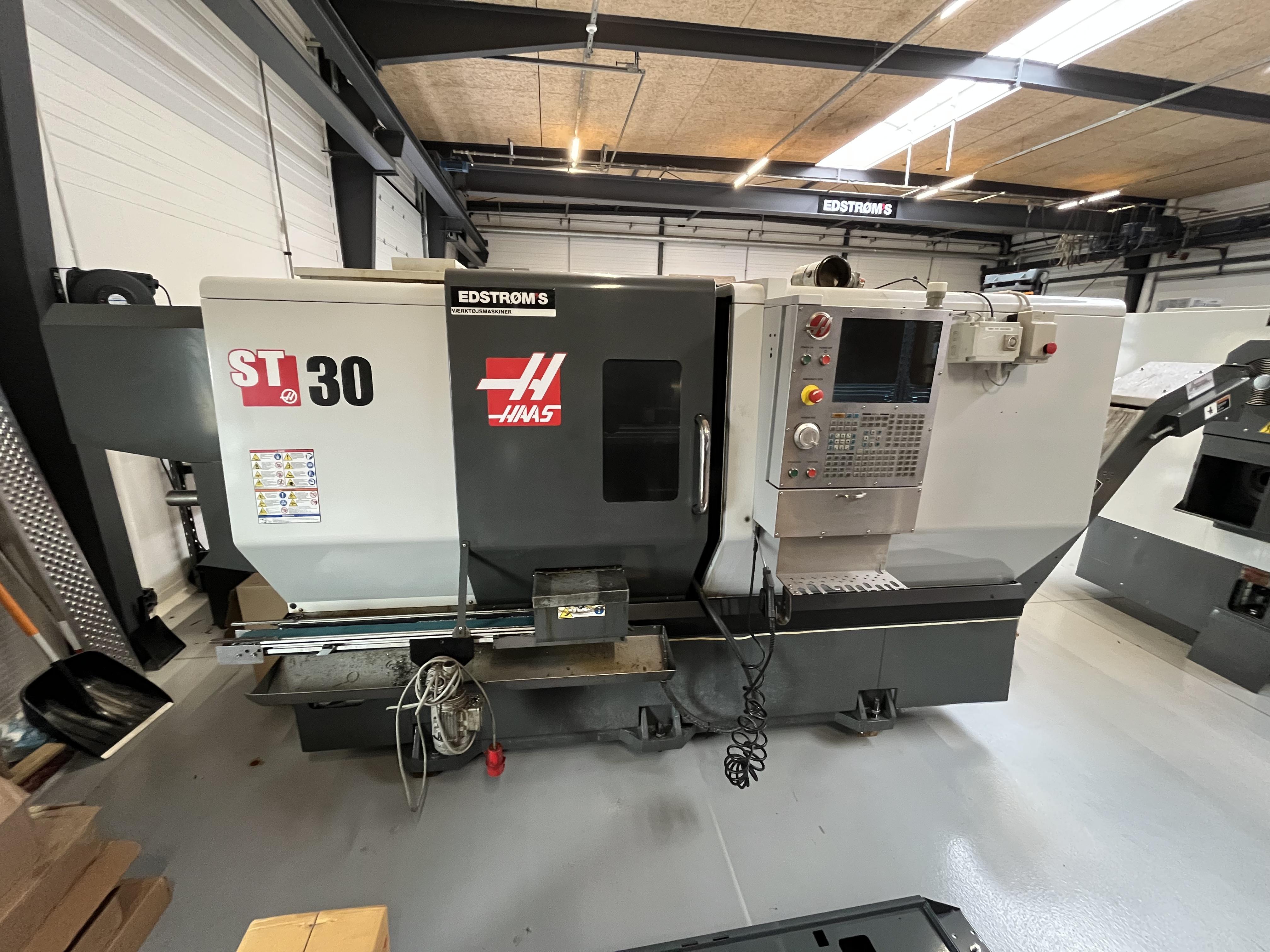

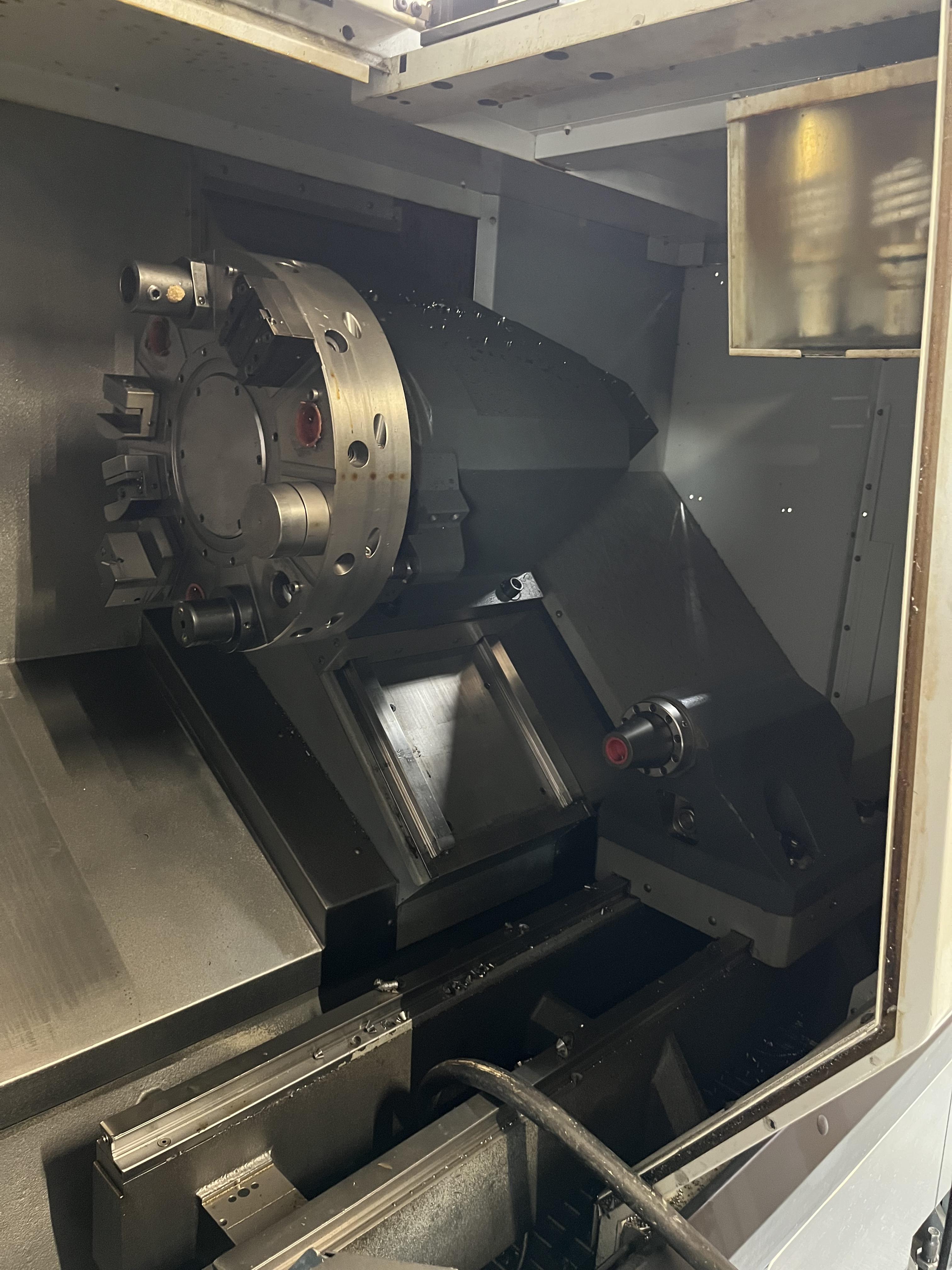

We are offering for sale a Haas ST-30 with a Iemca bar feeder . Haas ST-30 Electrical Specifications: - Voltage: 360–480 V - Phase: 3 - Frequency: 50/60 Hz - Full Load: 40 Amps - Largest Load: 70 Amps - Interrupting Capacity: 10,000 Amps Technical Details: - 3400 rpm - Ø75 mm bore - Hainbuch - Conveyor - Toolsetter - Partcatcher - Tailstock - 12 x VDI40 turret - Gearbox Iemca Bar Feeder Model: KID 80 Year of Manufacture : 2016 Weight: 640 kg Voltage: 400 V, 3 Phase, 50 Hz Current: 3.5 A Short Circuit Rating (Icn): 5 kA Find more here - / Contact us at -

We are offering for sale a Haas SL-30BHE with a Iemca Barfeeder Haas SL-30BHE - Voltage: 360–480 - Phase: 3 - Frequency (Hz): 50/60 - Full Load Current: 40 Amps - Largest Load: 70 Amps - 3400 rpm Ø102mm bore - Hainbuch SK80 - USB - Conveyor - Toolsetter - Rigid tapping - 12 x VDI40 turret - Partcatcher Iemca Bar Feeder - Model: KID 80 - Year of Manufacture: 2008 - Weight Capacity: 500 Kg - Rated Voltage: 400 V - Phase: 3 ~ - Frequency: 50 Hz - Rated Current (Ie): 3.5 A - Short-circuit Capacity (Icn): 5 kA Find more here - / Contact us at -

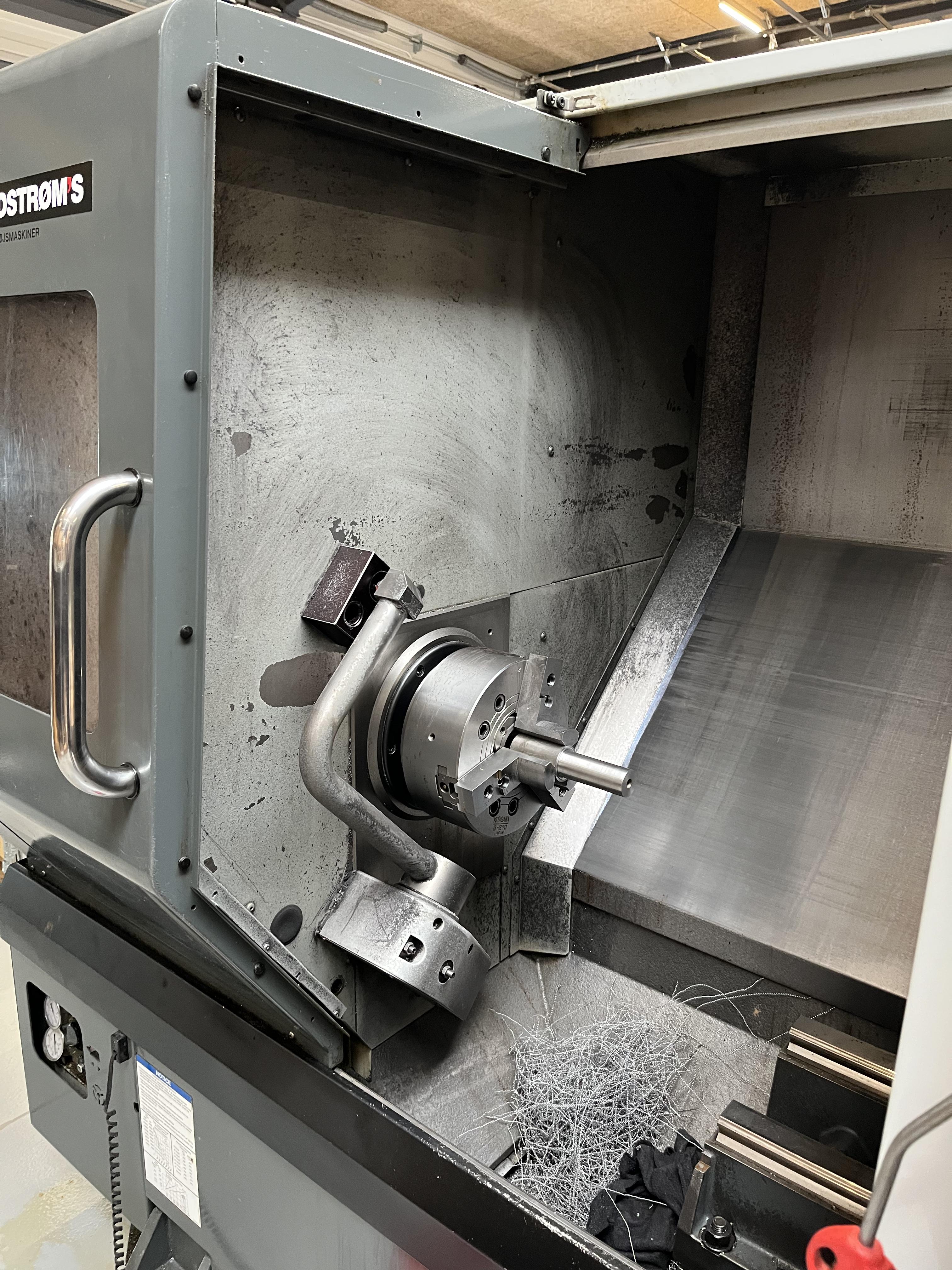

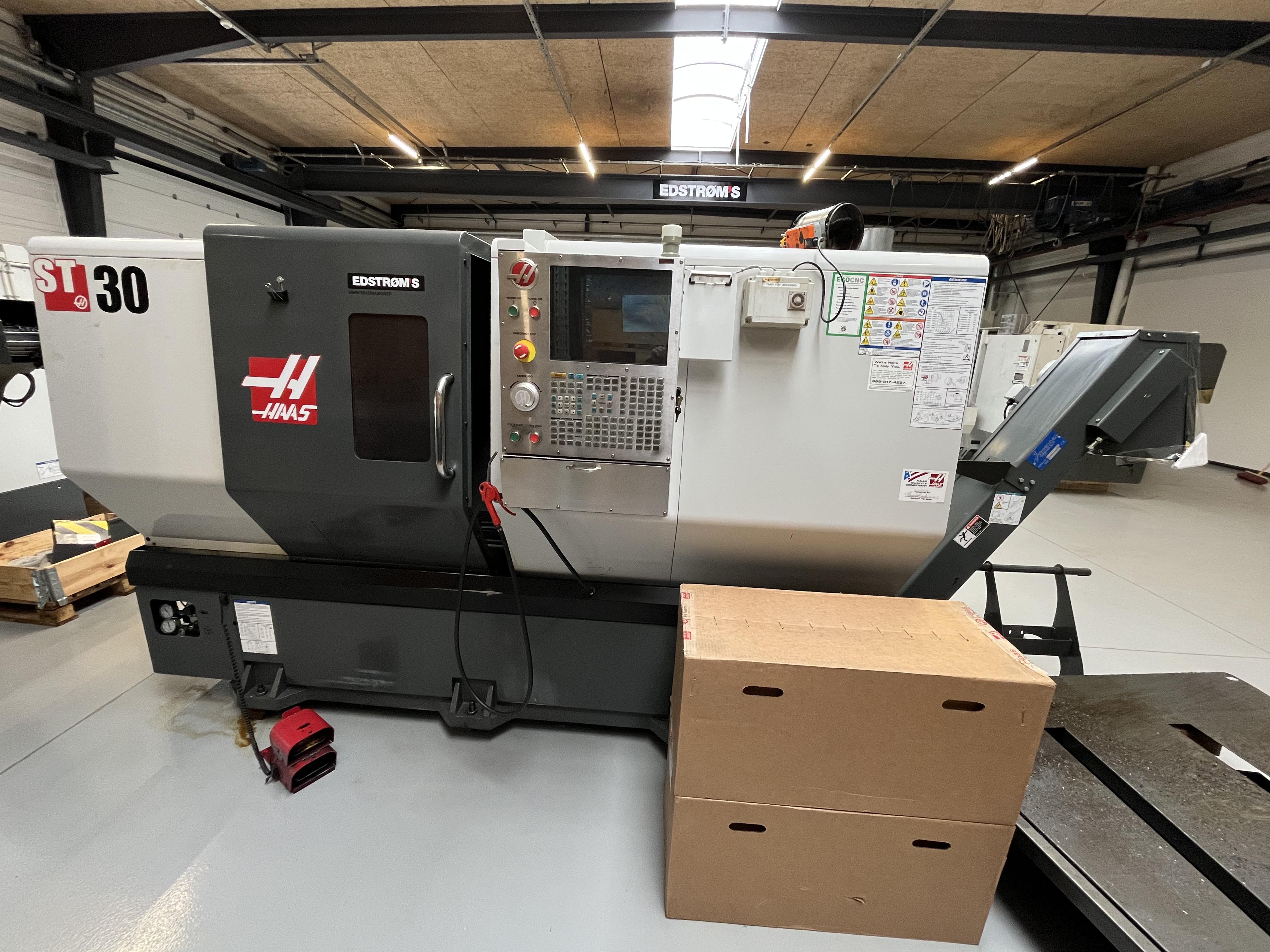

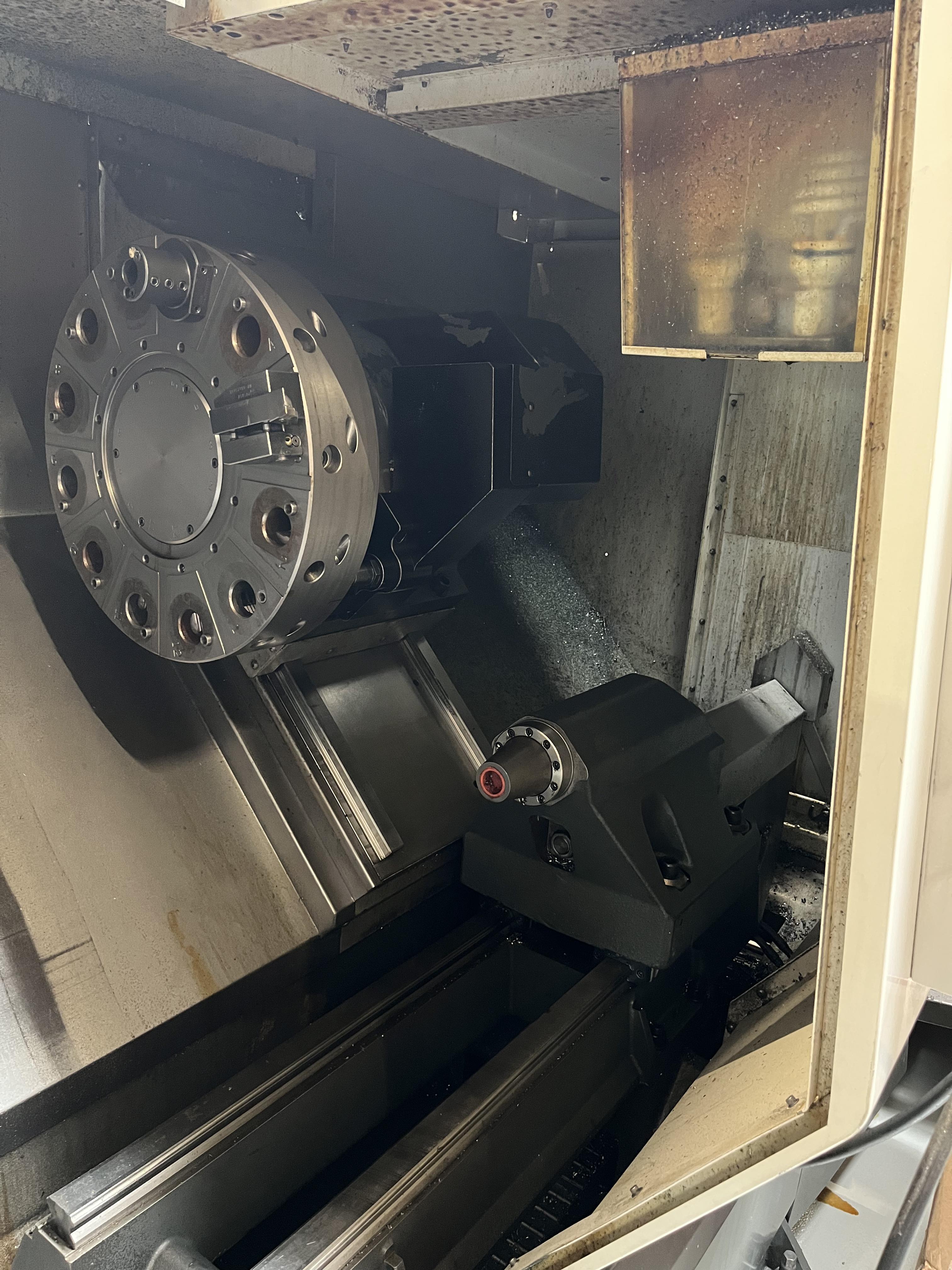

Manufacturer: Haas Model: ST-30 Year of Manufacture: 2011 Voltage: 360–480 V Phase: 3 Frequency (Hertz): 50/60 Hz Full Load Current: 40 Amps Largest Load Current: 70 Amps Short Circuit Interrupting Capacity: 10,000 Amps Certification: CE 3400 rpm Ø75mm bore 10" chuck Livetool og C axis Toolsetter Conveyor 12 x VDI40 turret Tailstock Find more here - / Contact us at -

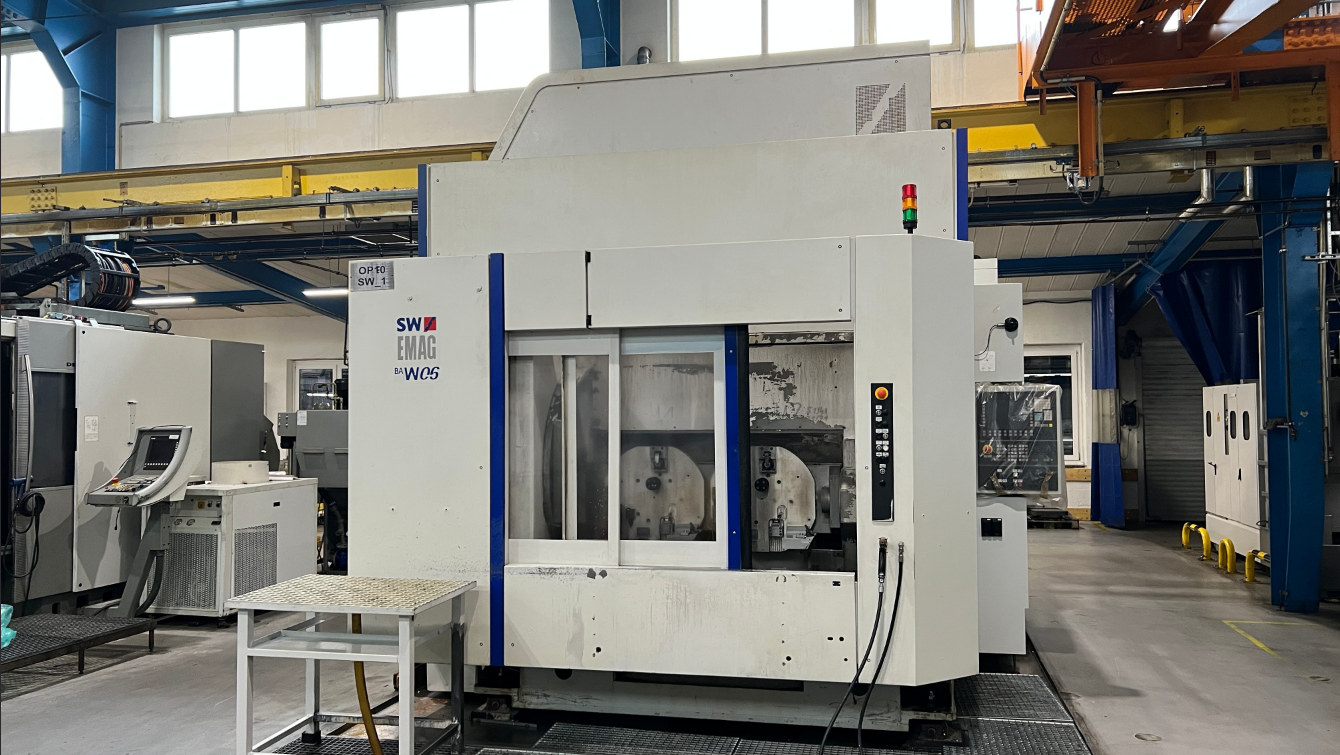

Manufacturer: SW Model: BA-W 06-22 Year of Manufacture: 2007 Control: Siemens 840 D Technical Details: - Spindle Distance: 600 mm - Travel X: 600 mm - Travel Y: 600 (975) mm - Travel Z: 500 mm - Travel A: 600 mm - Max. Rapid Traverse Speed (X/Y/Z): 45 m/min - Tool Holder: A63 HSK - Tool Magazine: 2 × 72 tools - Spindle Speed: 17,500 rpm - Drive Power: 38 kW - Weight: 18,000 kg Equipment: - 2-fold tool changer - 2 NC-controlled swiveling units for clamping bridge - 2 NC-controlled swiveling units - 4 NC-controlled rotary tables - KNOLL cooling unit - IKZ high-pressure pump 70 bar - Chip conveyor - Additional control panel for tool management Find more here - / Contact us at -

Manufacturer: Bystronic Model: BLT 4000 Year of Manufacture: 2001 Type of Machine : C02 Laser Find more here - / Contact us at -

Fiber laser cutting machine Type: LT 9 Manufacturer: BLM Adige-SYS Year: 2013 Control: Siemens Sinumerik Laser: IPG YLS 3000 Precitec ProCutter head Machine hours: 30000 Table: 1500 x 3000 mm Max plate thickness: 20 mm Min plate thickness: 0,5 mm The machine includes a license and software for creating Lantek cnc programs. In good condition, fully functional. Find more here - / Contact us at -

CNC horizontal boring machine Type: WH 10 CNC Manufacturer: TOS Year:1991 Overhauled and modernized machine Control: Heidenhain iTNC 530 Spindle diameter: 100 mm Spindle cone: ISO 50 Max spindle speed: 1100 rpm Rotary table: 1000 x 1120 mm Max table load: 3000 kg X: 1250 mm Y: 1150 mm Z: 950 mm W: 630 mm Machine weight: 13500 kg In good condition, under power Find more here - / Contact us at -

CNC vertical machining center Type: LG 1000 Manufacturer: Hartford Year: 2017 Control: Fanuc AI 100 X: 1000 mm Y: 500 mm Z: 500 mm Table: 1150 x 510 mm Max table load: 700 kg Spindle taper: BT 40 Tool magazine: 24 positions Chip conveyor Documentation Machine weight: 5100 kg In good condition, under power Find more here - / Contact us at -

Manufacturer: Winfos Model: YC 180 Year of Manufacture: 2010 Type of Machine : Longitudinal Slitting Line In operation since: 2017 Condition: Operational Technical Specifications: - Line length: 24.5 m - Line width: 7.8 m - Material thickness: 1.5 ~ 5.0 mm - Maximum coil diameter: 1.8 m - Coil inner diameter: 640 – 800 mm - Maximum coil width: 1500 mm - Maximum coil weight: 16 MT - Installed power: 253 kW Line Speed: - At 1.5 mm thickness: 110 m/min - At 4.0 mm thickness: 95 m/min Tooling & Accessories: - Knives – 186 pcs total: - Set 1 – 10 mm, Ø307: 26 pcs - Set 2 – 14 mm, Ø315: 66 pcs - Set 3 – 14 mm, Ø315: 50 pcs - New Ø320: 44 pcs - Rubber rings – 93 pcs total: - Set 1 – 25 mm: 31 pcs - 15 mm: 12 pcs - Set 2 – 25 mm: 31 pcs - 15 mm: 18 pcs - Set 3 – 25 mm: 31 pcs - 15 mm: 18 pcs - Slitter knife spacers: 480 pcs - Separator spacers: - Metal: 252 pcs ...

Manufacturer: Chiron Model: MILL 6000 high speed with NC swivel head Year of Manufacture: 2004 Major overhaul: 2013 Operating hours: 77,374 h Weight: 19,500 kg Power Supply: 3/N/PE ~ 50/60 Hz Working Voltage: 400 V Control Voltage: 220/24 V Power Consumption: 52 kVA Rated Current: 75 A Fuse: 80 A Last spindle replacement: March 2021 (approx. 7,300 spindle hours since) Technical Data: - Control: Siemens 840D (PCU50, NCU572.4) - NC swivel head - Travel paths: X 6,000 mm / Y 630 mm - Rapid feed: X / Y / Z = 60 m/min - Motor spindle: 12,000 rpm, 140 Nm - Tool change time (chip-to-chip): 3.0 sec (vertical), 4.7 sec (horizontal) - Tool magazine: 92 tool positions, HSK-A63 Find more here - / Contact us at -
