outras máquinas para trabalhar o metal usadas para venda (10,888)

DIMENSIONS / WEIGHTS:. - total height:1000 mm

x-travel:635 mmy-travel:510 mmz-travel:460 mmturning speed range:20 - 10.000 U/mintool taper:SK 40 table clamping surface LxW:790 x 560 mmMachine with glass scalesFull safety cabin with sliding doors + interior lightingHeight-adjustable machine shoes 3 pcs.

DIMENSIONS / WEIGHTS:. - total height:35 mm

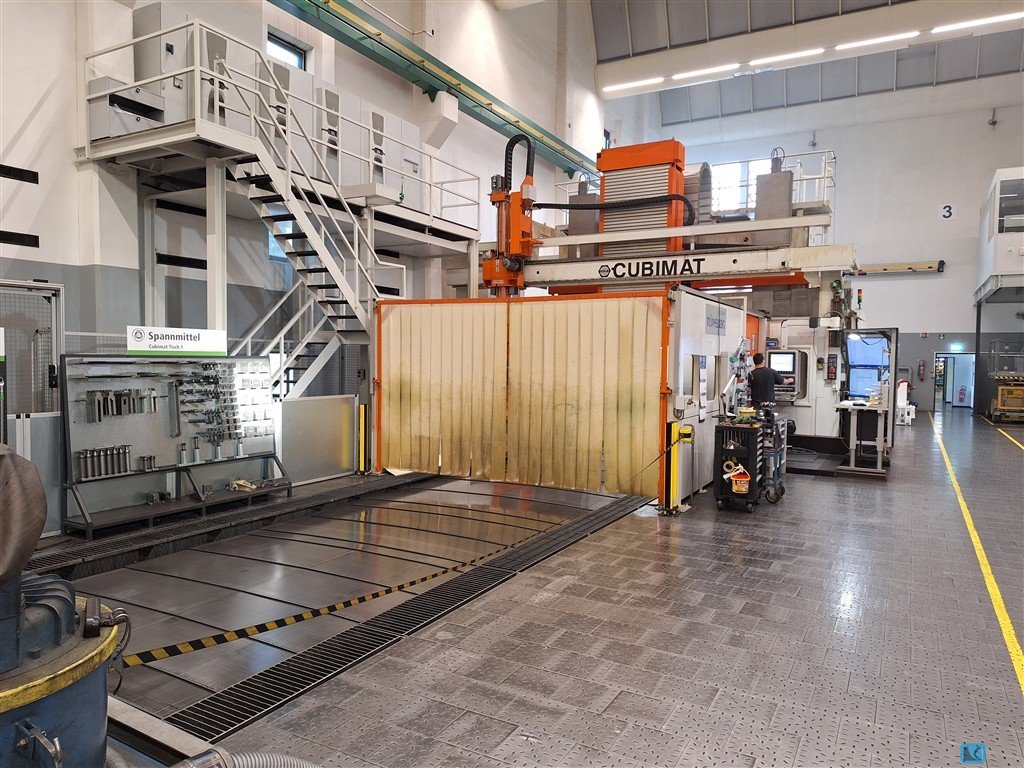

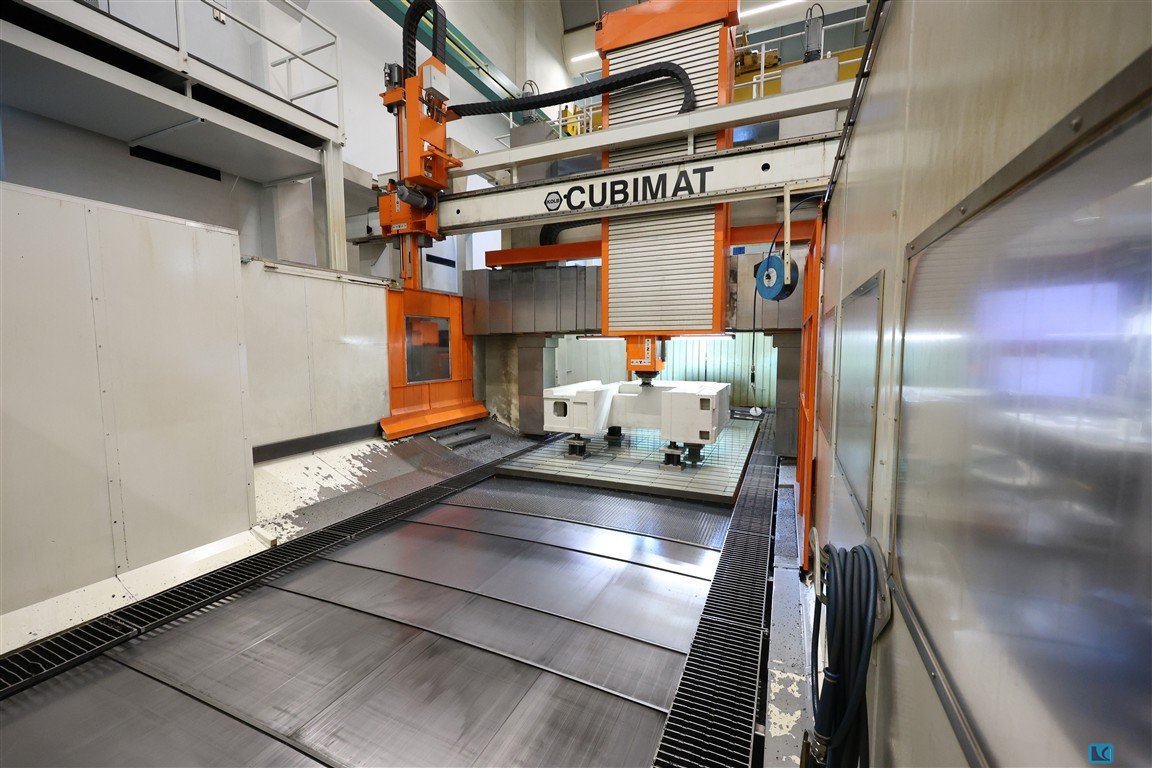

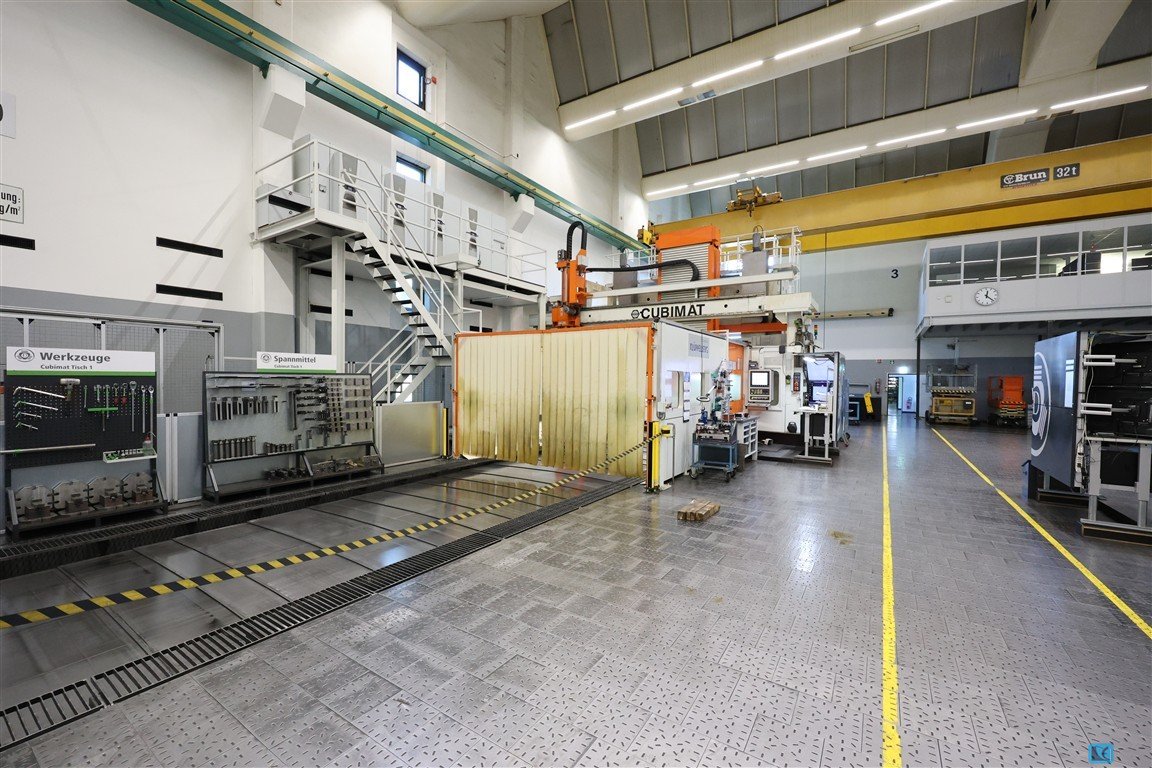

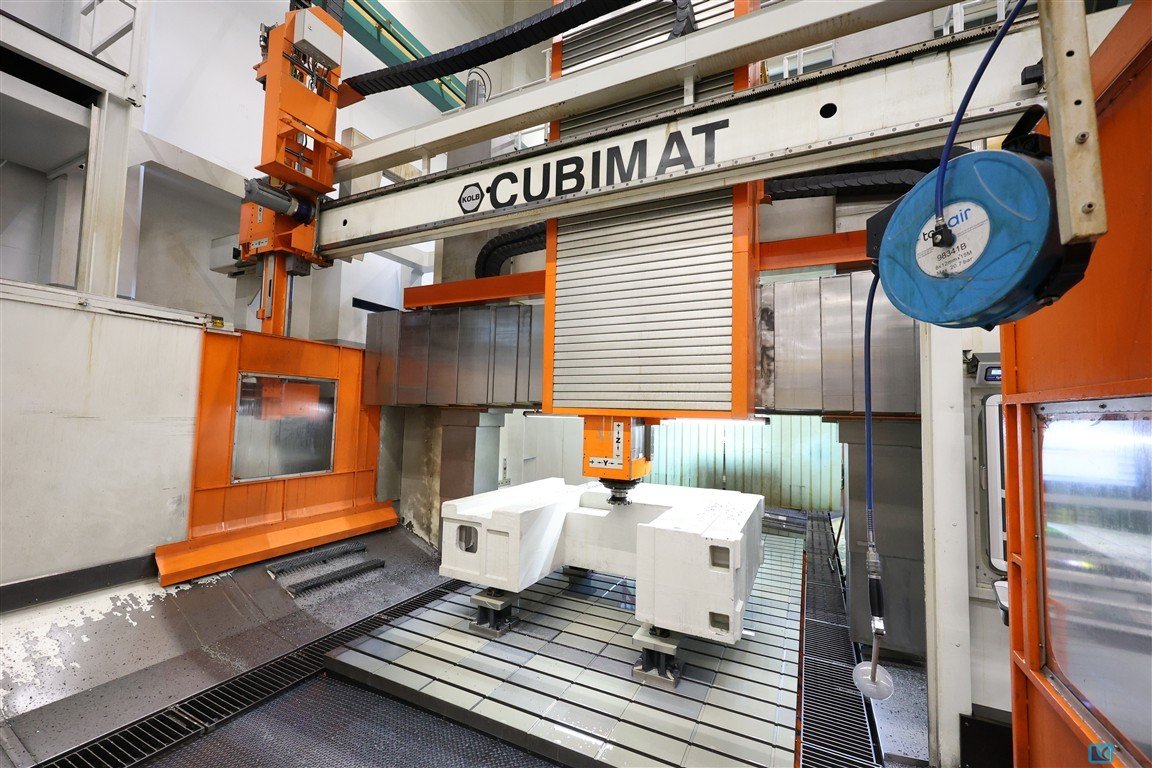

x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nmtool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/mindistance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mMachine is in nearly new condition and was completely modernized in 2020!With CNC SIEMENS 840 DAutomatic tool magazine for 153 tool positionsAutomatic milling head magazine for 6 milling headsMachining module ? straight ? straight long ?Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50 ...

DIMENSIONS / WEIGHTS:. - total height:1000 mm

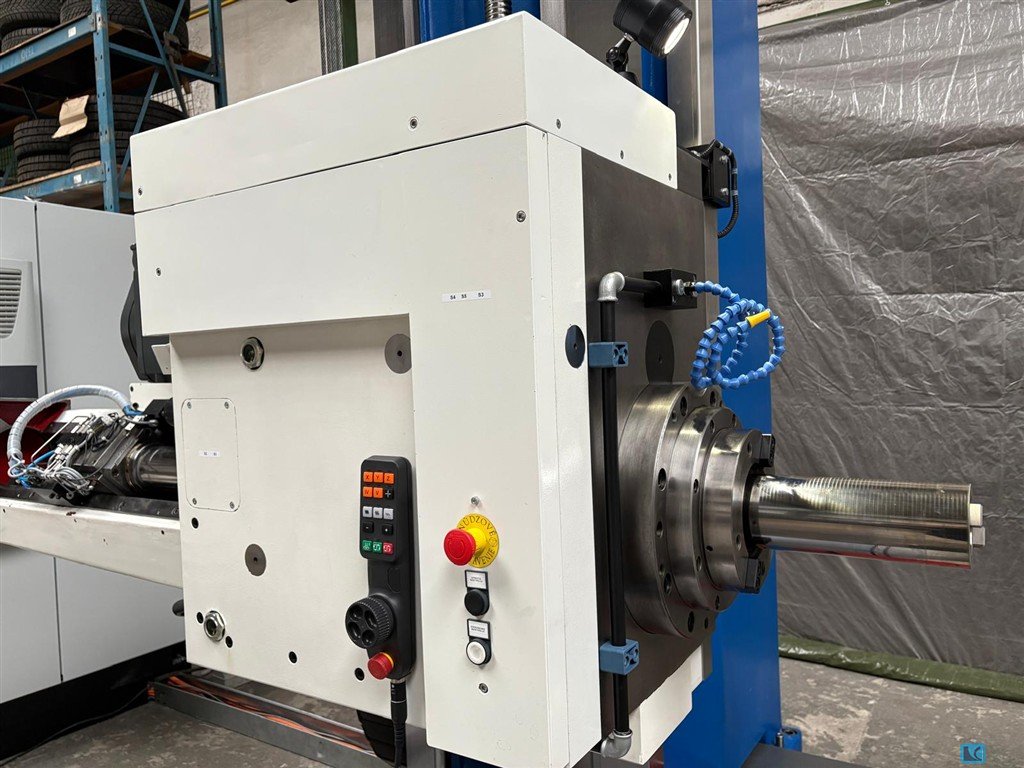

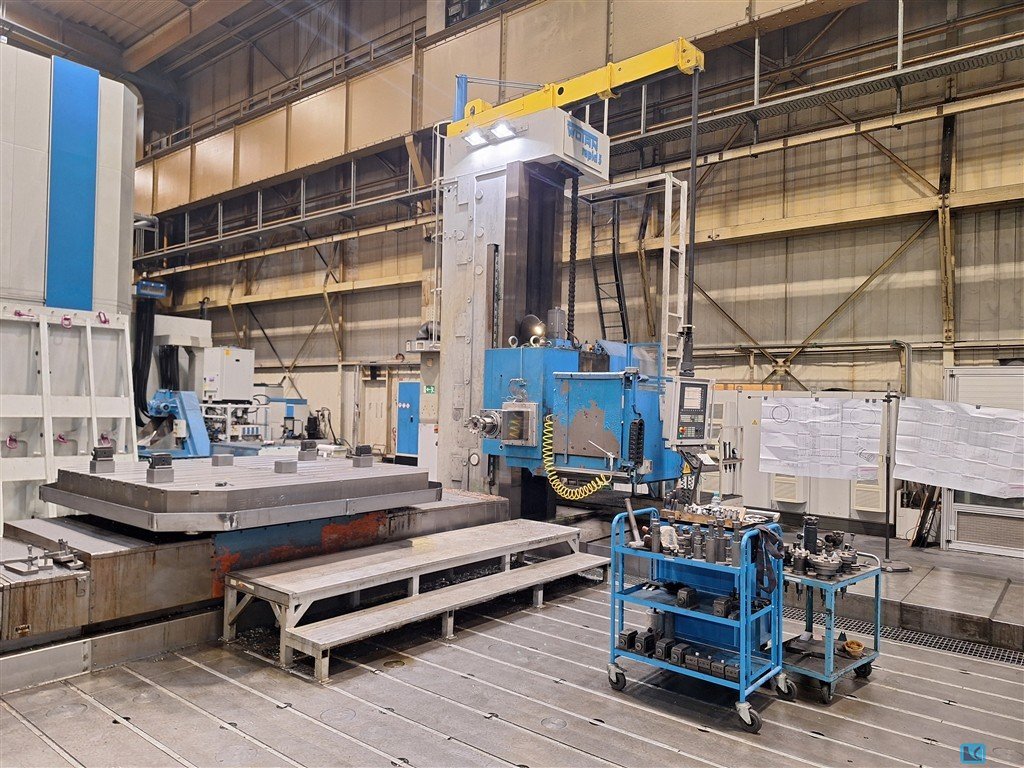

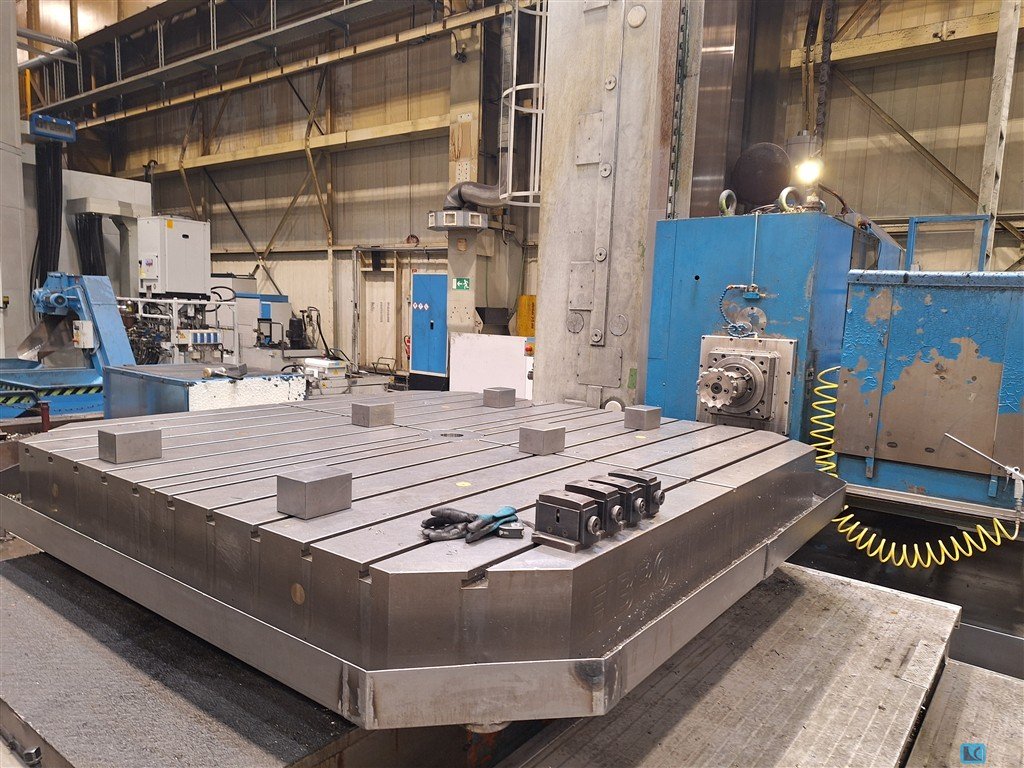

bore capacity in steel (diameter):- mmthroat:- mmbore stroke:- mmx-axis:1.800 mmy-axis:1.600 mmz-axis:1.250 mmw-axis:630 mmmax. table load:5.000 kgtable length:1.400 mmtable width:1.600 mmspindle diameter:105 mmspindle turning speed range:3.300 U/minnumbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary tableChip ConveyorOil cooling unit (chiller)Touch probe Renishaw RMP60Upgrades in 2024 and 2025Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZNew linear scales Heidenhain in X and Z axis including cablingretrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axisnew TOS Varnsdorf parts for tool clamping and automatic tool changer armOverhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor)New Siemens hand wheel

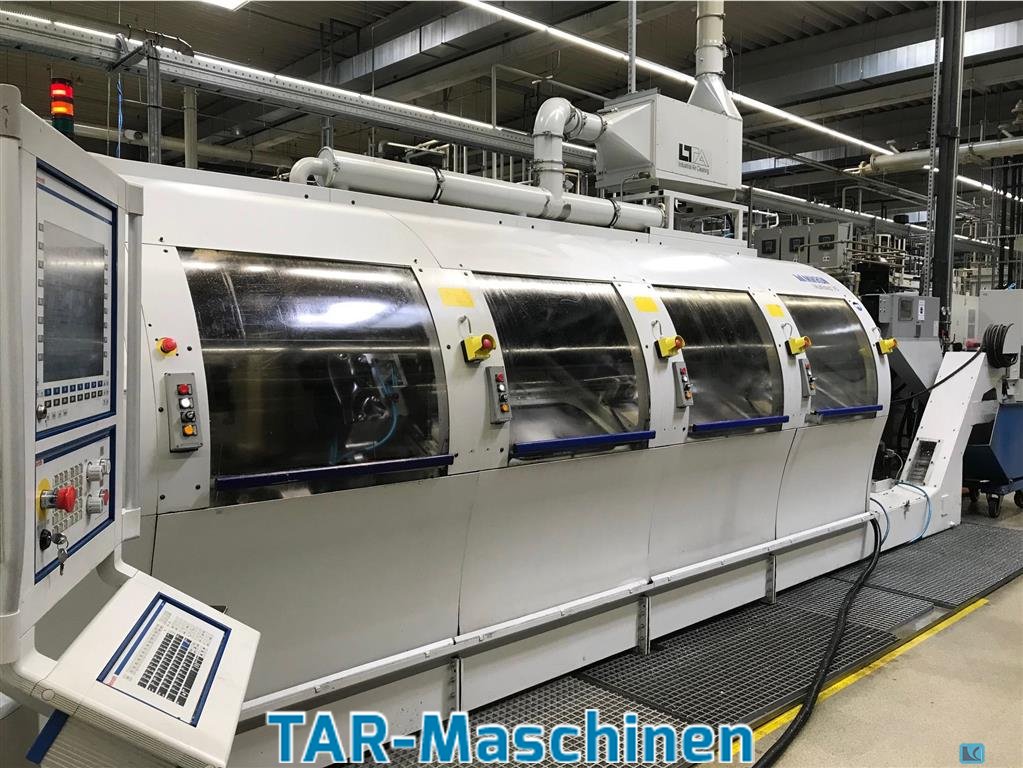

automatic switch plate1x saw unit with saw, head and saw valve 40/801x turning unit with turning valve 30/60 with flange9x units 30/60 with valve normal and flanges5x units 20/50 with valve normal and flanges1x oil distributor WK9; 1x bar feeder 4 meters; 1x chip conveyor VR500;1x hydraulic unit1 Knoll oil filterWithout collets and ejectors, without platform and without tool monitoring.supplied tooling may differ from the pictures.We can send you more pictures.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

DIMENSIONS / WEIGHTS:. - total height:900 mm

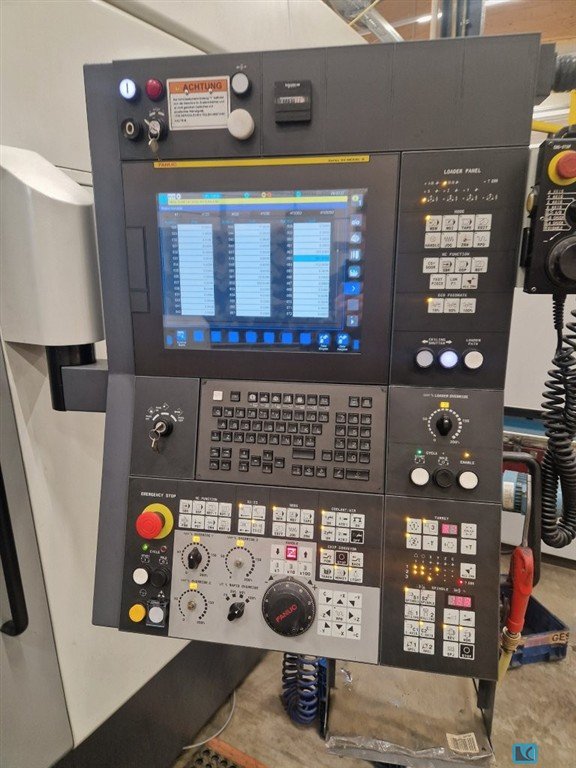

turning diameter:220 mmturning length:- mmcontrol:- distance between milling spindels:800 mmspindle speed max.:12.000 U/mindaylight:66 mmmachine weight ab.:11 ttotal power requirement:90 kVAFanuc controlTwo turretsTwo spindlesSpindle bore 66 mm on both spindlesTwo Y-axesParts gripperHainbuch chuck on both spindlesTailstock functionChip conveyorTool eyeShort bar loaderTool holder package

DIMENSIONS / WEIGHTS:. - total height:35 mm

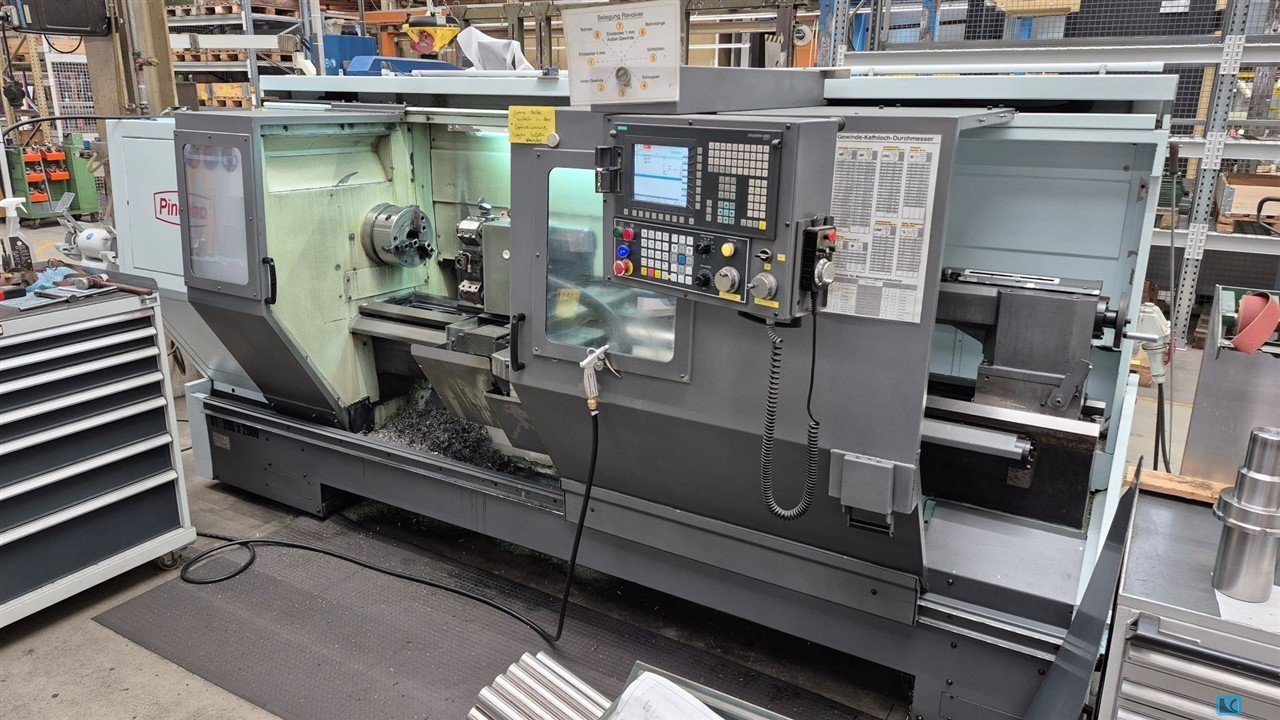

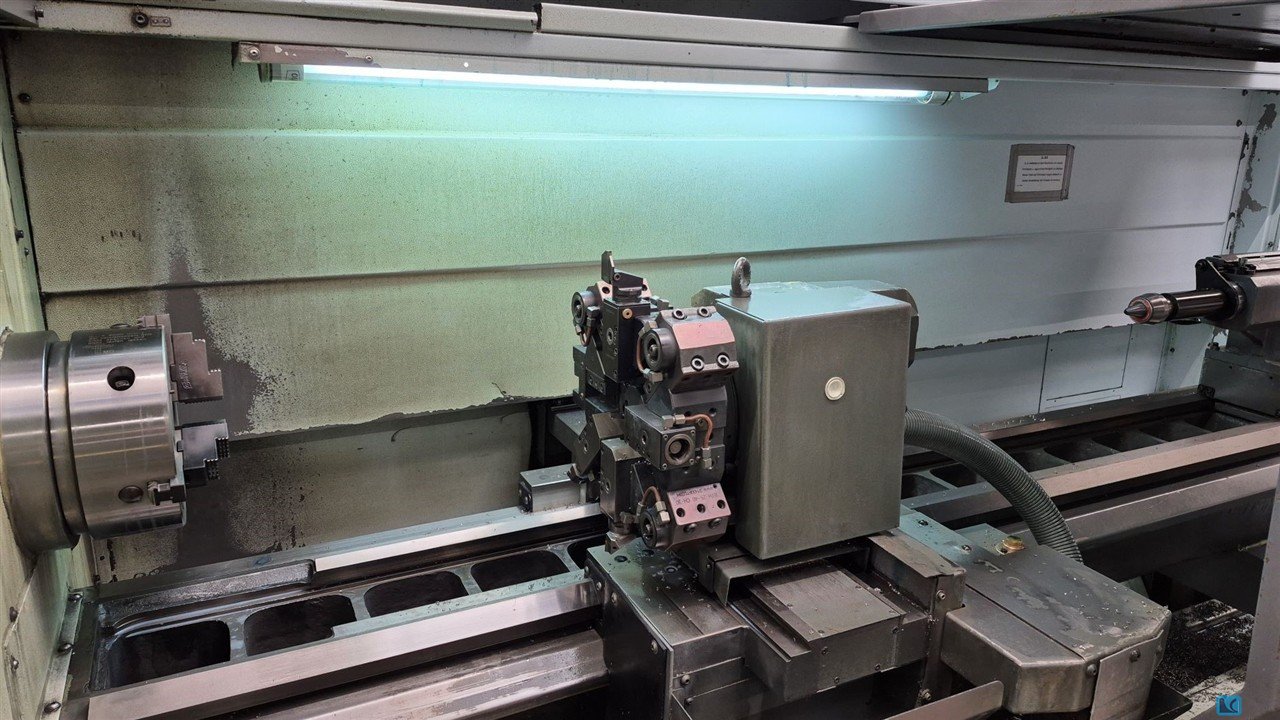

turning diameter:570 mmturning length:- mmcontrol:- Diameter of rotation above the bed slide:360 mmMaximum width:2.000 mmrevolutions per minute:max. 2500 U/min:11 kWmax. longitudinal feed:7,5 m/minmax. transverse feed:7,5 m/minrapid traverse longitudinal:12 m/minrapid traverse cross:15 m/minPinole diameter:95 mmPinolenhub:220 mmPinolen intake: MK 5 weight of the machine ca.:2,97 tdimensions of the machine ca.:3,8m x 1,3m x 2m mTechnical description:- Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc- Machine bed - made of perlite casting GG-26- high stiffness due to strong ribbing- Bed slides - guideways hardened and ground- automatic lubrication of the bed rail- Reitstock - manual- Quick clamp- Operator station - two movable handwheels on the operator panel- a movable handwheel- Control - "Siemens 828 D" CNC control- Siemens "Comfort" (including Shopturn and re ...

Automatic bar loading magazine for single spindle automatic lathe / short lathe, newTEST the new DB-EVO bar loader4 WEEKS, NON-BINDING, FREE OF CHARGE (conditions on request)very high speeds even with profile materialManufacturer: Giovanni CucchiMachine type: Automatic bar loading magazine for single-spindle / short turningType: DB-EVODesign: Surface loading magazine or bundle loading magazinediameter range: 20-110mmDB-EVO at a glance:Scope of delivery and optionally orderable functions:- oriented loading of the bar material possible (e.g. edge upwards) - optional feeding of saw cuts and short parts possible - optional- Monitoring and fault diagnosis (touch screen)- Surface magazine- Bundles and other variants possible- automatic loading of short bars- Trays for tools- low power consumption (start/stop function)- Available in versions for 1.5, 1.8, 2.5, 3.3, 4.2 and 6.1 meter rod length  ...

DIMENSIONS / WEIGHTS:. - total height:1000 mm

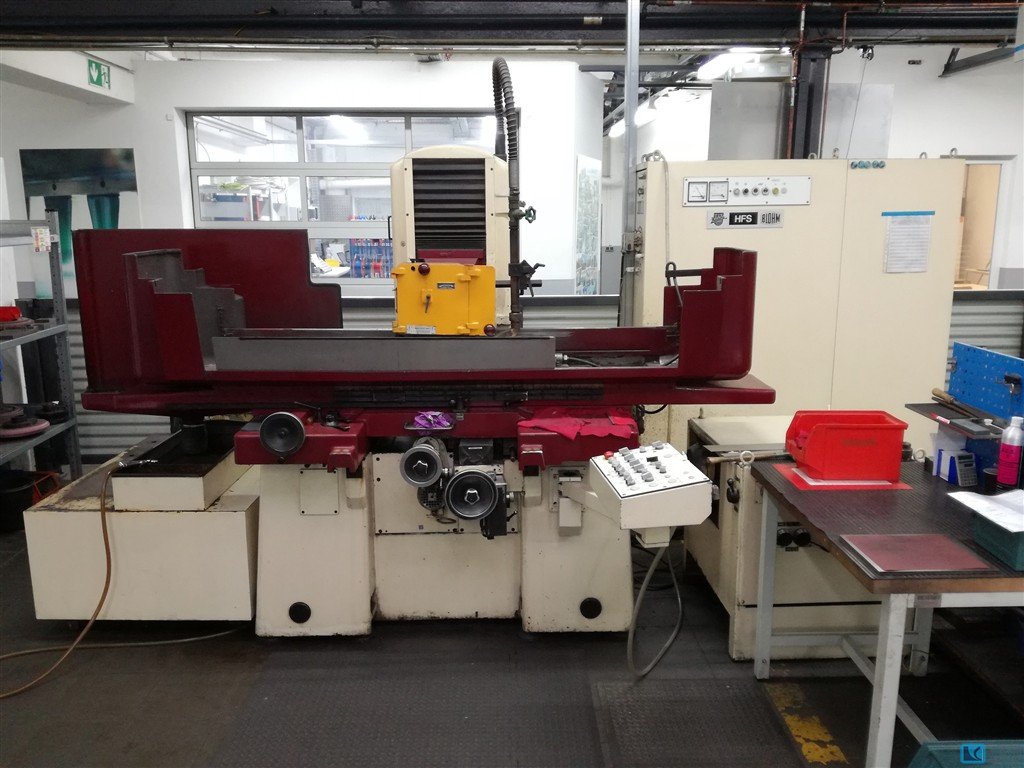

grinding length:900 mmgrinding width:400 mmworkpiece height:450/530 mmtable clamping surface LxW:1.320 x 300 mmmagnetic plate size:880 mm x 280 mm mmFinimaticCreep speedAdd-on for DiaformRectifier systemCoolant deviceInfinitely variable grinding clamping drive

Bar loading magazine for multi spindle automatic lathe, newManufacturer: Giovanni CucchiMachine type: Bar loading magazine for multi-spindleType: CMSP/CMSPFDesign: Side loader as surface loading magazine or bundle loading magazineCMSP / CMSPF at a glance:Proven technology - in use for decadesThe material feed of this loader generation is carried out by the loading magazine. Bar loading magazines CMSP/CMSPF are mounted on rails, so they can be easily disconnected from the machine at any time by unlocking them at the quick release.These magazines do not require bar tubes on the machine and are screwed directly to the machine. It is possible to work in automatic mode as well as in manual mode.The magazine is mounted on rails, so it can be easily disconnected from the machine at any time by the operator by unlocking it on the machine. To change bar diameters, only the clamping sleeves of the ...

DIMENSIONS / WEIGHTS:. - total height:1000 mm

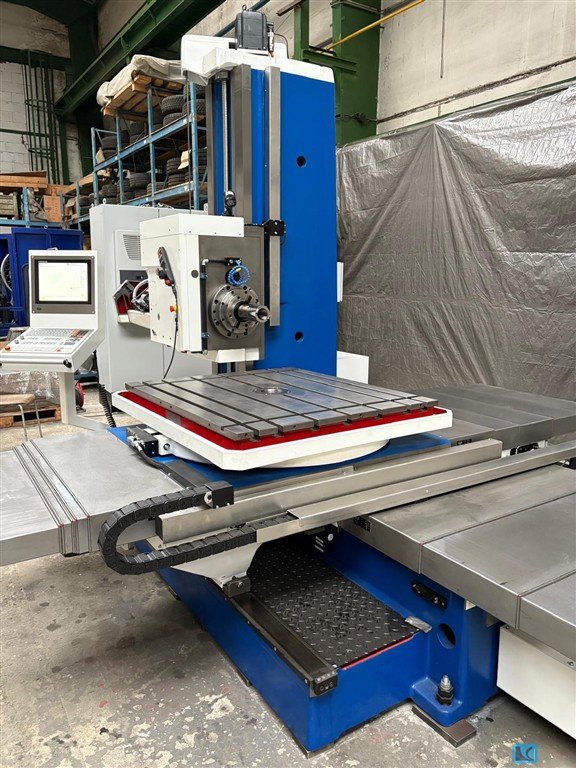

spindle diameter:100 mmx-travel:1250 mmy-travel:1100 mmz-travel:950 mmspindle turning speed range:2500 U/minRotary-table:1100 x 1000 mmtable surface area:1000 x 1100 mmtool clamping:69871 DIN spindle stroke:630 mmspindle taper:SK50 total power requirement:22/34 kWmax. workpiece weight:3000 kgweight of the machine ca.:13000 kg

DIMENSIONS / WEIGHTS:. - total height:900 mm

travel -x axis:800/1825 mmtravel -y axis:800/460 mmtravel -z axis:600 mmFeeding X,Y,Z up to:0 - 40/40/40 mm/min.swival range +/-:+10 bis -90 x 360 GradRotary-table:800 x 630 mmnumber of T-slots:5 T-slot - distance:125 mmT-Slots:18 mmcenter hole:30H7X15 mmswival range +/-:90 Gradturning speed:20 m/min.Number of axles:3-7 St.Spindle RPM:12.000 1/minmax. tool weight:10 kgmax. tool length:330 mmdiameter of tools max.:80 mmtool changing time:4 secCNC control with15.1" color flat-screen19" machine control panelPCU 50 with Intel Pentium IIWindows XP10.0 GB hard drive

turning diameter:500 mmturning length:1500 mmTechnical Specifications:·Turning diameter over cross slide: 290 mm·Spindle bore: 71 mm·Speed range: 3?2,800 rpm·Rapid traverse speed: 10 / 5 m/min·Feed rate: 1?2,000 mm/min·Total power requirement: 22 kW·Machine weight: approx. 3.2 t·Space requirement: approx. 3.0 × 1.6 × 2.0 m

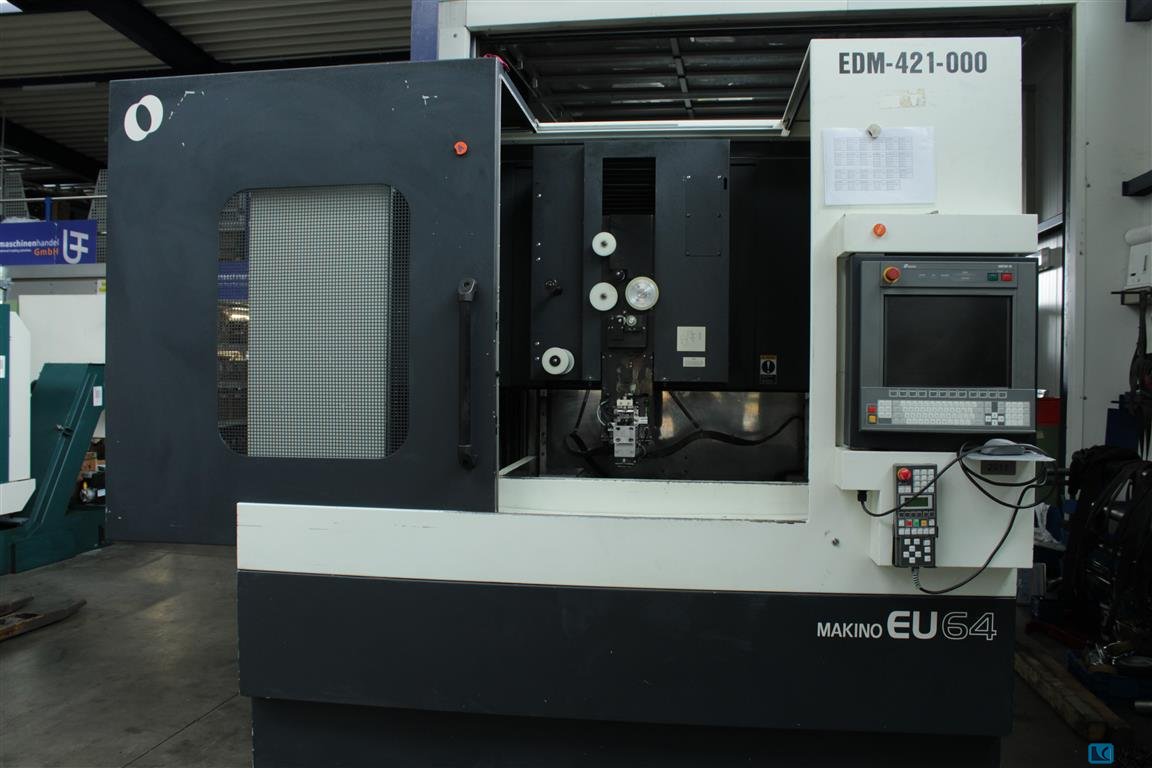

Erodiermaschine, gebrauchtBaujahr: 1989Bitte kontaktieren Sie uns für weitere Informationen und Bilder über mail(at)tar-mc.com oder www.tar-mc.com

Capacity: 225 x 225 x 6mm, equipped with adjustable guides and turret punch Auction-ID: A1-49000-35

LINEAR AXLE:. - Number of moving slides:2 DIMENSIONS / WEIGHTS:. - space requirements length:15000 mm

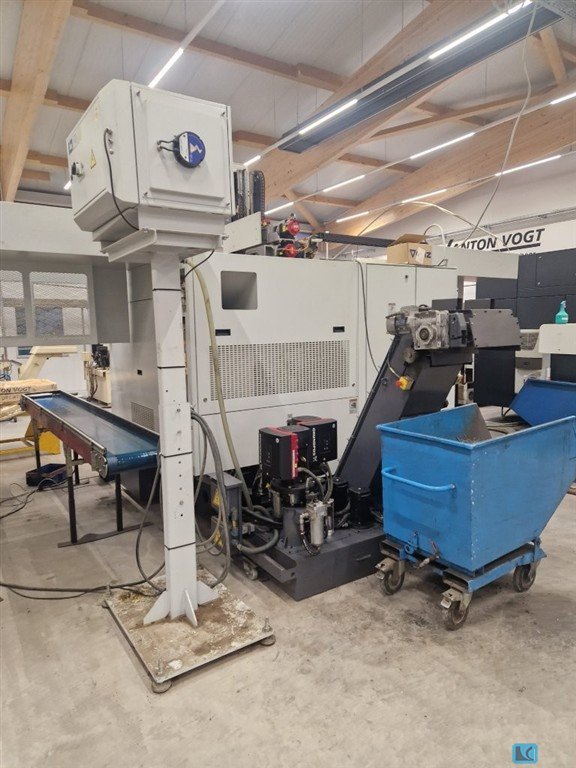

turning diameter:356 mmturning length:700 mmy-axis:±60 mmspindle drive:18 kWcounterspindle motor:15 kWDirect drive for driven tools:5,5 kWMotor starting torque:640 NmMain spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mmmain spindle speeds::4.000 U/minDrehzahl angetriebene Werkzeuge :6.000 U/minrapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg12-station turret, all positions drivenC-axis on both spindlesBelt-driven and infinitely variable drive on all motorsPrismatic guideways on all axesOil cooler for both spindles, manufacturer DaikinAutomatic, dialog-guided programming system MAPPSAutomatic monitoring of tool load and tool wearTwo Renishaw measuring arms for automatic tool measurementInterfaces: USB, PCMCIA card, and RS-232 portInterface for bar feederAutomatic parts catcherDual foot pedal for independent opening and closing of the chucks  ...

LINEAR AXLE:. - Number of moving slides:2 DIMENSIONS / WEIGHTS:. - space requirements length:7000 mm

Hartner Multi-Step DrillsPrecision reimagined. Efficiency made tangible. Made in Germany.The multi-step drills are the intelligent further development of classic HSS and HSS-E twist drills. Thanks to their innovative step-drill geometry, the drills deliver significantly higher performance, greater precision, and noticeably improved drilling comfort in daily use.What makes the multi-step drill so special? Unlike conventional HSS drills that machine material in a single cutting action, the multi-step drill works in several defined cutting stages. The result is smooth, low-vibration operation with significantly lower force requirements.Additional advantages include optimal chip removal, perfectly round and precise holes, and almost burr-free hole exits. Even when used with hand drills and cordless drills, the special geometry enables controlled drilling without jamming or slipping in the dr ...

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:10000 mm

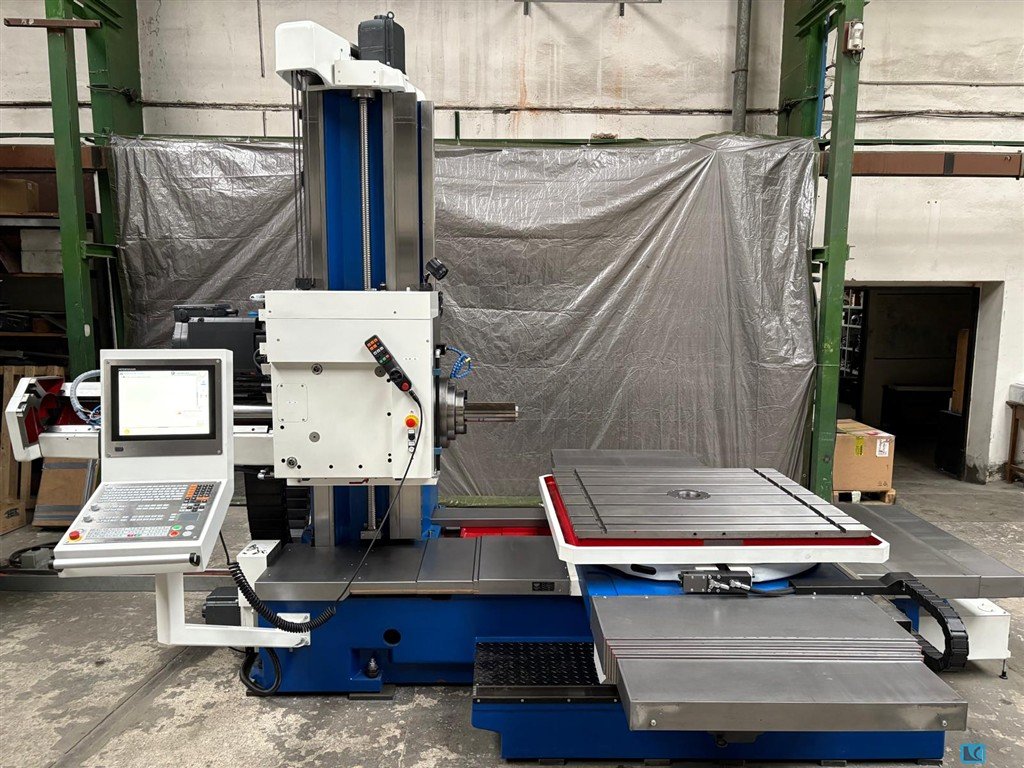

x-travel:3500 mmy-travel:2500 mmz-travel:1250 mmw-axis:800 mmbore spindle speeds:2500 U/mintable load:12 tdia. of rotary table:1800 x 2200 mmnumbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf? 12-month warranty and guarantee on geometric accuracyScope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, linear s ...

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm

bore capacity in steel (diameter):50-60 mmarm length:1.600 mmweight of the machine ca.:5-7 tspindle taper MT:wahrscheinlich MK5
