outras máquinas para trabalhar o metal usadas para venda (11,403)

faceplate diameter:1400 mmswing diameter:2000 mmturning height:1500 mmmain drive:80 kWfaceplate speeds from - to:1 - 365 U/minmilling motor:37 kWram head dimension:240 x 240 mmmax. ram stroke:1250 mmtotal power requirement:133 kVAweight of the machine ca.:50 tdimensions of the machine ca.:11 x 5 x 6,4 mMachine was overhauled in 2008 by OEMNew control CNC SIEMENS 840 Dautomatic tool changer 72-pcsC-axis with driven toolsAngle-, straight tool holders with CAPTO holder Coolant deviceChipconveyour

x-travel:6.300 mmy-travel:2.000 mmz-travel:2.700 mmtool taper:ISO 50 surface area:7.000 x 3.000 mmturning speed range:60 - 4.000 U/minpower capacity:22/30 kWfeeds:0 - 10.000 mm/minrapid traverse:20.000 mm/minTool changer:80 max. workpiece weight:8.000 kgPlate clamping area 7,000 x 3,000 mmCNC rotary table 1,500 mmOrthogonal milling headDeep drilling unitIKZPaper belt filterMeasuring probe

x-travel:1660 mmy-travel:760 mmz-travel:660 mmweight of the machine ca.:8700 tdimensions of the machine ca.:4.320 x 3.380 mmdistance spindlenose - table min./max.:808 mmdistance work spindle /surface of the table:155 - 815 mmMachine height:2850 mmfloor space required (w/o switchgear cabinet):4.320 x 3.380 mmspindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kWtool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/minsurface area:2.000 x 760 mmmax. table load:1.000 kgfeeds X-axis:1 - 5.000 mm/minrapid traverse X-axis:24.000 m/minrapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/minfeeds Z-axis:1 - 5.000 mm/minrapid traverse Z-axis:20.000 m/min

Technical data Max. pressure: 30 tons Number of strokes: 100–600 Drive power: 0.96–5.5 kW Frequency: 50/60 cycles Control Current: 24 V AC Compressed air connection: R 1/2" Operating pressure: 6–10 bar Adjustable stroke: 8-40 mm Adjustable ram height: 40 mm Belt running height from clamping plate: 50 + 100 mm Max. cutting thickness / drawing depth: 4 mm (according to table) Configuration Machine height: approx. 2150 mm Width: approx. 1200 mm Depth: approx. 1160 mm Weight: approx. 2500 kg Suitable for: Stamping and forming work up to 30 t press force

turning diameter:145 mmturning length:210 mmtotal power requirement:40 kWswing diameter:145 mmSpindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mmgreates pass round over bed:145 mmRPM Main Spindle:7.000 1/minnumber of workpiece supports:12 Shank diameter:25 mmC-axis RPM:2.000 1/minChuck diameter spindle 1:140 mmChuck diameter Spindle 2:140 mmNumber of tools:12 fach St.Tool bore:VDI 25 Shank diameter:25 mmweight of the machine ca.:5.300 kgdimensions of the machine ca.:5.000 x 4.100 x 2.050 mmSlide path flat: X1, X2, X3: 220mm, 120mm ( 145mm )Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mmVertical slide travel Y1: +/- 30mmLongitudinal spindle travel Z3: 380mmClamping tube inner draw tube 46mm diameterSpeed range main drive 1+2 up to 7,000 rpmSpeed of driven tools up to 6,000 rpmMain and counter spindle collet chuck1 axial driven tool1 radial to ...

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmSpeed of boring spindles:1,25 - 1250 U/min.ram stroke:700 mmdimension of the ram:340 x 340 mm mmspindle taper ISO:50 rapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mCNC control Siemens 840 Dsl completely modernized 2010FIBRO CNC drilling work table 2500 x 2500 mm50 to. workpiece weightLongitudinal travel 2500 mmAngular milling head 4 x 90°Universal angular milling headPanel area approx. 10000 x 5000 mmChip conveyor and coolant deviceAerostatic guides

x-travel:635 mmy-travel:510 mmz-travel:460 mmturning speed range:20 - 10.000 U/mintool taper:SK 40 table clamping surface LxW:790 x 560 mmMachine with glass scalesFull safety cabin with sliding doors + interior lightingHeight-adjustable machine shoes 3 pcs.

x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nmtool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/mindistance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mMachine is in nearly new condition and was completely modernized in 2020!With CNC SIEMENS 840 DAutomatic tool magazine for 153 tool positionsAutomatic milling head magazine for 6 milling headsMachining module ? straight ? straight long ?Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50 ...

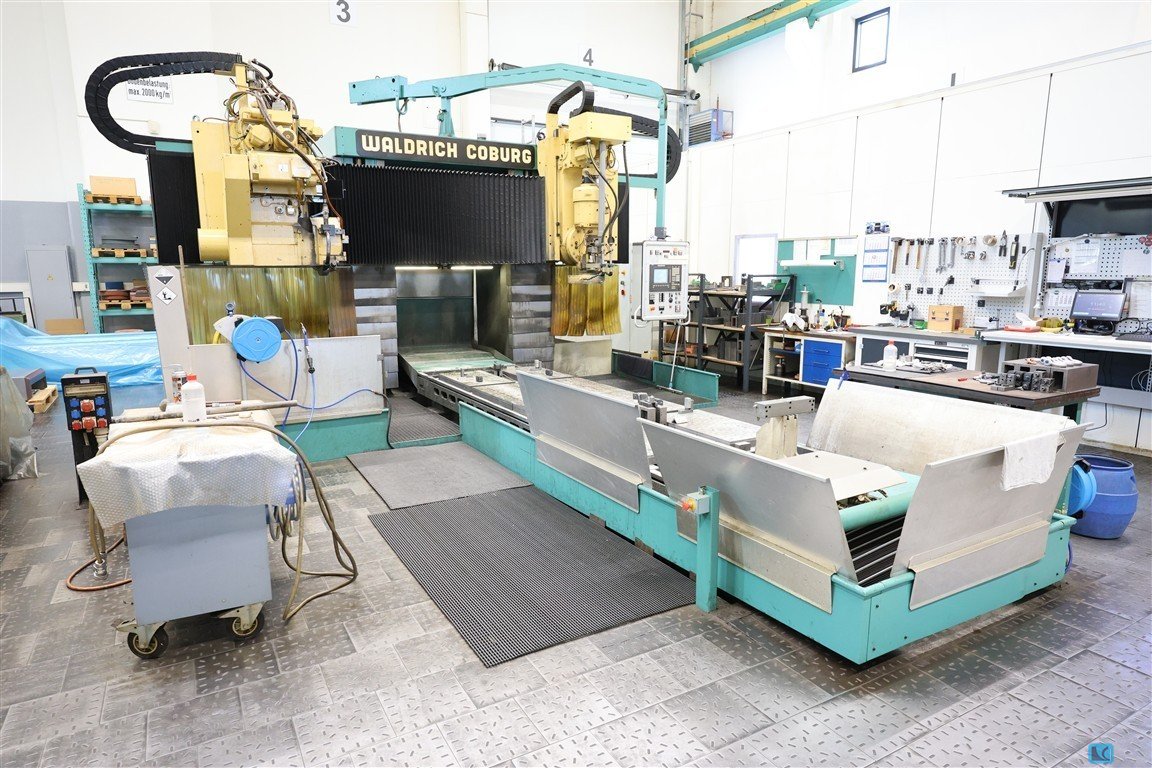

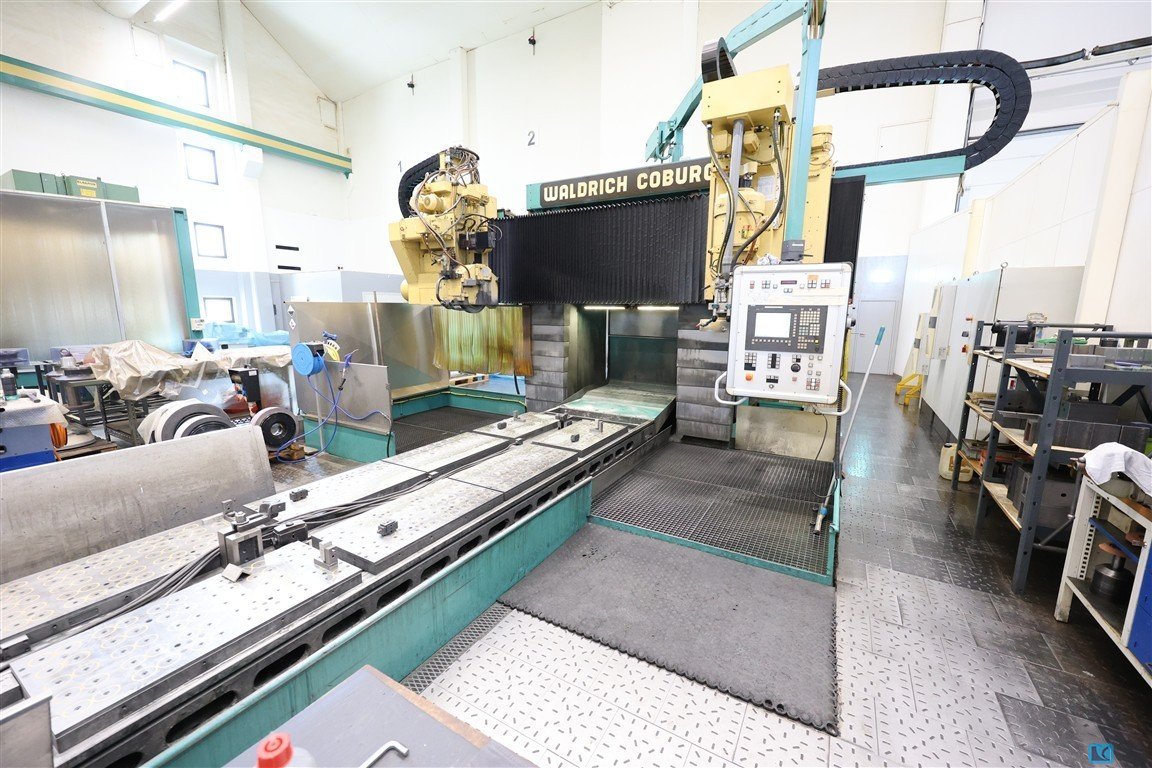

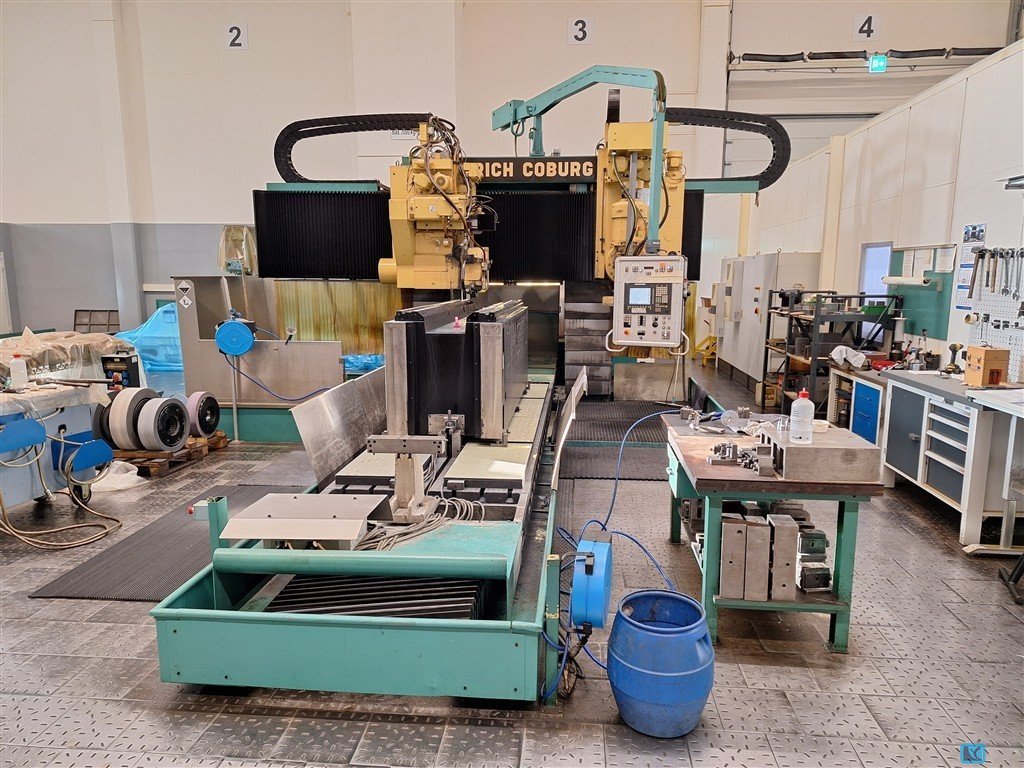

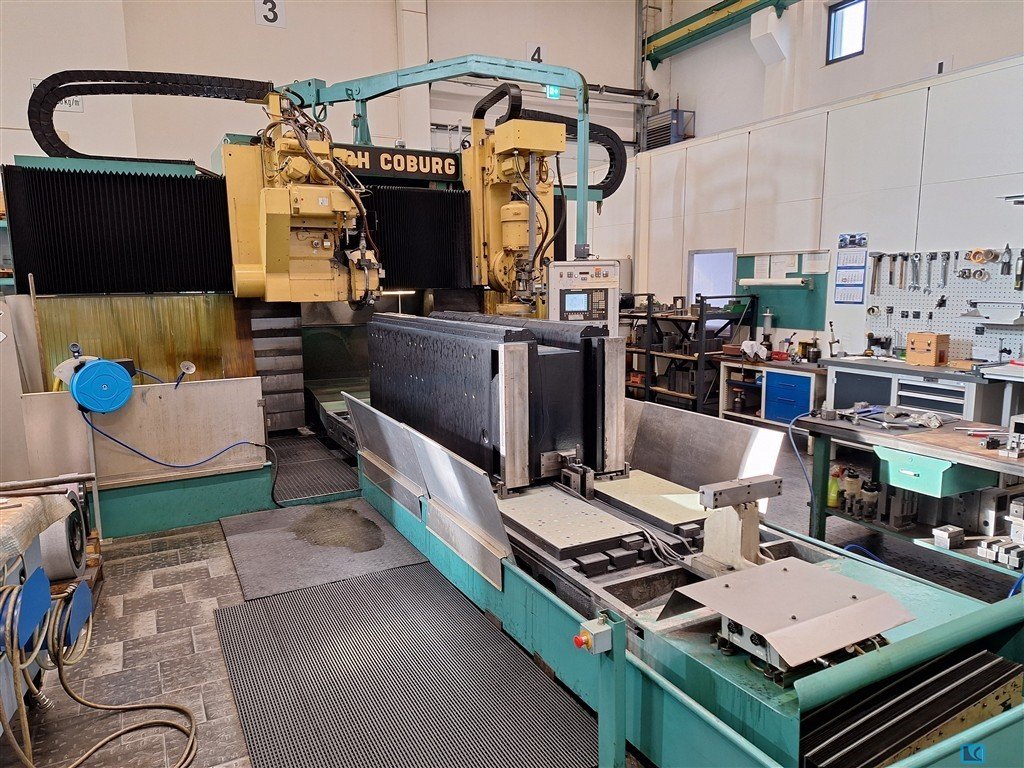

grinding length:4000 mmgrinding width:1450 mmworkpiece height:1250 mmtotal power requirement:40 kWdimensions of the machine ca.:12,3 x 6 x 4,8 mdistance between columns:1460 mmtable surface area:4000 x 1250 mmmax. workpiece weight:11.000 kgcross rail adjustment:1250 mmMachine is in very good condition for highest precision!With CNC control SIEMENS 840 D1 universal grinding support, 7.5 kW, swivelling grinding spindle ±110°Peripheral grinding wheel dimensions Ø 500 x 60 mmVertical adjustment 350 mm, with dressing device1 peripheral grinding support, 22.5 kWGrinding wheel dimensions Ø 600 x 100 mmVertical adjustment 150 mm, with dressing deviceWith 6 magnetic plates arranged on the tableVarious grinding wheel holders

x-travel:1.100 mmy-travel:900 mmz-travel:1.250 mmtool length:750 mmrapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daNfeed capacity Z - max.:17.000 Nspindle taper:SK50 max. workpiece weight:1500 kgrevolutions per minute:10.000 U/minpallet table size:630 x 630 mmtool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

Punching capacity 28x13 mm, flat steel shear capacity 300x10 mm and 200x13 mm, angle steel shear capacity 80x80x8 mm, round steel shear capacity 30 mm, square steel shear capacity 30 mm

bore capacity in steel (diameter):- mmthroat:- mmbore stroke:- mmx-axis:1.800 mmy-axis:1.600 mmz-axis:1.250 mmw-axis:630 mmmax. table load:5.000 kgtable length:1.400 mmtable width:1.600 mmspindle diameter:105 mmspindle turning speed range:3.300 U/minnumbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary tableChip ConveyorOil cooling unit (chiller)Touch probe Renishaw RMP60Upgrades in 2024 and 2025Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZNew linear scales Heidenhain in X and Z axis including cablingretrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axisnew TOS Varnsdorf parts for tool clamping and automatic tool changer armOverhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor)New Siemens hand wheel

turning diameter:220 mmturning length:- mmcontrol:- distance between milling spindels:800 mmspindle speed max.:12.000 U/mindaylight:66 mmmachine weight ab.:11 ttotal power requirement:90 kVAFanuc controlTwo turretsTwo spindlesSpindle bore 66 mm on both spindlesTwo Y-axesParts gripperHainbuch chuck on both spindlesTailstock functionChip conveyorTool eyeShort bar loaderTool holder package

spindle diameter:221,44 mmx-travel:2.000 mmy-travel:2000 mmz-travel:1.250 mmb-axis:360 °table-size:1600 x 1800 mmmax. workpiece weight:12.000 kgWork spindle:130 mmtool adaptor:SK 50 Tool changer:60 - Fach Ø Flange Hollow Spindle:221,44 mmMax. Ø centering cone:180 mmspindle stroke:800 mmturning speeds:400 ? 1600 U/minfeed::bis 8000 U/minTable rotation axis B:1,5 U/minweight of the machine ca.:32 tControl pedestal, electrically height-adjustable approx. 1200 mm,Sawdust Conveyor,

Consisting of drills in various sizes and designs, partly unused, incl. pallet, without stacker truck

MINT 15 pieces

turning diameter:570 mmturning length:- mmcontrol:- Diameter of rotation above the bed slide:360 mmMaximum width:2.000 mmrevolutions per minute:max. 2500 U/min:11 kWmax. longitudinal feed:7,5 m/minmax. transverse feed:7,5 m/minrapid traverse longitudinal:12 m/minrapid traverse cross:15 m/minPinole diameter:95 mmPinolenhub:220 mmPinolen intake: MK 5 weight of the machine ca.:2,97 tdimensions of the machine ca.:3,8m x 1,3m x 2m mTechnical description:- Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc- Machine bed - made of perlite casting GG-26- high stiffness due to strong ribbing- Bed slides - guideways hardened and ground- automatic lubrication of the bed rail- Reitstock - manual- Quick clamp- Operator station - two movable handwheels on the operator panel- a movable handwheel- Control - "Siemens 828 D" CNC control- Siemens "Comfort" (including Shopturn and re ...

EBU 80 – Single-column eccentric press – Year of construction 1971 • Manufacturer: EBU Pressen • Machine type: Single-column eccentric press • Type: EBU 80 • Year of construction: 1971 • Machine number: 293 • Press force: 80 t (at 30° before subtitles) • Adjustable stroke: 12–60 mm • Plunger adjustment: 80 mm • Plunger stroke rate: 37–147 strokes/min • Weight: approx. 5,200 kg Dimensions (approx.) • Height: 2,500 mm • Width: 1,500 mm • Depth: 1,800 mm Equipment & Design • Mechanical eccentric press in heavy casting design • Large work table with T-slots • Adjustable stroke • Pneumatic unit with pressure regulator and pressure gauge • Side-mounted control cabinet with controls • Flywheel with protective cover • Tool holder on the ram Condition • Used machine • Signs of wear and tear due to age and use • Paint chipping and dirt  ...

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length:900 mmgrinding width:400 mmworkpiece height:450/530 mmtable clamping surface LxW:1.320 x 300 mmmagnetic plate size:880 mm x 280 mm mmFinimaticCreep speedAdd-on for DiaformRectifier systemCoolant deviceInfinitely variable grinding clamping drive

spindle diameter:100 mmx-travel:1250 mmy-travel:1100 mmz-travel:950 mmspindle turning speed range:2500 U/minRotary-table:1100 x 1000 mmtable surface area:1000 x 1100 mmtool clamping:69871 DIN spindle stroke:630 mmspindle taper:SK50 total power requirement:22/34 kWmax. workpiece weight:3000 kgweight of the machine ca.:13000 kg

ParameterValueModel NameHerkules 450/10/50TypePiston Air CompressorTank Capacity50 litresMax. Operating Pressure10 bar Motor Power2.2 kW / ~3 HPVoltage230 V AC Frequency50 HzEngine Speed2800 rpmAir Intake Capacity400 L/minAir Delivery (Effective)320 L/min Noise Level95?97 dB Number of Cylinders2 (twin cylinder)LubricationOil-lubricated systemTypical UsesHome workshop, tire inflation, air tools, painting

Untested, a pallet and a lattice box as loading aids

Performance·Max. motor power: 30 kW·Max. engine speed: 10,000 rpm·Rated torque (test bench): > 100 Nm·Max. braking torque: up to 122 Nm·Max. braking power: up to 46 kW (overload)Dynamometer·Type: AC asynchronous dynamometer, frequency-controlled·Voltage: 360 V·Cooling: Forced ventilation (IC06)·Protection class: IP23·Insulation class: F·Speed range: 0 ? 10,000 rpm·Continuous operation: up to 40 kW (depending on speed)·Overload capability: 1 min every 10 minMeasurement System·Torque measurement:oHBM T12HP torque flangeoMeasurement range: 200 NmoAccuracy class: 0.02·Speed measurement:oIncremental encoder, 1024 pulses/revoAccuracy: ±0.01 rpm·Vibration monitoring:oIntegrated vibration sensorMechanical Structure·Slotted base plate with air suspension (Bilz air springs)·Vibration-damped test bench·Motor mounting system:oAdjustable aluminum frameoMax. motor weight: 500 kgoCo ...

Rated power: 19 kVA; Rated current: 29 A; No-load voltage: 280 V; Output current adjustment: 30-120 A; Rated output voltage: 128 V; Max cutting thickness: 45 mm; Cyclic duration factor: 60%; Efficiency: 80%; Insulation grade: F; Protection grade: IP21; Arc-start: Contact 6093

Max. basket weight:50 kgTemperature for washing water:0-60 °CElectrical heating power:2 kWRated power supply:230 VMachine size LxWxH:600x800x1650 mmMachine weight:90 kgDIMENSIONS DxWxH600x800x1650 mmPOWER SUPPLY230 VDETERGENTwaterPUMP POWER1.2 kWTANK CAPACITY100 lLOAD CAPACITY50 kgHEATING ELEMENTS POWER2 kWHEATING TEMPERATURE0-60°WORKTOP DIMENSIONS750x550 mmWEIGHT90 kg

travel -x axis:800/1825 mmtravel -y axis:800/460 mmtravel -z axis:600 mmFeeding X,Y,Z up to:0 - 40/40/40 mm/min.swival range +/-:+10 bis -90 x 360 GradRotary-table:800 x 630 mmnumber of T-slots:5 T-slot - distance:125 mmT-Slots:18 mmcenter hole:30H7X15 mmswival range +/-:90 Gradturning speed:20 m/min.Number of axles:3-7 St.Spindle RPM:12.000 1/minmax. tool weight:10 kgmax. tool length:330 mmdiameter of tools max.:80 mmtool changing time:4 secCNC control with15.1" color flat-screen19" machine control panelPCU 50 with Intel Pentium IIWindows XP10.0 GB hard drive
