outras máquinas para trabalhar o metal usadas para venda (11,403)

Technical specifications of the accessories Accessories: Press protection grille Manufacturer: LEINHAAS – NILSON, 646 Gelnhausen Type: Nilson Press Guard SDF Factory No.: 1120 Year of manufacture: 03/1979 Configuration Execution: Mechanical press protection grille

Keyence Digital Measuring Projector ? Model XM-1600General:Digital measuring projector with a high resolution image measurement system and very easy operation. Place the part on the stage and measure by pressing a button. Supports automated measurements of up to 300 dimensions within seconds.Measuring Head / Control Unit:·Sensor: Monochrome CMOS 1 inch, 20 megapixels·Display: 12.1 inch LCD monitor (WXGA 1280 x 800)·Lens: Double telecentric lensMeasuring Field and Measuring Range:·Standard measuring field: approx. 100 mm diameter·Precision mode measuring field: approx. 25 x 25 mmMeasurement Accuracy and Repeatability:·Display resolution: 0.1 micrometer·Repeatability (standard, without stage movement): approx. plus minus 1 micrometer·Precision mode (without stage movement): approx. plus minus 0.5 micrometerStage / Travel Axes:·XY measuring stage: motorized·Z axis: approx. 75 mm,  ...

turning diameter:500 mmturning length:1500 mmTechnical Specifications:·Turning diameter over cross slide: 290 mm·Spindle bore: 71 mm·Speed range: 3?2,800 rpm·Rapid traverse speed: 10 / 5 m/min·Feed rate: 1?2,000 mm/min·Total power requirement: 22 kW·Machine weight: approx. 3.2 t·Space requirement: approx. 3.0 × 1.6 × 2.0 m

turning diameter:356 mmturning length:700 mmy-axis:±60 mmspindle drive:18 kWcounterspindle motor:15 kWDirect drive for driven tools:5,5 kWMotor starting torque:640 NmMain spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mmmain spindle speeds::4.000 U/minDrehzahl angetriebene Werkzeuge :6.000 U/minrapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg12-station turret, all positions drivenC-axis on both spindlesBelt-driven and infinitely variable drive on all motorsPrismatic guideways on all axesOil cooler for both spindles, manufacturer DaikinAutomatic, dialog-guided programming system MAPPSAutomatic monitoring of tool load and tool wearTwo Renishaw measuring arms for automatic tool measurementInterfaces: USB, PCMCIA card, and RS-232 portInterface for bar feederAutomatic parts catcherDual foot pedal for independent opening and closing of the chucks  ...

• Industrial Parts Cleaning Plant / Metal Degreasing Plant • Manufacturer: Pero AG Maschinen- und Apparatebau, D-86343 Königsbrunn • Type: V1/1/5-EX 6800 • Year of construction: 2008 • EX version Execution • Closed continuous cleaning system • Roller conveyor feeder with infeed and outfeed • Siemens SIMATIC Touch Panel Control • Integrated control cabinet • CE marking available • Electrical main switch mounted on the side • Heating capacity: 16 / 8.8 kW • Connection: 400 V / 50 Hz • Rated current: 34 A Dimensions (estimated by size) • Total length: approx. 5,500 mm • Overall width: approx. 2,200 mm • Total height: approx. 2,500 mm • Internal flow width: approx. 600 – 800 mm • Internal flow height: approx. 400 – 600 mm Weight (estimated) • Machine weight: approx. 4,000 – 6,500 kg • Transport weight incl. peripherals a ...

Hartner Multi-Step DrillsPrecision reimagined. Efficiency made tangible. Made in Germany.The multi-step drills are the intelligent further development of classic HSS and HSS-E twist drills. Thanks to their innovative step-drill geometry, the drills deliver significantly higher performance, greater precision, and noticeably improved drilling comfort in daily use.What makes the multi-step drill so special? Unlike conventional HSS drills that machine material in a single cutting action, the multi-step drill works in several defined cutting stages. The result is smooth, low-vibration operation with significantly lower force requirements.Additional advantages include optimal chip removal, perfectly round and precise holes, and almost burr-free hole exits. Even when used with hand drills and cordless drills, the special geometry enables controlled drilling without jamming or slipping in the dr ...

x-travel:3500 mmy-travel:2500 mmz-travel:1250 mmbore spindle speeds:2500 U/mintable load:12 tdia. of rotary table:1800 x 2200 mmnumbers of positions in the tool changer:60 Lifting operator platformExternal tool coolingSpindle clamping support

arm length:1.600 mm

6. Pallet system Pallet size: 500 × 630 mm 7.2 Tool magazine Magazine Type: Chain Stack slots: 80

turning diameter:570 mmturning length:635 mmtravel -x axis:220 mmtravel -z axis:635 mmTorque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fachmain spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mmweight of the machine ca.:5.300 t

2 pieces, without contents

turning diameter:500 mmturning diameter over bed:500 mmturning dia. over base-slide:290 mmcentre distance:1000 mmcentre height:250 mmz-travel:1350 mmspeeds:10 - 3000 U/min

Consisting of deep hole drills in various sizes and designs, incl. pallet, suitable for Lot 19

groove width:40 mmx-travel:1300 mmthroat:- mmy-travel:150 mmz-travel:200 mmtool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mmweight of the machine ca.:3,5 tCoolant systemDimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H)Hydraulic systemPartially overhauled

groove width:- mmx-travel:1300 mmthroat:- mmy-travel:150 mmz-travel:150 mmspindle speed::50/6000 uprtool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kgOperating hours: 2,100 hClamping hydraulicsPendulum operation possible8-position tool changer

Tool magazine Tool stations 80 pieces Maximum tool weight: 25 kg Maximum tool length: 500 mm Maximum tool diameter: 228 mm NC Rotary Table Division: 360,000 × 0.001° Swivel range: 360° Pallet changing system Pallet dimensions: 630 × 630 mm Coolant Setup Coolant pressure 50 bar

Basket size LxWxH:900 x 1.500 x 500 mmMax. basket weight:- kgNo. of washing chambers:1 filling amount:min. 270, max. 400 lMachine weight:2.000 kgdimensions of machine:2.650 x 1.945 x 1.870 mm

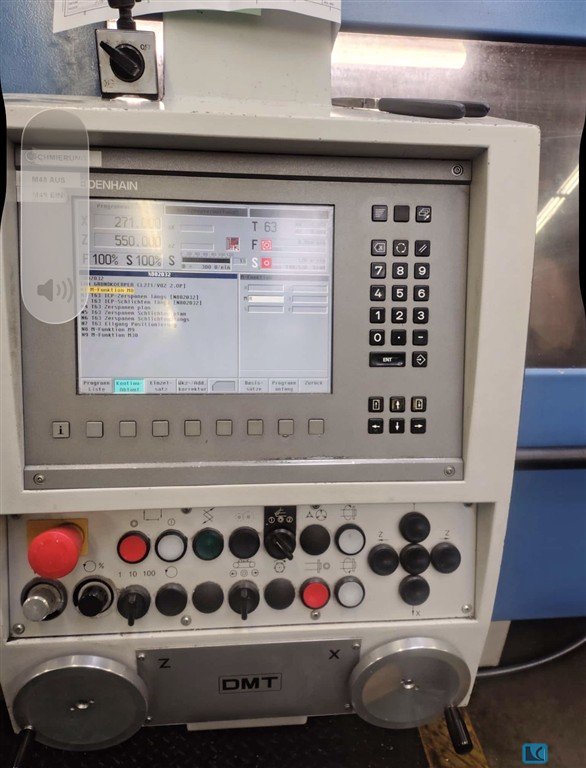

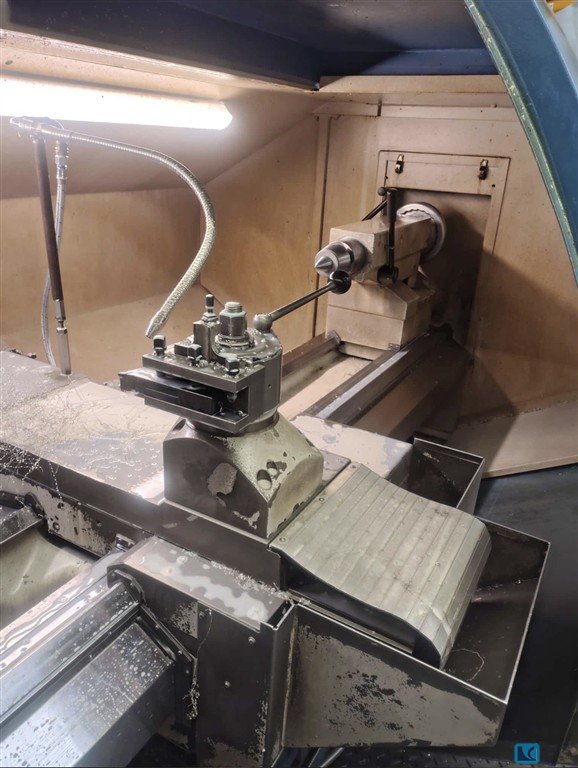

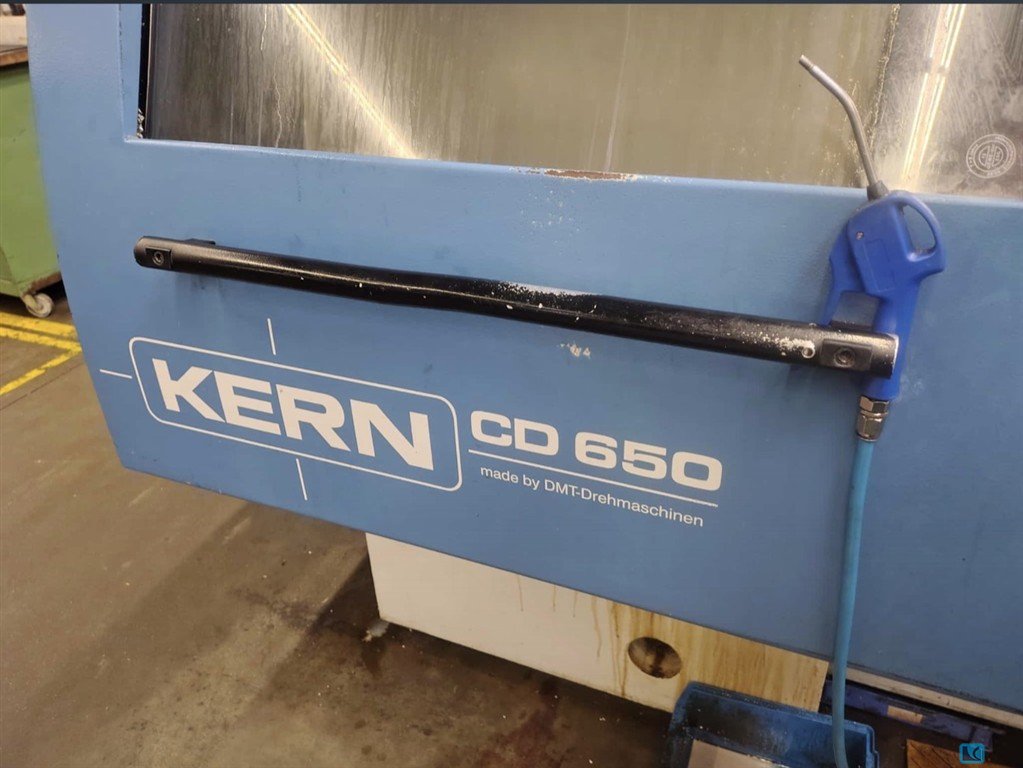

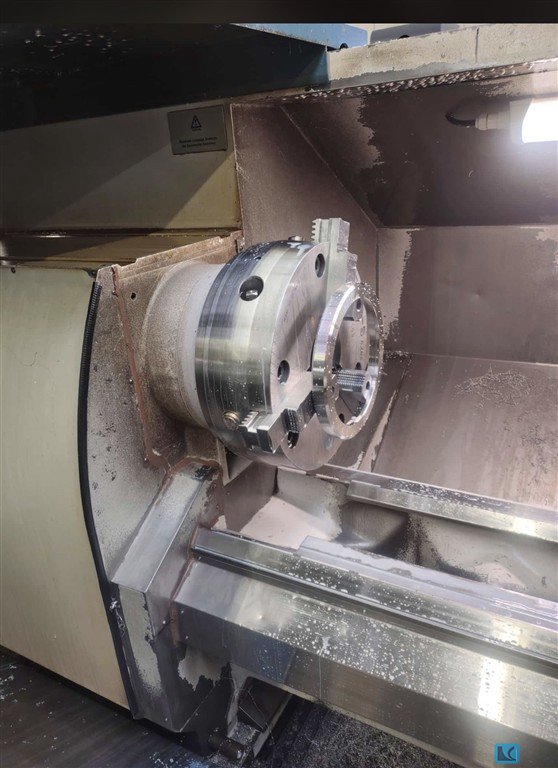

turning diameter:650 mmturning length:1.500 mmchucking diameter:400 mm

spindle diameter:150 mmx-travel:3.000 mmy-travel:2.000 mmspindle stroke:700 mmdimension of the ram:340 x 340 mmram stroke:700 mmcolumn travel:1.500 mmhigh speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/mintable surface area:2.000 x 2.500 mmmax. table load:25.000 kgrapid traverse speed:5/10 m/minfeed speeds:1 - 1.500 mm/minfaceplate speeds from - to:3,2 - 140 U/mindimensions of the machine ca.:8,4 x 6,8 x 5,9 mweight of the machine ca.:57 ttotal power requirement:100 kWFull B-axisAerostatic guidesCoolant system with IKZ

PEPPERAL+FUCHS Distance Sensor VDM28-50-R1-10/73c/110/122 , Part No. 232767 , New

x-travel:1.250 mmy-travel:880 mmz-travel:800 mmspindle turning speed range:1 - 10.000 U/minhigh speed spindle taper ISO:50 table-size:1.250 x 1.000 mmmax. workpiece weight: 2.000 kgfeed speeds infinitely variable:1 - 30.000 mm/minrapid traverse speed:40 m/minweight of the machine ca.:16 tdimensions of the machine ca.:7,2 x 4,4 x 2,9 m

Elotherm P1F die-sinking EDM machine, built in 1999, with CNC control and digital control panel. Machine with large working basin (basin size approx. 1900 × 1300 × 500 mm), control panel with integrated keyboard, screen and additional hand control unit (Elotrace). Extensive peripheral system with external filter technology: Franken Filtertechnik KG Type RF 70 Built in 1999 Volume 250 l Permissible operating overpressure 6 bar Permissible operating temperature 60 °C. Multi-stage filter unit, pump system and piping available. Integrated CO₂ extinguishing system with appropriate safety devices. Visible used condition with signs of wear due to age and duration. The system was in productive use in tool and mould making. Operating hours: 70,779.0h

turning diameter over bed:340 mmturning diameter over slide rest:190 mmturning length:700 mmspindle bore:50 mmshaving-spindle speed range:40 - 3.000 U/mindimensions of the machine ca.:2 x 1 x 1,6 mtotal power requirement:6 kWweight of the machine ca.:1,2 t

SICK Optex VT 180-N410 Optic Electronic, 6 008 790 , 0426S 12563 , Made in Japan

turning diameter over bed:570 mmturning diameter over slide rest:365 mmturning length:2.000 mmfeed per revolution:0,06 - 58/ 0,03 -28 mmspindle turning speed range:11,2 - 2.240 U/minspindle bore:62 mmspindle head:8 nach DIN 55022 total power requirement:15 kWdimensions of the machine ca.:4,5 x 1,5 x 1,4 mweight of the machine ca.:4,8 t

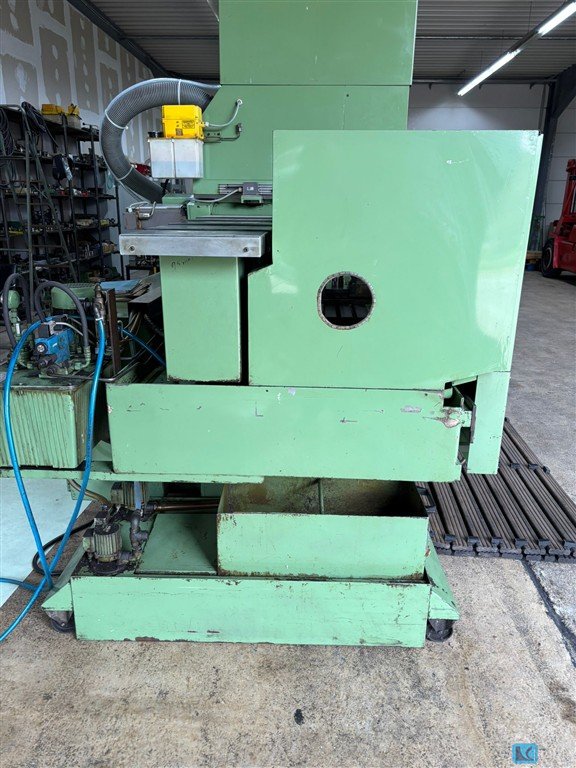

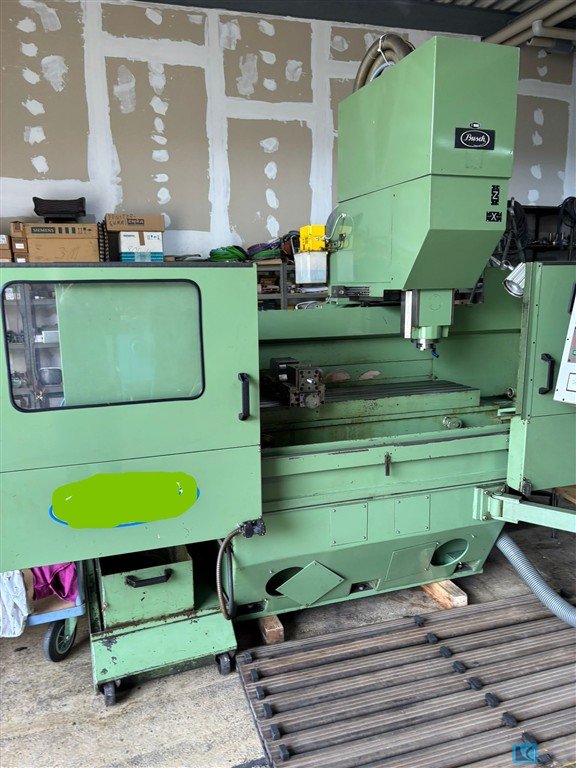

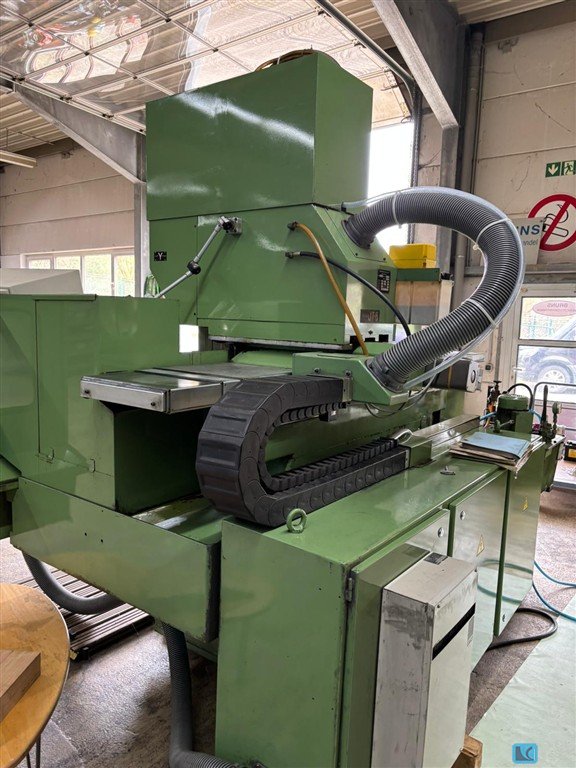

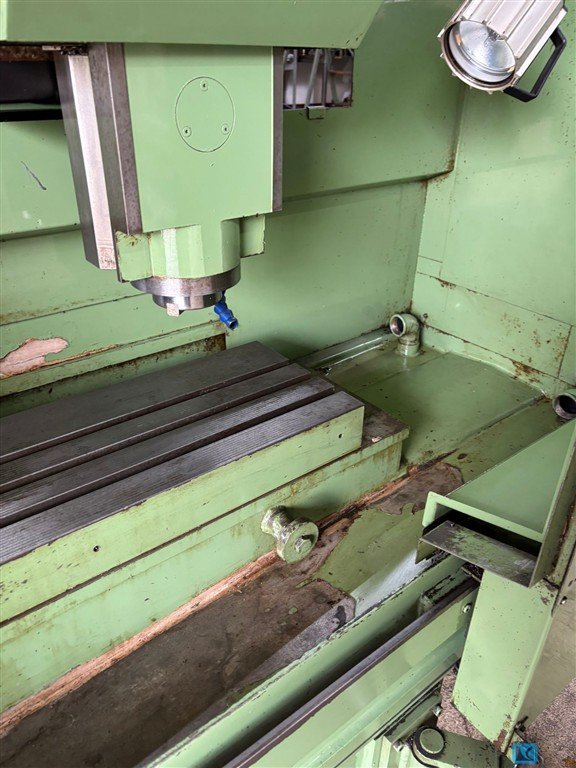

Table size 450x280 mm, incl. Heidenhain control
