tornos usadas para venda (2,947)

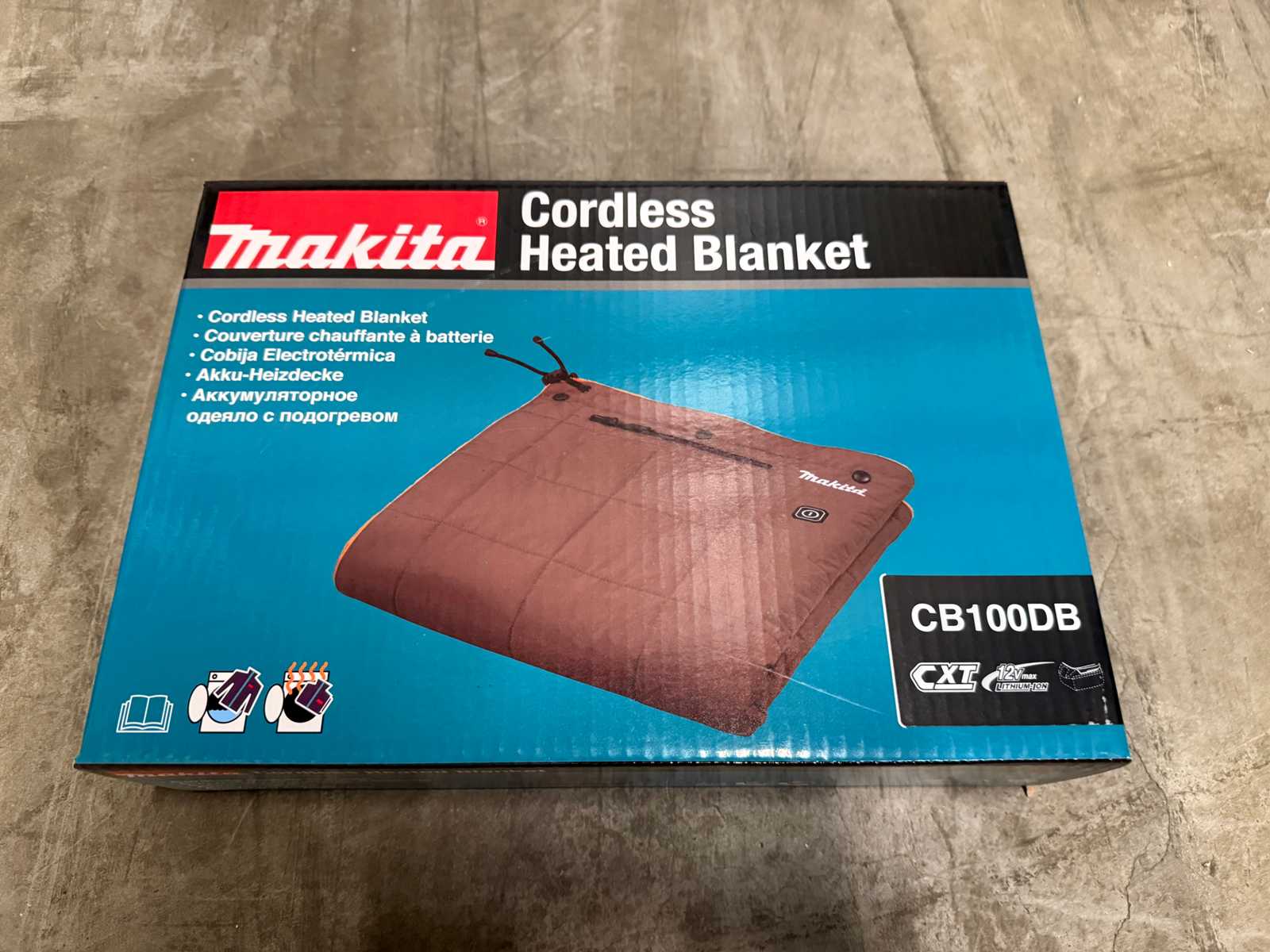

Without batteries and charger, including CXT adapter, extension cable and storage bag, in box Exterior of polyester fabric, interior fleece lined. Up to 14 hours of heating with one 12 V Max 4.0 Ah CXT battery. Comfortable heating by one heating element, centrally located at the top of the blanket. Battery connection in storage pocket with zipper, on the side of the blanket. Adapter for CXT battery and 1.5 meter extension cable are included, adapter is equipped with extra USB connection. Equipped with press studs and drawstring, blanket can also be worn around waist or shoulders. Preselection of three heating levels by button with LED indication of the selected mode. Suitable for washing machine and dryer (see user manual).

Control: Fanuc 18 iTB Max. turning diameter: 190 mm Max. turning length: 620 mm Greatest: pass round over bed: 190mm Swing dia. over traverse guideway: 190mm Standard turning diameter: 170mm Max. distance between spindles: 970mm Main spindle: - Max. spindle speed: 4.500rpm - Power capacity - main spindel: 18,5 / 15 kW - Spindle bearing diameter: 110mm - Spindle bore: 80mm - Max. bar capacity: 65mm - Spindle nose: A2-6 - Max. chucking diameter: 165mm - C-Axis 0,001 ° Subspindle: - max. spindle speed: 5000rpm - power capacity - Sub spindle 11 / 7,5 kW - spindle bearing diameter: 90mm - spindle bore: 63 mm - max. bar capacity: 51mm - spindle nose: A2-5 - max. chucking diameter: 165mm - C-Axis: 0,001 ° - Traverses Subspindle: 760mm Upper Turret 1: - number of toolpositions: (2x 12) 24 pos. - Number of driven toolspositions: 12 pos - Shank diameter: 25mm - Drill sha ...

TDC: 1500mm. Diameter: 55mm. Turn diameter: 400mm. Equipped with cooling and various attachments.

With pallet accessories.

Machine is equipped with: - chip conveyor - renishaw probe system

Heidenreich & Harbeck (Hamburg) lathe, type M530

(3x) Lathe chucks (3- and 4-jaw) with loose jaws and accessories.

Specifications: - X-axis: 162mm - Z-axis: 750mm - Y-axis: +/- 50mm - C-axis: yes - B-axis: 670mm - sub spindle speed: 4500rpm - sub spindle motor power: 5,5kW - live tooling: yes - live tooling speed: 3000rpm - live tooling type: BMT-55 Machine is equipped with: - Chip conveyor - Bar feeder - live tooling - y-axis - tooling in turret included - pallet with tooling included

Equipped with Newall digital readout type B 60, quick-change tool holder + 4 adapters, four-jaw chuck 200 mm, change wheels, two fixed and two pedestrian glasses, various turning tools, centers, Wooden storage cabinet.

Equipped with digital counter, fixed seat, quick-change tool holder with 12 adapters, self-centering 4-jaw chuck, ø 250 mm.

Suporte de eixo para direção longitudinal SUI 80

- Work load 6300 Kg- Cross rail adjustment 660 mm- Feed rate cross rail 0 - 400 mm/Min- Feed rate 0 - 3000 mm/Min- Rapid feed 0 - 8000 mm/Min- Central lubrication- Chip conveyor- RAM with Sandvik COROMONT C8- Tooling C8 with double connector- Ca 10 units CAPTO Tool system- 4 extra heavy duty jaws

This 3-axis MORI SEIKI SL-253B MC/1000 was manufactured in 2000. It features a maximum turning diameter of 260 mm and a turning length of 1,035 mm. The machine is equipped with a spindle speed range of 35–3,500 RPM and a robust turret with 12 stations. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI SL-253B MC/1000 horizontal turning machine we have for sale. Contact us for further details.

This 8-axis Citizen BNE-51MSY was manufactured in 2018. It features a maximum bar diameter of Ø 51 mm and a spindle speed of 5,000 min-1. The machine includes 12 turret stations and a slide stroke of 195 mm in the X1 direction. If you are looking to get high-quality turning capabilities, consider the Citizen BNE-51MSY horizontal turning machine we have for sale. Contact us for further details.

- incl. Chip conveyor- incl. Chip crusher- Under power with - incl. spare rollers- Power on hours  23.000 H- Working hours ca 8.000 H

- stationary magnetic particle crack detector- deutroflux uws 2500 for longworkpieces- movable carriage for lengte adjustment- 2 phase shifted AC currents generate magnetic field thus, cracks in every direction are detected- skin effect of AC uniform magnetization and demagnezation even in complicaties workpiece geometrie like cranckshaft- new price EUR 250.000

- Steady rest fixed- Steady rest open- ROHM 3 chuck  Ø 315- ROHM 4 chuck Ø 500- Multi Fix tool holder system with inserts

- No Tailstock- Automatic doors- Tool eye- Chip conveyor

- Work load supported 2 steady 25.000 Kg- Work load not supported 16000 Kg- incl. 4 Chuck 1600 mm- incl. 2 x Steady rest- incl. internal grinding attachment- incl. external grinding attachment- incl. milling saddle support

- Tooling holders included- Live driven Axiaal tools included - Live driven Radial tools included- Chip conveyor- Tool eye arm- Motorized Tailstock- 3 chuck 400 mm with extra2008 jaws

Key data: 20 mm, 205 mm

Star ECAS 20 Torno Automático CNC Swiss Controle CNC Star NICS (Yaskawa-Siemens 840DI) Diâmetro de rotação 20 mm Comprimento de viragem: 205 mm Diâmetro do fuso 20 mm Velocidade do fuso 500-10.000 rpm Motor do fuso 3,7/2,2 kW Indexação mínima do eixo C do eixo principal 0,001 Subspindle do eixo C com indexação mínima 0,001 Número de ferramentas na torre 16x Ferramentas acionadas por torção do fuso 8.000 rpm FMB Turbo 3-26 (3200) LxLxH 6850x1150x1765 mm Se tiver alguma dúvida sobre a máquina, bem como uma consulta marcada para uma visita, por favor contacte-nos por telefone ou e-mail. Sinta-se à vontade para ver os nossos outros anúncios para uma visão geral completa do nosso stock.

- Tooling package with Tool Holders- Axial driven live tools holders- Radial driven live tools holders- Kitagawa B210 3 Power Chuck

Key data: 170 mm, 350 mm, 3250 U/min

Torno de eixo de chumbo e puxador Colchester Master VS 3250 Altura da ponta 170mm Largura central máxima: 750mm Circulação sobre o leito máximo 350mm Circulação via corredor cruzado 196mm Diâmetro do fuso 42mm Fuso D1-4" Velocidades do fuso de 0 a 3250 por meio de VFD e 3 estágios de engrenagem Contramão MT4 Incl.: Ecrã digital em 3 eixos Elesta Suporte de aço de troca rápida Multifix com 7 porta-ferramentas 2 peças de 3 mandíbulas 160 e 250mm com 3 conjuntos de mandíbulas Porta-colares com alavanca e 23 garras 173E Kornerspitse Mandril de perfuração Bomba de Líquido de Arrefecimento Armário de ferramentas com ferramentas e manuais Limpo e mantido
